CYBEX 770T Service Manual page 172

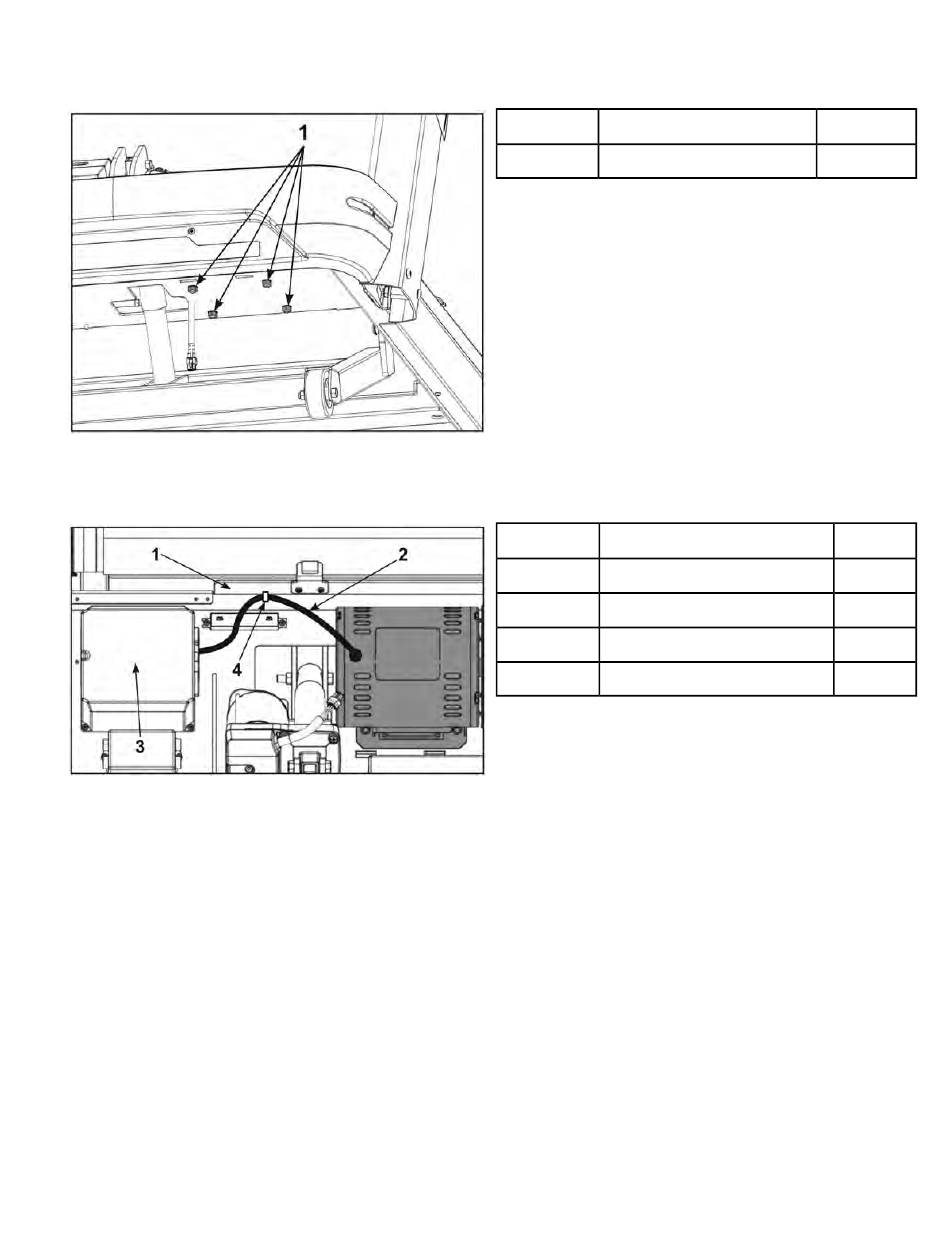

3. Install the four mounting nuts to the drive motor mounting brackets using a 1/2" Socket with a 6"
extension.
Connect drive motor cable
1. Connect the drive motor cable to the motor controller.
2. Secure the drive motor cable to the front roller shield using a cable tie.
Ensure the drive motor cable is pulled straight to the front roller shield and does not interfere with
the motor cover..
Install drive belt
Install the drive belt into the grooves on the drive motor pulley.
Cybex 770T/790T Treadmill Part Number
Page 172 of 261
Item Description
1 Mounting Nut
Item Description
1 Front Roller Shield
2 Drive Motor Cable
3 Motor Controller
4 Cable Tie
Qty.
4
Qty.
1
1
2
1
