CYBEX 770T Service Manual page 14

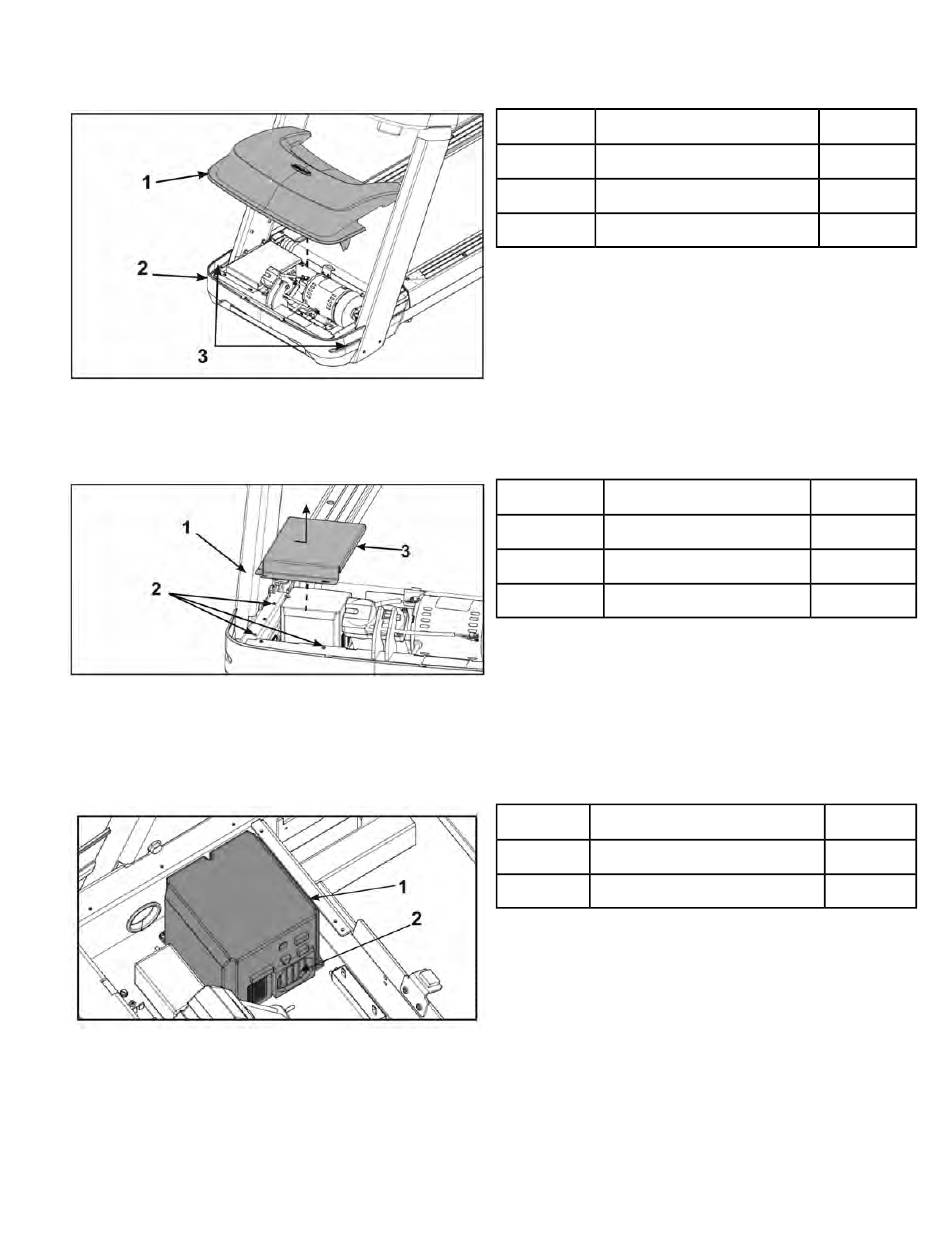

1. Loosen, but do not remove the two front cover screws securing the motor cover using a Phillips
screwdriver.
2. Remove motor cover by lifting vertically.
3. Loosen but do not remove the seven screws securing the sheild to the base using a Phillips
screwdriver.
4. Remove shield by sliding sideways and then vertically off of base.
5. Use a vacuum attachment or hand vacuum to clean the exposed elevation assembly, drive motor,
lower electronics and the surrounding areas.
6. Vacuum the fan and heat sink area of the motor controller.
7. Use a dry cloth for the areas that you can not reach with the vacuum cleaner. If the machine has
not been used for some time or is excessively dirty, use a dry cloth to wipe all exposed areas.
8. Raise the rear of the treadmill and roll it back from its present position to vacuum the floor area
underneath the unit. When finished, return the treadmill to its normal position.
Cybex 770T/790T Treadmill Part Number
Page 14 of 261
Item Description
1 Motor cover
2 Front cover
3 Screws
Item Description
1 Base
2 Screws
3 Shield
Item Description
1 Motor controller
2 Fan and heatsink
Qty.
1
1
2
Qty.
1
7
2
Qty.
1
1
