CYBEX 770T Service Manual page 168

Drive Motor
Tools Required:
• Phillips screwdriver
• Long 3/8" drive socket extension
• 1/2" Socket wrench with a 6" extension
• 9/16" Socket wrench
• 3/4" Socket wrench
• Side cutter
• Cable tie
Incline treadmill
1. Connect the main power cord into the power outlet.
2. Start the treadmill in Manual Mode and incline to 8%.
Disconnect power source
1. Toggle the on/off (I/O) power switch to the off (O) position. The on/off (I/O) power switch is located
under the front end of the unit, or on the front right side panel.
2. Unplug the treadmill from the power outlet.
Remove motor cover
1. Loosen, but do not remove the two front cover screws securing the motor cover using a Phillips
screwdriver.
2. Remove motor cover by carefully lifting vertically. Do not break the four plastic connectors.
Cybex 770T/790T Treadmill Part Number
Shock and electrocution hazard.
• Unplug unit and let sit 10 minutes before cleaning or performing
maintenance.
• Electrical charge can remain in unit after unplugging.
• Keep water and liquids away from electrical parts.
Page 168 of 261

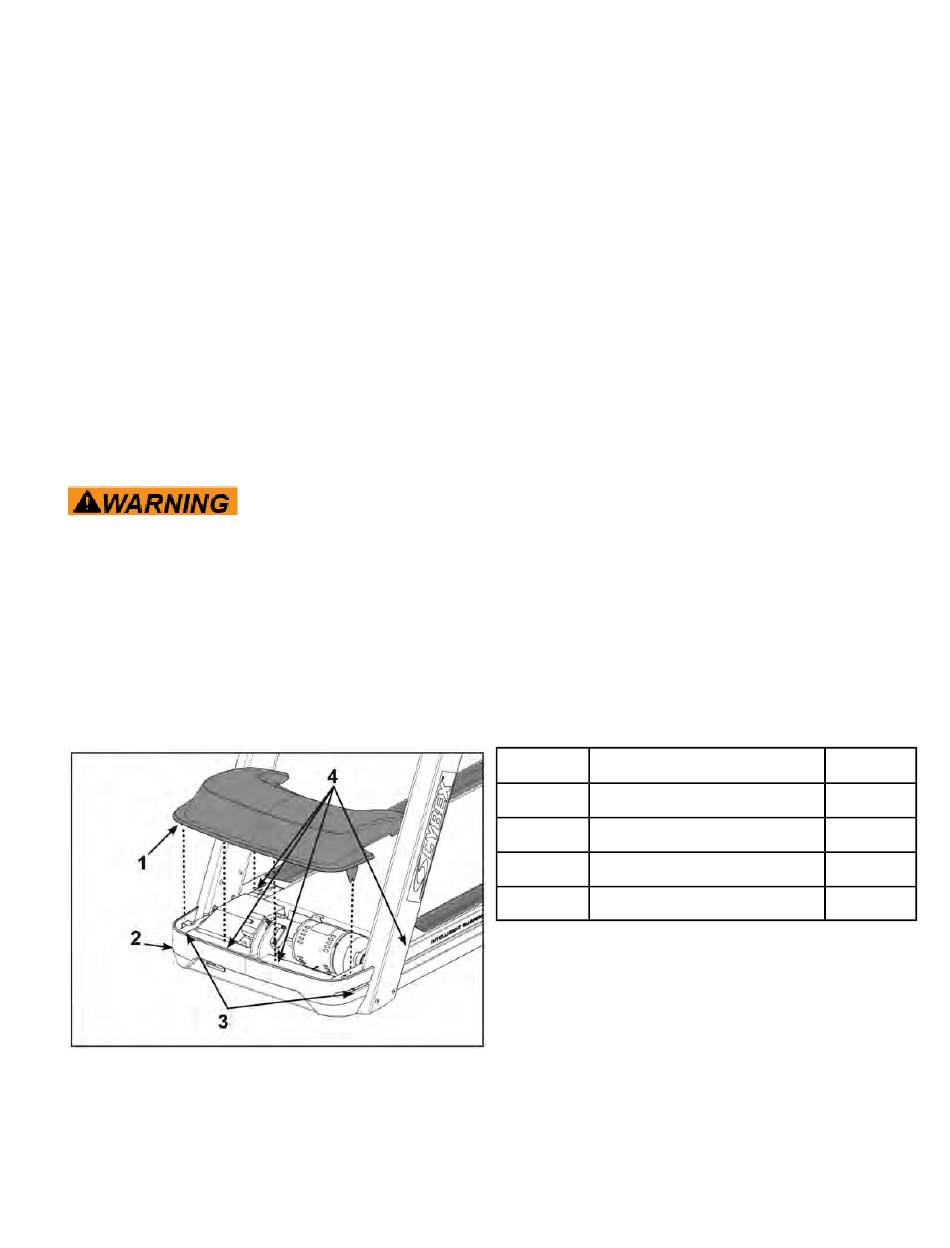

Item Description
1 Motor Cover
2 Front Cover
3 Screws
4 Plastic Connectors
Qty.
1
1
2
4
