Interconnect Module
5

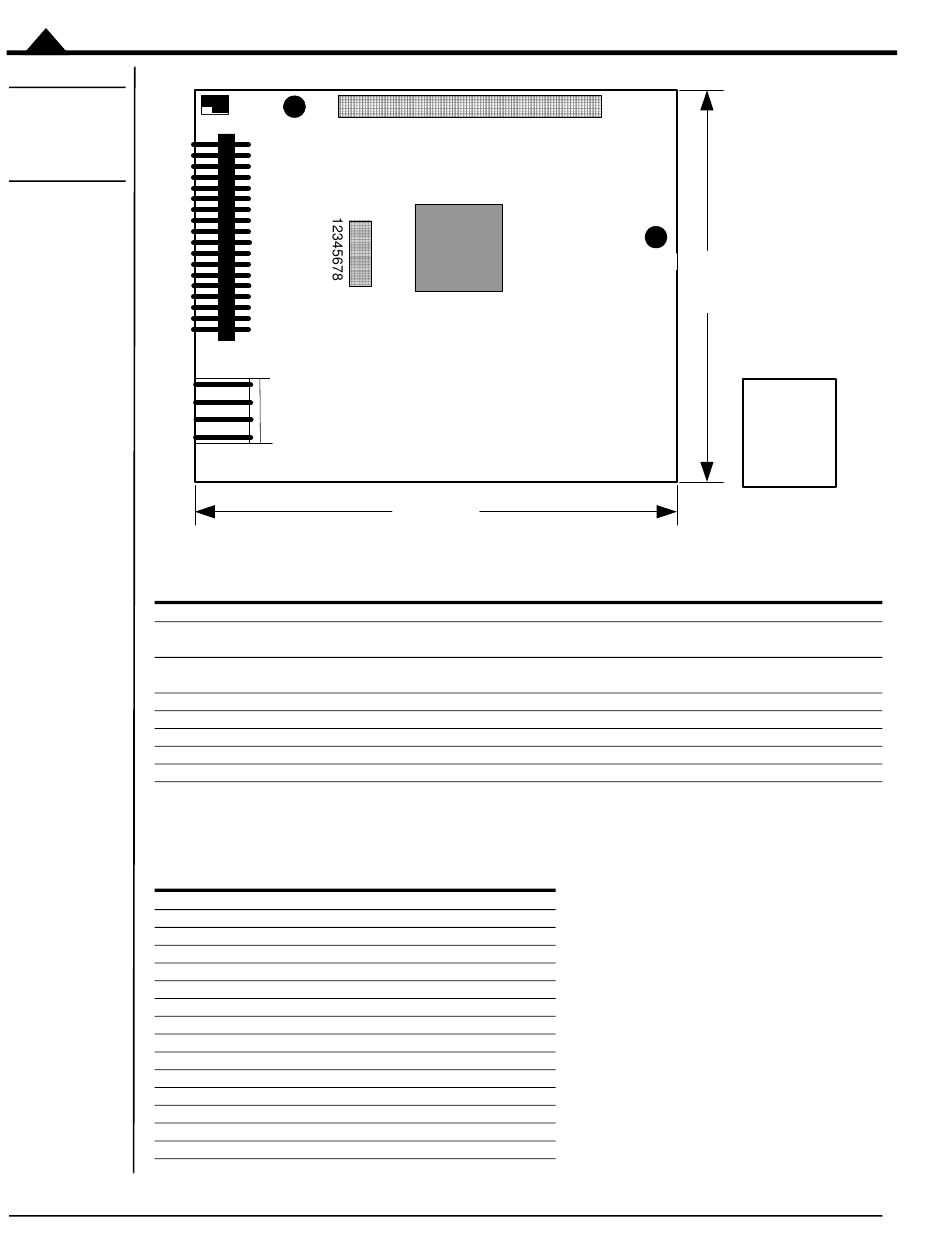

Figure 5-3:
DC-1000
location of
components
The names and descriptions of the main components of the DC-1000 are detailed in the following table:
Label
DC1
D1, D2
JP1
DC4
PC1
SW1
DC7
5.3.2
The pinouts for connector DC4 are outlined in the following table:
IDC Pin No. Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
94
JP1
D1
On
SW1
DC4
PC1
Name Description
Parallel connector This socket connects to the parallel input connector of the Prodigy/CME PC/104
card.
Mounting holes These holes (2) are in direct alignment with the mounting holes on the Prodigy/CME
PC/104 card, and are used for the mounting screws and stand-offs.
Jumper This jumper selects either 5V or 12V supply voltage. 5V DC is the default setting.
Encoder connector The encoders are connected to this pin block.
Power connector Use this pin block to connect a small Molex connector for DC power.
DIP switches This block of DIP switches is used to set encoder resolution for each axis.
PLD This is the processor for the DC-1000.
DC-1000 Connections
+5 or +12 VDC to Encoder
Clock 1+
Clock 1-
GND
DIN 1+
DIN 1-
+5 or +12 VDC to Encoder
Clock 2+
Clock 2-
GND
DIN 2+
DIN 2-
No connection
No connection
DC1
DC7
[69.0]
2.72
Axis
1
1
1
1
1
1
2
2
2
2
2
2
D2
[59.0]
2.32
KEY:
[mm]
inch
