5.Interconnect Module
In This Chapter


IM-1000 Interconnect Module


IM-600 Interconnect Module

DC-1000 SSI Option Card
5.1 IM-1000 Interconnect Module
The IM-1000 is an interconnect module which assists in the set up and configuration of Prodigy/CME PC/104 cards,
and also provides complete options for external connections. All wiring to and from the Prodigy/CME PC/104 card,
the amplifiers, power supplies, IOs and encoder feedback may easily be connected to this central point.
Pin 1
Pin 1
[108.0]
4.3
Connector Description
F1 1 Amp fuse for power supply
F2 1 Amp fuse for power supply
Prodigy/CME PC/104 User's Guide
[160.0]
6.3
J5
J4
J1
J3
JP5 JP1 JP2 JP3 JP4
Screw terminals
[145.0]
5.7
S1
[92.5]
3.6
F2
F1
KEY:
[mm]
inch
[4.0]
0.157
diameter
5

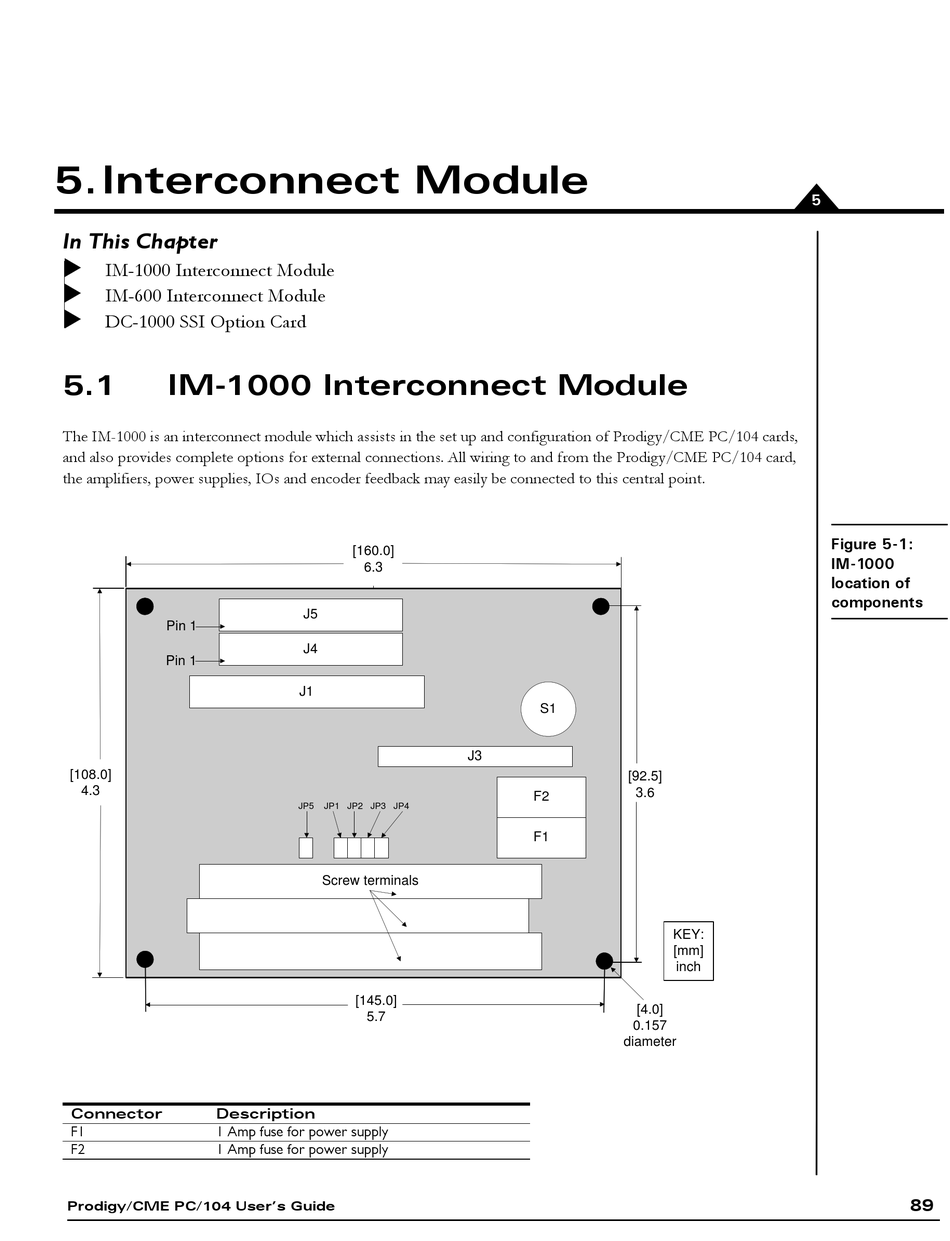

Figure 5-1:
IM-1000
location of
components
89
