Mechanical Dimensions; User I/O Memory Map; Prodigy/Cme Mechanical Dimensions - Performance Motion Devices Prodigy Series User Manual

Electrical Reference
4
4.6

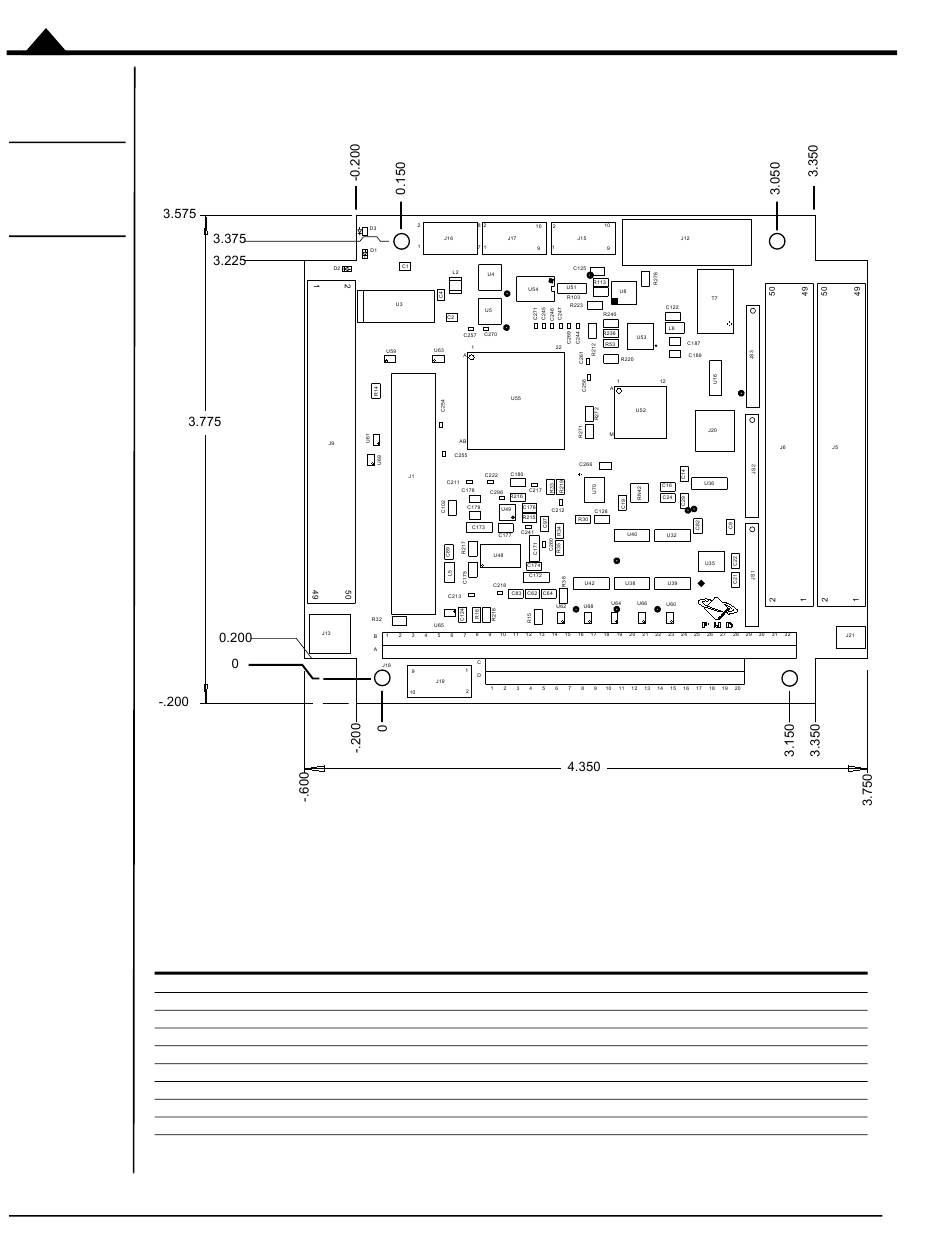

Figure 4-5:
Prodigy/CME
mechanical
dimensions
4.7
The Magellan Motion Processor reserves the sector from address 1000h to 10FFh in peripheral space for user-defined
I/O devices. The Prodigy/CME PC/104 card uses this sector as shown in the following table:
Address
1000h
1001h
1002h
1003h
1004h
1005h
1006h - 100Fh
1010h - 101Fh
86

Mechanical Dimensions

User I/O Memory Map

Device
General Purpose I/O
Amplifier Enable register
Reset Monitor register
Reserved
Watchdog register
Reserved
Reserved
DC-1000
Description
Includes the 8 digital inputs and 8 digital outputs
Also includes the DAC output enable for information
See Section 2.3.6, "Reset Monitor," on page 39.
See Section 2.3.4, "Card Watchdog Timer," on page 39.
Includes the SSI clock, resolution, and absolute position registers
