Installation
1
22

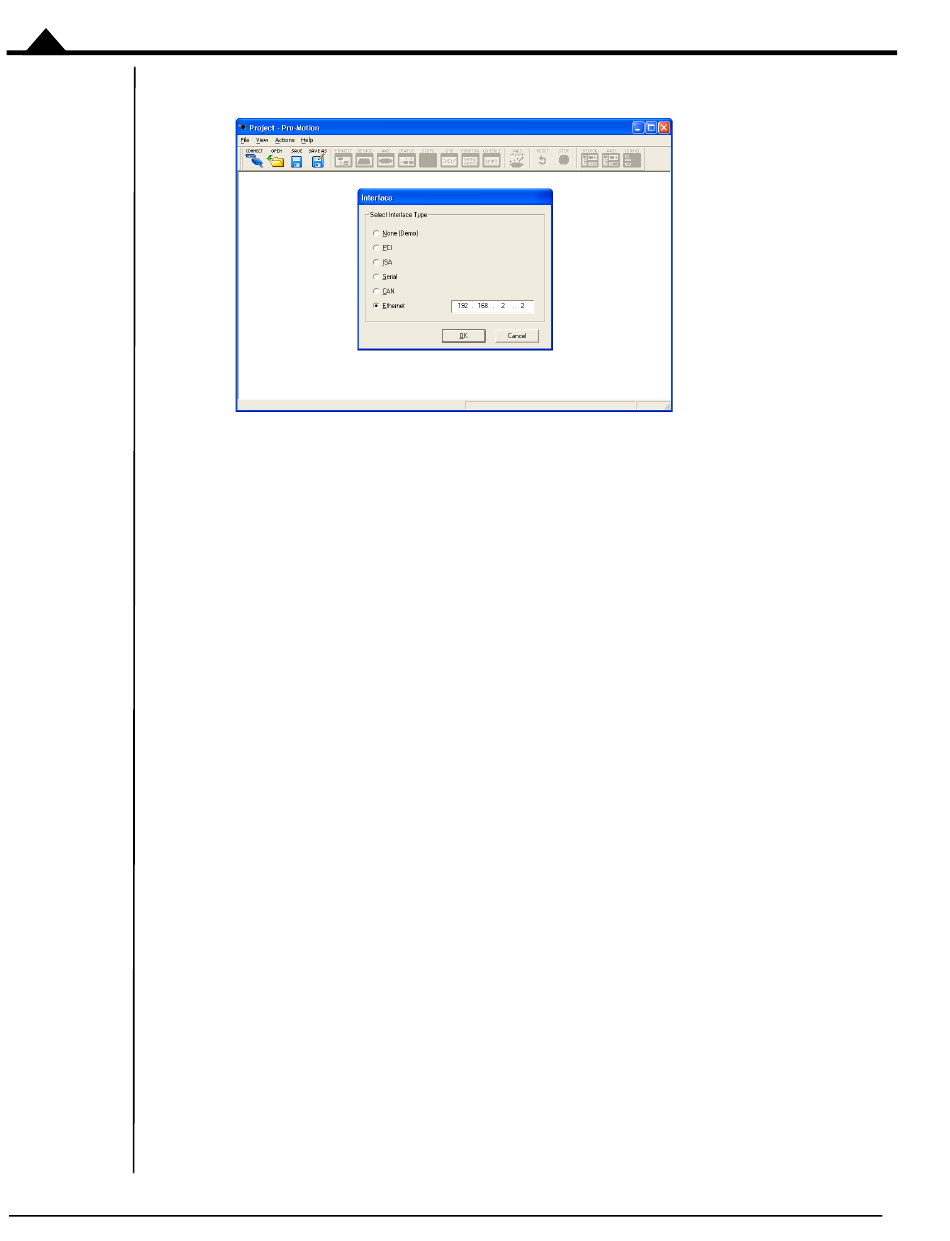

When Pro-Motion is launched you will be prompted with an Interface selection window. A typical screen
view when first launching Pro-Motion appears below.
3 Click the Connect icon on the toolbar.
Alternatively, on the File menu, click Connect.
The purpose of the Interface dialog box is to indicate to Pro-Motion how your Prodigy/CME PC/104
card is connected to the PC. It provides various selectable communication options such as PCI, serial,
CANbus, Ethernet.
4 Click Serial, and then click OK.
The Serial Port dialog box displays with default communication values of 57,600 baud, no parity, 1 stop
bit, and point to point protocol.
5 Click OK without changing any of these settings.
Prodigy/CME PC/104 User's Guide
