5.2

IM-600 Interconnect Module

The IM-600 is an interconnect module which assists in the set up and configuration of the Option Connector and the
Pulse & Direction Connector for all versions of Prodigy cards by providing jack screw 'breakout' functionality, making
it easy to hand-connect motion peripherals.
The following table summarizes the functionality of the various components of the IM-600 module.
Connector Description
J1 68-pin SCSI-style connector
J2 50-pin dual header connector
J3 20-pin dual header connector
J4 & J5 30-pin dual header connectors
J6/J7 72-pin jack screw array
J8 21-pin Jack screw array
The enclosure of the card is a standard Phoenix DIN rail mounting system. Alternatively, the enclosure may be
removed, and the card mounted to other systems via the 3.5 mm mounting holes located on the corners of the card.
The table below illustrates the connections from the PC/104, PCI, and Stand-Alone versions of the Prodigy card's
Option Connector and Pulse & Direction Connector, to the IM-600's connectors. In all cases the jack screw pins are
Prodigy/CME PC/104 User's Guide
IM-1000
Description
J3
09 AmpEnable4
07 AxisOut1
05 AxisOut2
03 AxisOut3
01 AxisOut4
All even-numbered pins GND
Interconnect Module

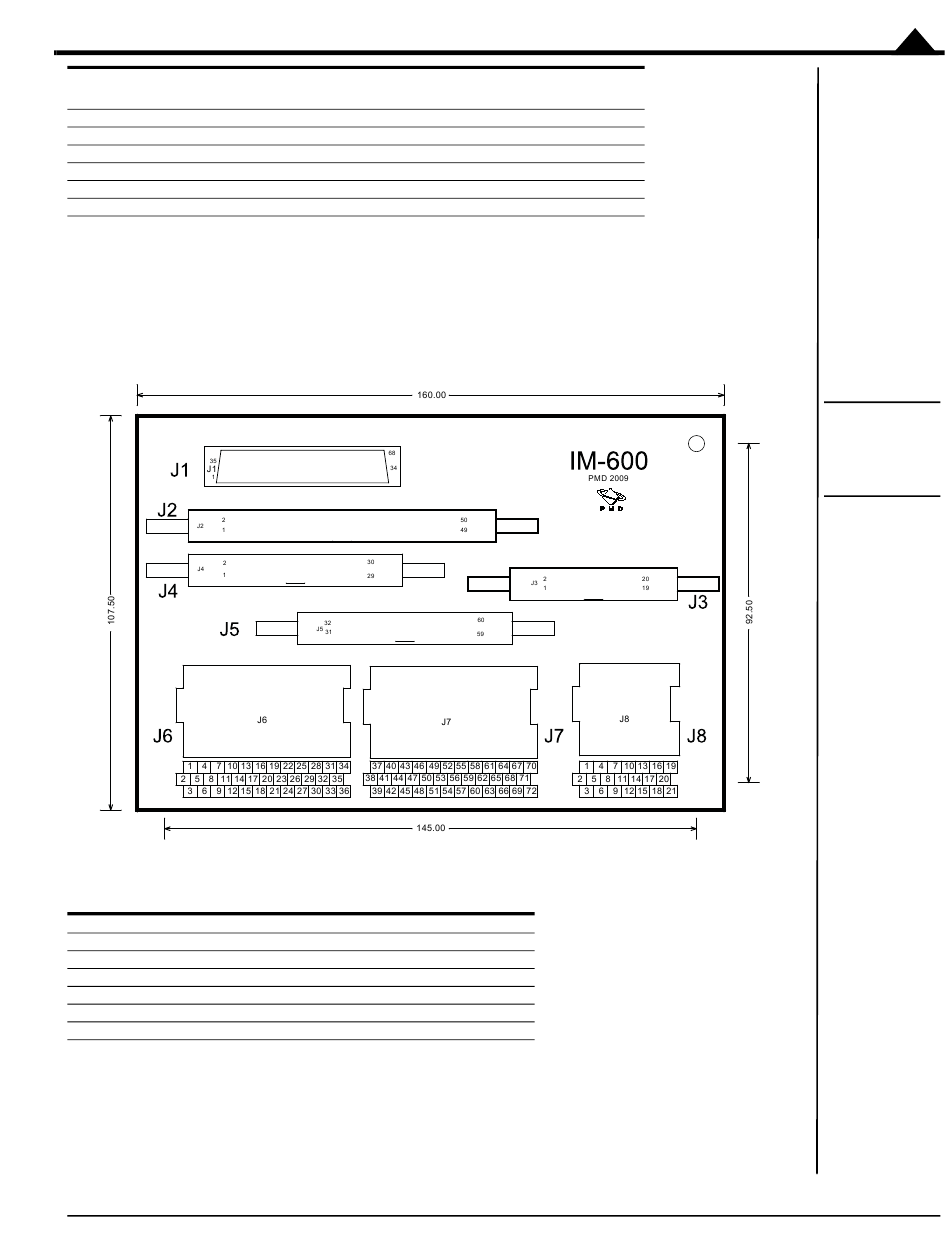

Figure 5-2:
IM-600
location of
components
5
