Installation
1
1.11.2 Changing the Ethernet Parameters of the
To change the Ethernet parameters:
24
Prodigy/CME PC/104 Card
1 With serial communications functioning properly, click the Device toolbar button.
The Device window appears.
2 Click Network I/O.

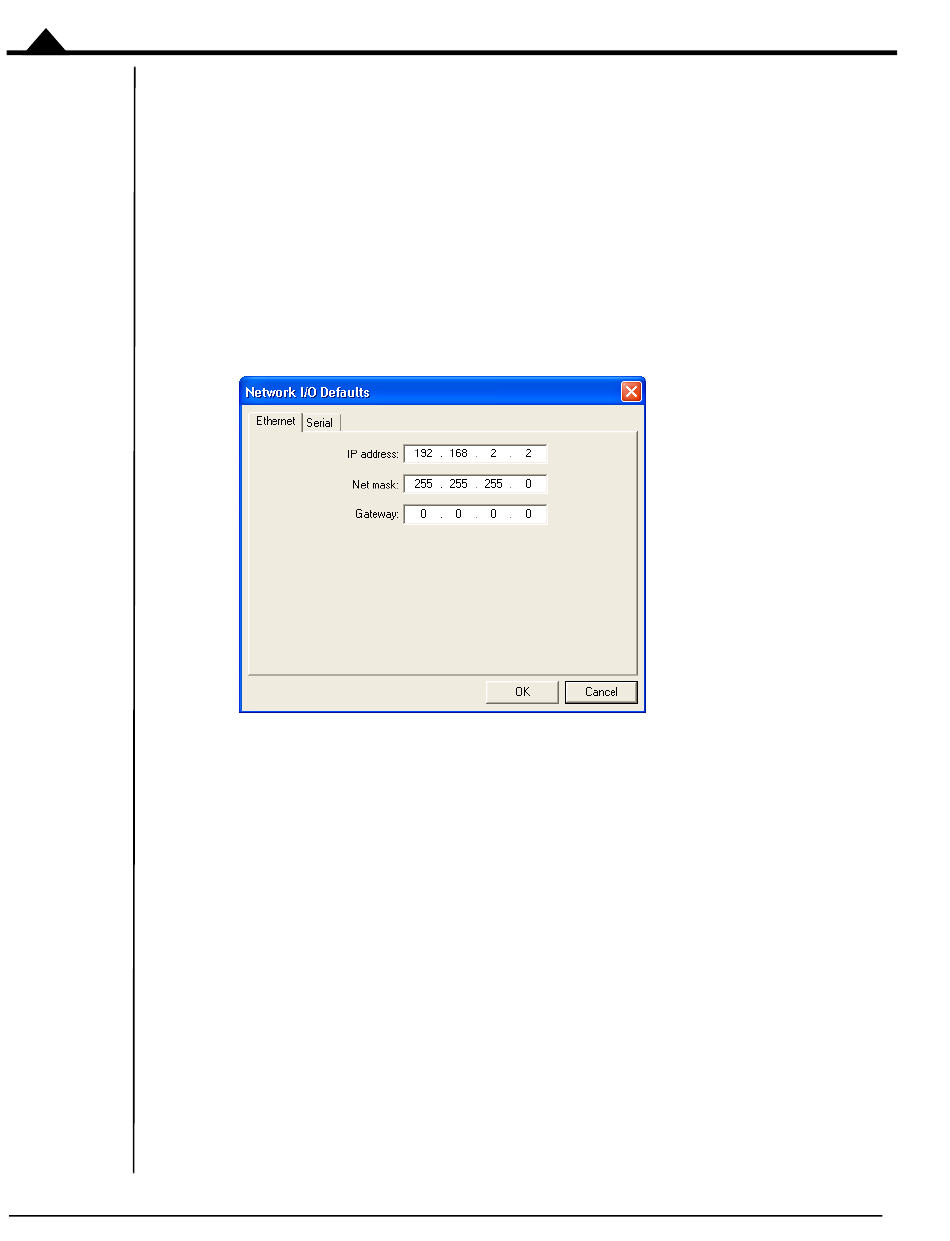

The Network I/O Defaults dialog box appears.
3 Click the Ethernet tab.
The Ethernet tab appears with data entry fields for the IP Address, the Net Mask, and the Gateway.
For a typical installation, you will not change the Net mask and Gateway default values, but you must
specify a valid, and unique, IP Address for the card to be located on your Ethernet network. If you are
not sure what IP addresses are free and available for your Ethernet network, contact your system
administrator.
4 Enter the IP Address in the corresponding data field as well as the net mask and gateway, if this is
required for your network.
5 Click OK to store as the power on default.
6 Click the Reset toolbar button.
After the card is reset, it uses the default parameters that you specified.
7 Connect the Ethernet cable.
See Section 1.10, "Applying Power," on page 20 for details.
The card is now ready for Ethernet communications.
