User Manual - DPM1-P Series Panel Meters

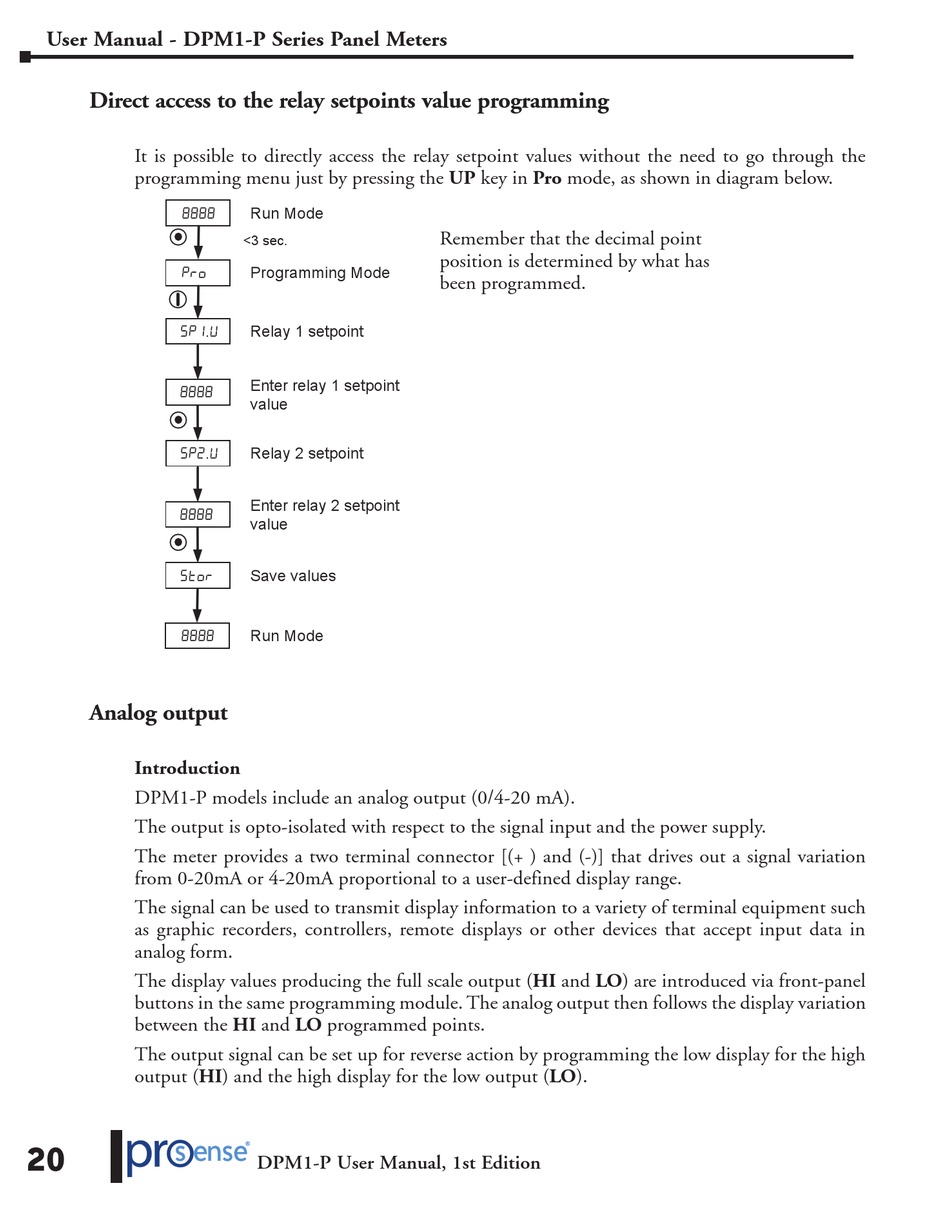

Direct access to the relay setpoints value programming

It is possible to directly access the relay setpoint values without the need to go through the
programming menu just by pressing the UP key in Pro mode, as shown in diagram below.


.

.




Analog output

Introduction
DPM1-P models include an analog output (0/4-20 mA).
The output is opto-isolated with respect to the signal input and the power supply.
The meter provides a two terminal connector [(+ ) and (-)] that drives out a signal variation
from 0-20mA or 4-20mA proportional to a user-defined display range.
The signal can be used to transmit display information to a variety of terminal equipment such
as graphic recorders, controllers, remote displays or other devices that accept input data in
analog form.
The display values producing the full scale output (HI and LO) are introduced via front-panel
buttons in the same programming module. The analog output then follows the display variation
between the HI and LO programmed points.
The output signal can be set up for reverse action by programming the low display for the high
output (HI) and the high display for the low output (LO).
20
Run Mode
<3 sec.
Programming Mode
Relay 1 setpoint
Enter relay 1 setpoint
value
Relay 2 setpoint
Enter relay 2 setpoint
value
Save values
Run Mode
DPM1-P User Manual, 1st Edition
Remember that the decimal point
position is determined by what has
been programmed.
