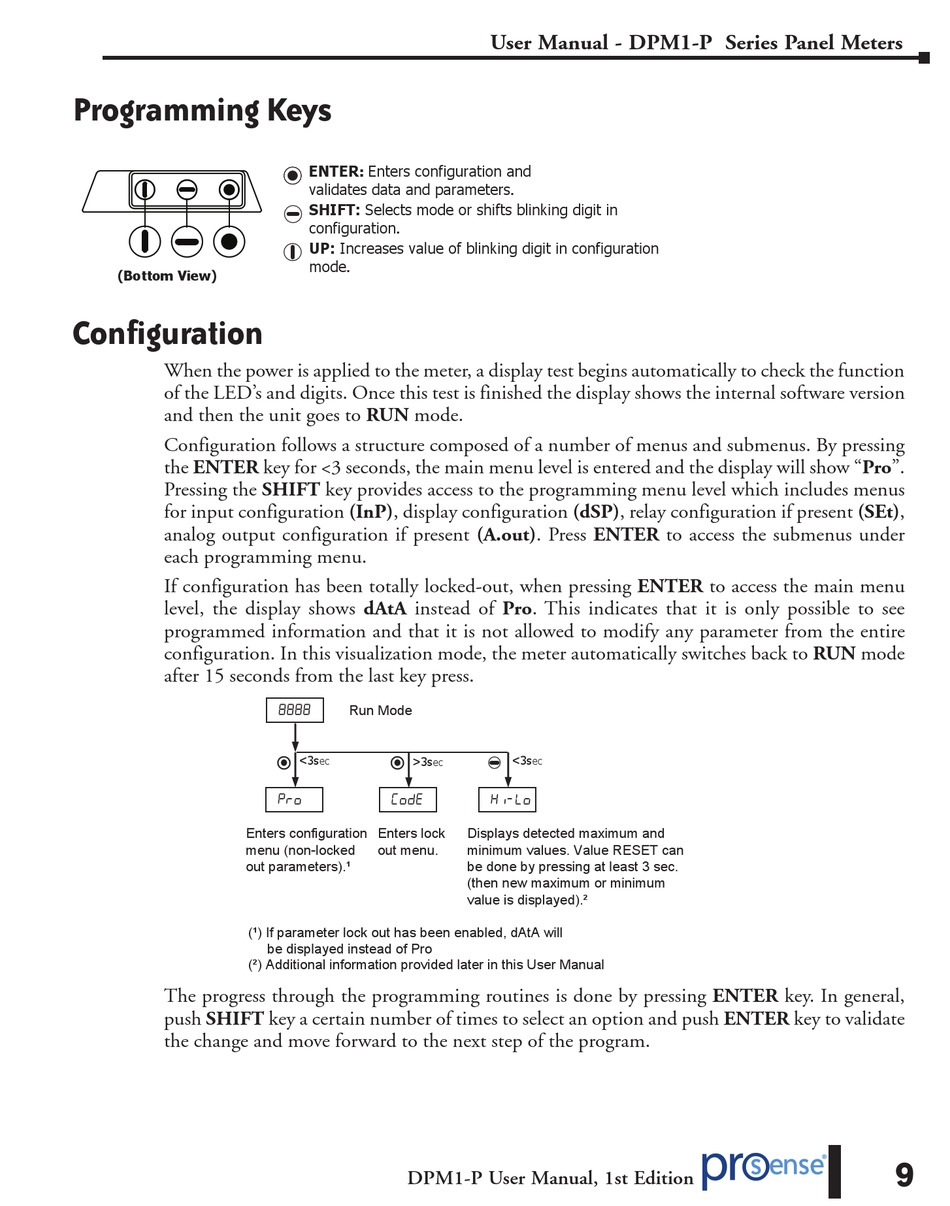

Programming Keys

(Bottom View)

Configuration

When the power is applied to the meter, a display test begins automatically to check the function
of the LED's and digits. Once this test is finished the display shows the internal software version
and then the unit goes to RUN mode.
Configuration follows a structure composed of a number of menus and submenus. By pressing
the ENTER key for <3 seconds, the main menu level is entered and the display will show "Pro".
Pressing the SHIFT key provides access to the programming menu level which includes menus
for input configuration (InP), display configuration (dSP), relay configuration if present (SEt),
analog output configuration if present (A.out). Press ENTER to access the submenus under
each programming menu.
If configuration has been totally locked-out, when pressing ENTER to access the main menu
level, the display shows dAtA instead of Pro. This indicates that it is only possible to see
programmed information and that it is not allowed to modify any parameter from the entire
configuration. In this visualization mode, the meter automatically switches back to RUN mode
after 15 seconds from the last key press.
Enters configuration
menu (non-locked
out parameters).¹
(¹) If parameter lock out has been enabled, dAtA will
(²) Additional information provided later in this User Manual
The progress through the programming routines is done by pressing ENTER key. In general,
push SHIFT key a certain number of times to select an option and push ENTER key to validate
the change and move forward to the next step of the program.
ENTER Enters configuration and
:
validates data and parameters.
SHIFT: Selects mode or shifts blinking digit in
configuration.
UP: Increases value of blinking digit in configuration
mode.
 Run Mode
<3s >3s
ec
ec
 
Enters lock
out menu.
be displayed instead of Pro
DPM1-P User Manual, 1st Edition
User Manual - DPM1-P Series Panel Meters
<3s
ec

Displays detected maximum and
minimum values. Value RESET can
be done by pressing at least 3 sec.
(then new maximum or minimum
value is displayed).²
9
