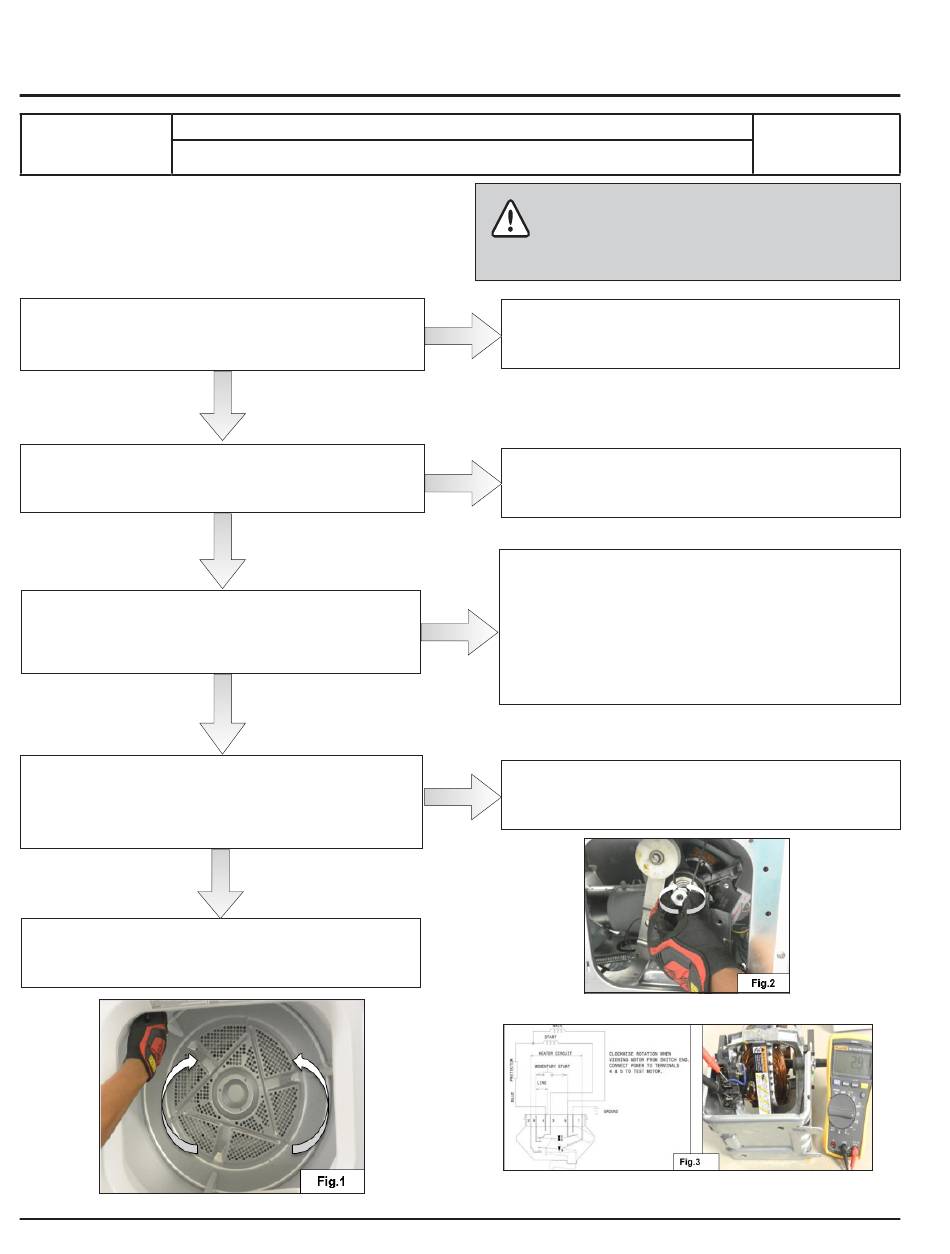

E53: Motor Fault- Motor Stopped in the middle of a cycle

E53
Motor Protector Open, Laundry Load too heavy and wiring problem.
Checks to perform:
Check the power supply is as per product specifications.
Check there is overload of laundry in dryer?
Remove the laundry and check whether the drum
turns freely without posing any resistance. Is the drum
having any difficulty in rotating? (See Fig .1)
Detach the connector from the motor and measure
the resistance between terminals (5 & 4) Check
Resistance value are in between "2.6 Ω to 3.2 Ω" ? (See
Fig. 3)
Check / Replace the wiring and repeat the Diagnostic
Cycle to check for any further alarms.
Y
E
S
N
O
N
O
Y
E
S
WARNING
Check that all the connectors are correctly inserted
Provide required power supply and repeat the
NO
Diagnostic Cycle to check for any further alarms.
Make the laundry as per product specification and repeat
YES
the Diagnostic Cycle to check for any further alarms.
Check if the friction is caused by the motor or by
the tub bearings (See Fig. 2). Replace the defective
component. After clearing any obstacles wait till the
motor is cool because thermal protector may take 30
YES
minutes to reset (thermal protector may be tripped
because of motor overheating). Repeat the Diagnostic
Cycle to check for any further alarms.
Replace the Motor and repeat the Diagnostic Cycle to
NO
check for any further alarms.
