3.2 Control via fieldbus interface

The example below shows a typical configuration of the digital inputs and outputs provided with the drive
regulation card and an assignment of process data on a fieldbus interface card; the latter must be installed in
slot 3 dedicated to expansion cards.
Since process data are assigned in the parameters in the drive COMMUNICATION menu, the settings
described below are applicable regardless of the type of fieldbus used.
The digital input signals must be set as shown in the figure in the DIGITAL INPUTs menu, where they are
assigned to the regulation card terminals or to the control word bits (Word decomp).
The digital output signals must be set as shown in the figure in the DIGITAL OUTPUTs menu, where they
are assigned to the regulation card terminals or to the status word bits (Word comp); an application status
word can also be mapped in the process channel (see IPA 12036 Status Word Mon), bringing together all
the digital output signals defined in the DIGITAL OUTPUTs menu so that the Word comp can be used for
other signals.

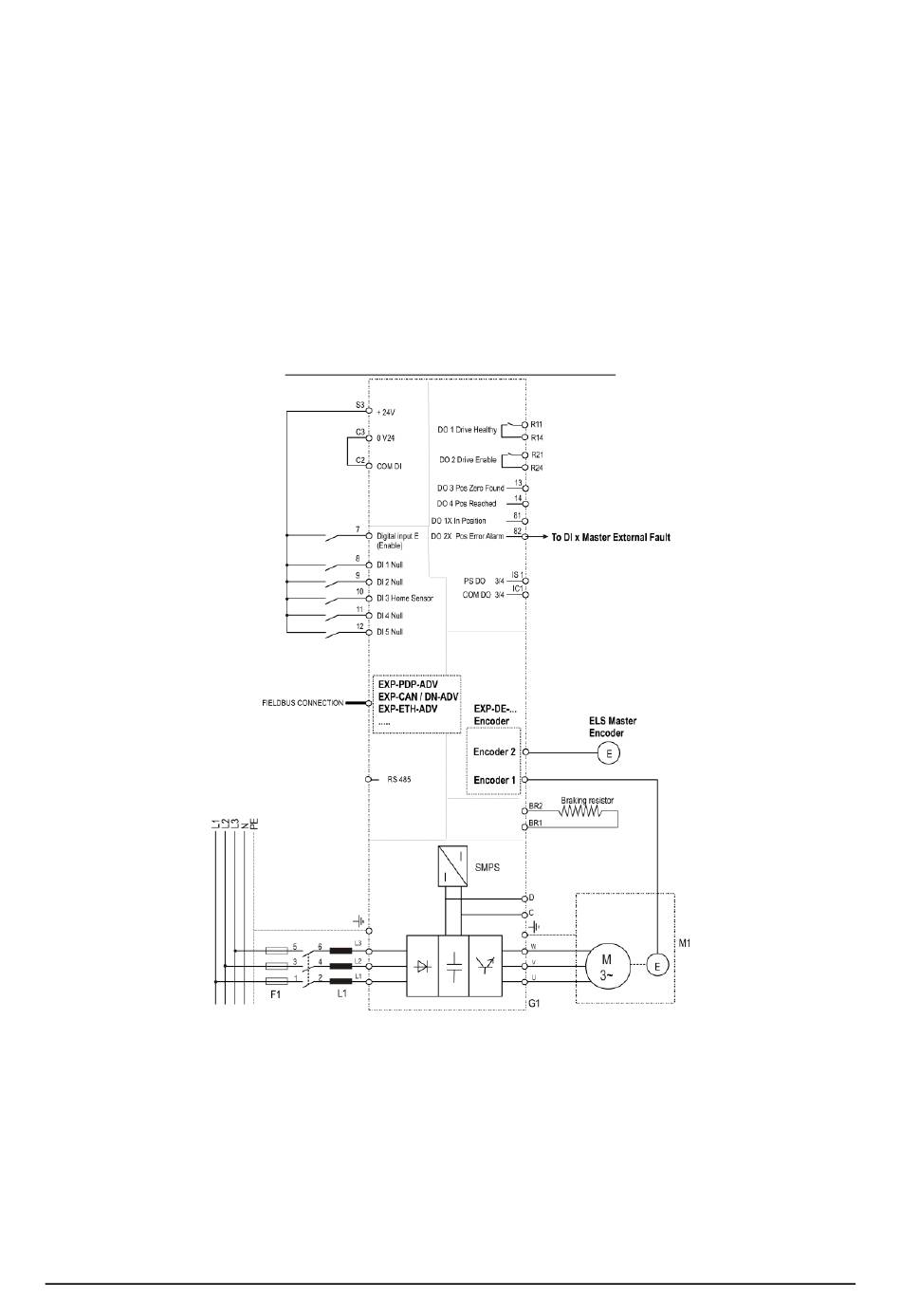

Figure 3.2: Layout of I/Os ADV200 with EXP-...Fieldbus
