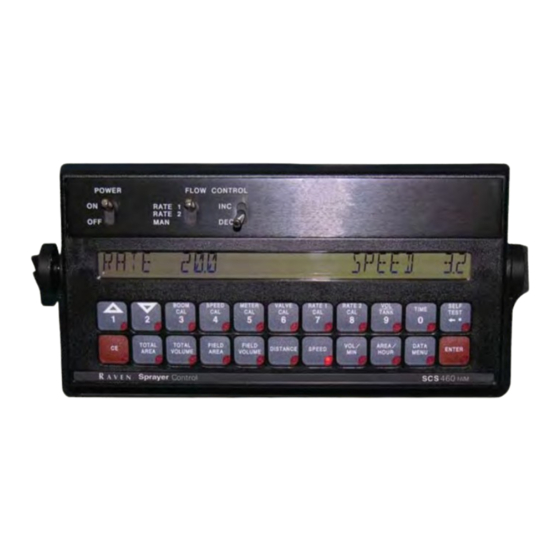

Raven SCS 460 Installation & Service Manual
  1. Manuals
  2. Brands
  3. Raven Manuals
  4. Control Panel
  5. SCS 460
  6. Installation & service manual

Raven SCS 460 Installation & Service Manual

Serial interface
Hide thumbs Also See for SCS 460:

Advertisement

Quick Links

Download this manual
Installation & Service Manual
SCS 460 Serial Interface

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCS 460 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Raven SCS 460

Summary of Contents for Raven SCS 460

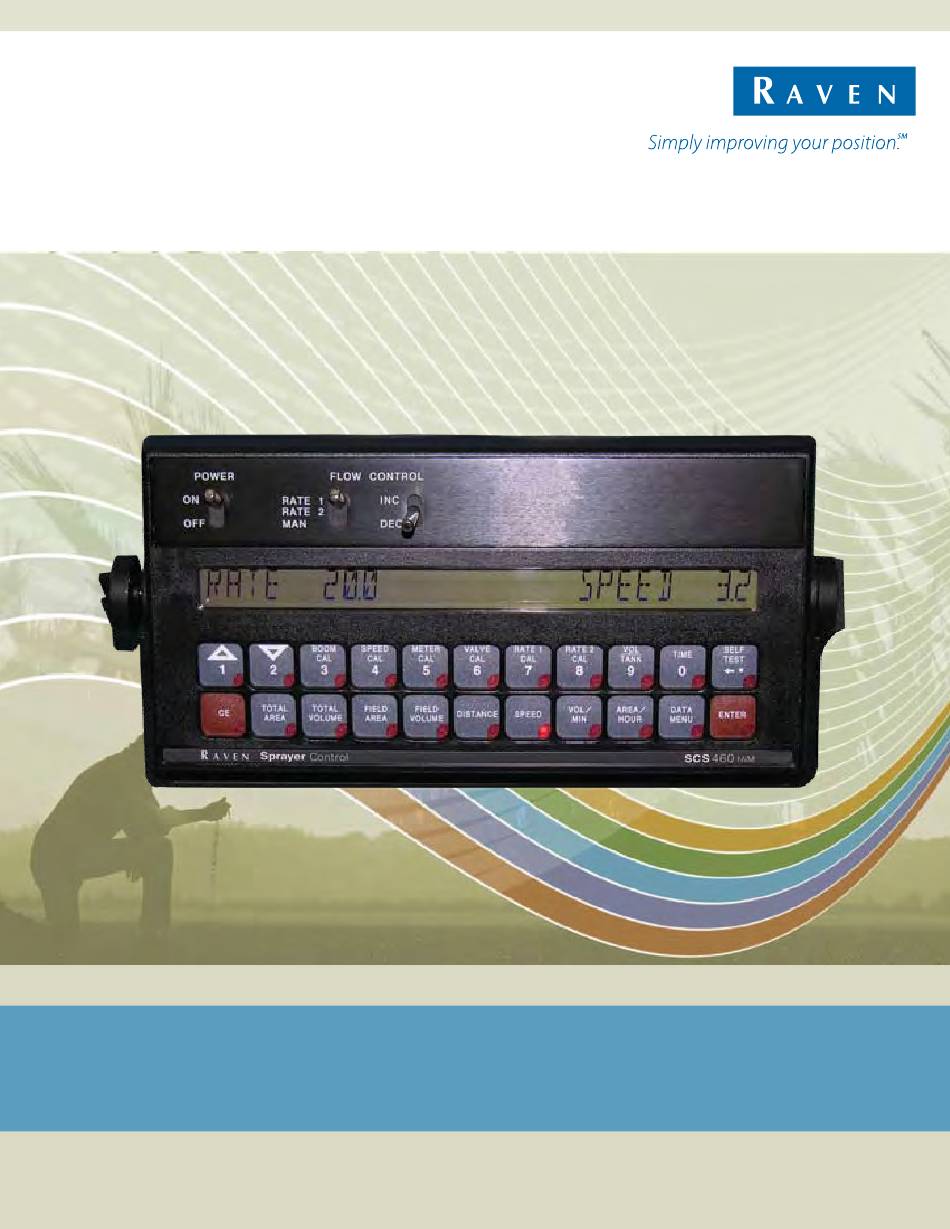

  • Page 1 Installation & Service Manual SCS 460 Serial Interface...
  • Page 2 Raven Industries shall not be held responsible or liable for the effects of atmospheric conditions and sunspot activity on the performance of our products. Raven Industries cannot guarantee the accuracy, integrity, continuity, or availability of the GPS signal from the U.S.
  • Page 3 ..................9 Chapter 3 Calibration Card..............Introduction ........................11 Chapter 4 Installation................Sensor Installation ......................13 Raven Radar Speed Sensor ...................13 Wheel Drive Speed Sensor ..................14 Phoenix 10 GPS Speed Sensor ................16 Flow Meter Installation ....................17 Mounting the Flow Meter ..................17 Install the Pressure Transducer - Optional .............17...
  • Page 4 Recalibrating the Flow Meter ................. 43 Speed Sensor Cables ....................44 Testing Speed Sensor Extension Cables ............... 44 Troubleshooting ......................45 Console Issues ...................... 45 Rate Control Issues ....................46 Chapter 8 Replacement Parts ..............SCS 460 Serial Interface Installation & Service Manual...
  • Page 5 Do not operate the SCS 460 Serial Interface system while under the influence of alcohol or an illegal substance. • Remain in the operator’s position in the machine at all times when the SCS 460 Serial Interface system is engaged. •...
  • Page 6 CAUTION Hydraulic Safety • Raven Industries recommends that appropriate protective equipment be worn at all times when working on the hydraulic system. • Never attempt to open or work on a hydraulic system with the equipment running. Care should always be taken when opening a system that has been previously pressurized.
  • Page 7 The operator sets the target volume per area to be applied, and the SCS 460 automatically maintains the flow. A manual override switch allows the operator to manually control the flow for spot-spraying. The actual volume per area being applied is displayed at all times on the console.
  • Page 8 1 kPa = 0.145 psi • 1 meter (m) = 3.281 feet • 1 kilometer (km) = 0.621 miles • 1 inch = 25.4 mm or 2.54 cm • 1 mile = 1.609 km SCS 460 Serial Interface Installation & Service Manual...
  • Page 9 Calculate the Speed Cal Value Raven Radar Only The initial Speed Cal value for Raven radar is 598 [152]. After the initial console programming has been performed, this value may be adjusted to optimize the system’s performance. Manual No. 016-0159-823...
  • Page 10 After calculating the Speed Cal value, the number must be adjusted according to the actual number of magnets used. For Example: Normal Number of Magnets Calculated Speed Cal Adjusted Speed Cal Actual Number of Magnets 1200 SCS 460 Serial Interface Installation & Service Manual...
  • Page 11 Introduction Calculate the Meter Cal Value No calculation of the Meter Cal value is necessary, since the flow meter calibration value is stamped on the tag attached to each flow meter. Locate this number and write it down for future reference when programming the console.
  • Page 12 Calculate the Rate 1 and Rate 2 Cal Values Determine the application rate at which the chemical is to be sprayed, and then consult with your Raven dealer to verify that the spray nozzles are capable of applying at that rate. To determine which spray nozzles to use...
  • Page 13 Introduction For Example: Nominal Application Pressure PSI (kpa) Target Application Rate GPA (lit/ha) Target Speed MPH (km/h) Nozzle Spacing inches (cm) 20 GPA x 5.2 MPH x 20 inches .35 GPM 5,940 Based on these calculations and a PSI of 30, tip XR8004 should be selected since it comes closest to providing the desired output.
  • Page 14 Chapter 2 SCS 460 Serial Interface Installation & Service Manual...
  • Page 15 C alibration Card CHAPTER C h a p t e r 3 Introduction Located on the next page is a card that may be used to record the machine’s calibration values. Write the calibration numbers in pencil so that they may be revised if necessary. Cut on the dotted line, fold, and insert the card into the plastic envelope provided for your convenience.
  • Page 16 Chapter 3 SCS 460 Serial Interface Installation & Service Manual...
  • Page 17 C h a p t e r 4 Sensor Installation Raven Radar Speed Sensor Note: Raven Industries recommends the installation of a large, heavy mounting bracket (P/N 107-0159- 693) on the machine’s frame for mounting the radar speed sensor. Radar Mounting Locations FIGURE 1.
  • Page 18 Measure in one inch from the rim on each end of the lines and mark the wheel at each point. Drill a 1/2” hole on each of the four marks. Note: The distance between each set of drilled holes must be equal within 1/8” [3 mm] to ensure system accuracy. SCS 460 Serial Interface Installation & Service Manual...
  • Page 19 Installation Rim Drilling for Six Hole Wheel Stud Patterns - Optional This section is required only on wheels that do not have pre-punched mounting holes. If your machine has the pre-punched mounting holes, proceed to the Mounting the Wheel Drive Speed Sensor section. Six Hole Stud Pattern FIGURE 4.
  • Page 20 Turn off all equipment on the machine to avoid interference with the speed sensor setup. Apply power to the speed sensor by connecting the white wire to a clean ground and the red wire to a clean switched power source. SCS 460 Serial Interface Installation & Service Manual...
  • Page 21 Installation Flow Meter Installation Mounting the Flow Meter Flow Meter Installation Diagram FIGURE 8. Note: All flow through the flow meter must go to the boom sections only. Ensure there are no return, agitation, or sparge lines to the tank or pump after the flow meter. Mount the flow meter in the area of the boom valves (horizontal to the ground) using the supplied bracket.
  • Page 22 Install the control valve on the main hose line between the flow meter and the booms, with the motor in the upright position. Refer to the diagram above. Connect the yellow and green 2-pin connector of the flow control cable to the control valve. SCS 460 Serial Interface Installation & Service Manual...
  • Page 23 Installation Alternate Bypass Line Plumbing System Alternate Bypass Line Plumbing System Diagram FIGURE 10. Note: This plumbing schematic applies only to applications of less than 3 GPM [11 lit/min]. For flow of 3 GPM [11 lit/min] or greater, the motorized control valve is installed on the main hose line. Refer to the Install the Control Valve section on page 18 for the main hose line plumbing procedure.
  • Page 24 Mount the SCS 460 console to a secure area inside the machine’s cab. Note: The SCS 460 console should be mounted in the machine’s cab so that the machine operator has easy access to it. Connect the female end of the console control cable into the back of the console.
  • Page 25 Installation Console Cabling Diagram FIGURE 11. Manual No. 016-0159-823...
  • Page 26 If the system will not be used for an extended period of time (for example, two weeks), be sure to disconnect the SCS 460 battery wires. If the wires are not disconnected and the SCS 460 is only turned OFF, the system will continue to draw 0.25 milliamperes of current to maintain information stored in the console computer, draining the battery.
  • Page 27 Calibration Important: The SCS 460 console requires the selection of volume rate (US, SI, or TU), speed sensor type (SP1 or SP2), and valve type (C-SD - standard valve, C-F - fast valve, C-FC - fast close valve, C-P - PWM valve, or C-PC - PWM close valve). Hold the SELF TEST key to review the selections.
  • Page 28 Chapter 5 Console Features SCS 460 Serial Console FIGURE 2. SCS 460 Serial Interface Installation & Service Manual...
  • Page 29 Console Programming and Calibration Button Definitions Calibration Buttons The calibration buttons are used to enter data into the console when calibrating the system. Refer to the table below for the button names and functions. Button Name Function BOOM CAL Length of the boom. Select the boom number by using the up/down arrow keys. SPEED CAL Determined by speed sensor.
  • Page 30 Press ENTER. The message “CAL SELF TEST 00” will appear in the console’s display. Press the BOOM CAL button. The message “CAL BOOM 1 CAL” will appear in the console’s display. Enter the boom width that was previously calculated. SCS 460 Serial Interface Installation & Service Manual...
  • Page 31 Refining the Speed Cal Value - Raven Radar Only The initial Speed Cal value when using Raven radar is 598 [152]. However, after initial console programming, it may be necessary to refine this number to improve the system’s performance. Complete the following steps to refine the speed cal value: Set the boom POWER switches to ON.
  • Page 32 Complete the following steps to refine the speed cal value: Verify the SCS 460 console is powered ON. Press the DISTANCE button on the SCS 460 console. Enter 0 as the value. Drive 1 mile [1 km].
  • Page 33 Console Programming and Calibration Programming Additional System Data Although it is not required for system operation, data may be entered in the VOL TANK and TIME submenus. Vol Tank Press the VOL TANK button. Press ENTER. Enter the estimated volume of product in the tank. Press ENTER.
  • Page 34 Menu Option Function Sends data through the serial port to the attached printer (optional - not supplied by Raven) to Print Field Begin and Print Field End pages. Pressing CE will toggle between the two pages. PRINT FIELD BEGIN Press ENTER to print the Print Field Begin. The display will now show PRINT FIELD END.
  • Page 35 Remote Computer to SCS 460 Console Data Strings All request strings begin with $R, indicating a Raven communication string. Rate 1 Change Request = $R, RC, <rate_1_cal> <CR> <LF> Calibration String Values Request = $R, CR <CR> <LF>...
  • Page 36 SCS 460 Console to Remote Computer Data Strings All request strings begin with $R, indicating a Raven communication string. The 124 value indicates the last three digits of the programmed chip part number in the console, and F is the software revision letter of the console.
  • Page 37 Volume/Area Rate Alarm The SCS 460 console alarm will sound if the actual application rate is 30% or more away from the target application rate for more than 30 seconds. The alarm may be turned off thru the DATA MENU.
  • Page 38 Enter the old 4-digit data lock code within 15 seconds. Press ENTER. The message “NEW CODE E” will appear in the display. Enter the new 4-digit code within 15 seconds, or enter 0 to disable the Data-Lock feature. Press ENTER. SCS 460 Serial Interface Installation & Service Manual...
  • Page 39 0 as outlined in the “Change the Data Lock Code” on page 34, or the console can be reset, clearing the data-lock code from the system. Important: All calibration values entered into the SCS 460 console will be lost and must be reprogrammed. To reset the console: Turn the POWER ON/OFF switch to the OFF position.
  • Page 40 Enter the flow meter calibration value stamped on the identification tag. Press ENTER. Unshift the Decimal Place Press the METER CAL button. Enter the flow meter calibration value stamped on the identification tag. Press ENTER. SCS 460 Serial Interface Installation & Service Manual...
  • Page 41 Testing Initial System Setup After all components of the system have been installed and the console has been programmed, the SCS 460 is ready to be set up. Complete the following steps to set up the SCS 460 system.
  • Page 42 Note: The minimum pressure should be approximately half the normal spraying pressure. If the normal spraying pressure is 30 psi [210 kPa], set the minimum pressure to approximately 15 psi [105 kPa]. SCS 460 Serial Interface Installation & Service Manual...
  • Page 43 Initial System Setup and Testing Initial System Field Test Note: This procedure applies only to applications of 3 GPM [11 lit/min] or greater. For flow less than 3 GPM [11 lit/min], refer to the Alternate Bypass Plumbing Initial System Field Test section for the alternate bypass line testing procedure.
  • Page 44 Chapter 6 SCS 460 Serial Interface Installation & Service Manual...
  • Page 45 Maintenance & Troubleshooting General Preventative Maintenance Preventative maintenance is extremely important to ensure the long life of your machine and the SCS 460 system. The following preventative maintenance measures should be taken on a regular basis: • Flush the entire system with water after the use of suspension-type chemicals. Failure to clean the system can result in the crystallization of chemicals, causing plugs in the flow meter, lines, or nozzles.
  • Page 46 • If the TOTAL VOLUME increases, replace the flow sensor. Perform voltage checks as illustrated in the figure above. Important: Re-enter the original METER CAL figure after testing is complete. SCS 460 Serial Interface Installation & Service Manual...
  • Page 47 Preventative Maintenance & Troubleshooting Recalibrating the Flow Meter Note: This procedure should be performed when the tank is filled with water, not chemicals. Enter a METER CAL value of 10 [38] into the console. Enter a TOTAL VOLUME value of 0 into the console. Turn OFF all booms.
  • Page 48 If the DISTANCE does not increase, replace the defective cable and repeat the ground-signal short test. • If the DISTANCE increases, replace the speed sensor. Perform voltage checks as illustrated in the figure above. Important: Re-enter the original SPEED CAL figure after testing is complete. SCS 460 Serial Interface Installation & Service Manual...
  • Page 49 Preventative Maintenance & Troubleshooting Troubleshooting Console Issues Issue Corrective Action Check the fuse on the back of the console. Check the battery connections. The console is on, but there are no Check the operation of the Power ON/OFF switch. lights lit up on the console. Return the console to the dealer to have the processor board assembly replaced.
  • Page 50 If pressure cannot be adjusted manually, refer to the “Total volume registers flow inaccurately” issue in this section. If the problem persists, return the console to the dealer to have the processor board assembly replaced. SCS 460 Serial Interface Installation & Service Manual...
  • Page 51 Preventative Maintenance & Troubleshooting Issue Corrective Action Check the cabling to the motorized control valve for breaks in the line. Verify the cable connections are clean. Verify that there is voltage to the valve connector. Turn the Master switch ON. Cannot vary the RATE in automatic or manual operation.
  • Page 52 Chapter 7 SCS 460 Serial Interface Installation & Service Manual...
  • Page 53 R eplacement Parts CHAPTER C h a p t e r 8 Manual No. 016-0159-823...
  • Page 54 Chapter 8 SCS 460 Serial Interface Installation & Service Manual...
  • Page 55 Flow Meter 17 Installing the Pressure Transducer 17 Mounting the Flow Meter 17 Sensors 13 Phoenix 10 GPS Speed Sensor 16 Raven Radar Speed Sensor 13 Wheel Drive Speed Sensors 14 Introduction Calculating Machine Calibration Values 5 Boom Cal Value 5...
  • Page 56 Index SCS 460 Serial Interface Installation & Service Manual...
  • Page 57 How Can I Get Service? Bring the defective part and proof of purchase to your Raven Dealer. If your Dealer agrees with the warranty claim, the Dealer will send the part and proof of purchase to their distributor or to Raven Industries for final approval.
  • Page 58 P.O. Box 5107 Fax: 605-331-0426 Sioux Falls, SD 57117-5107 www.ravenprecision.com atdinfo@ravenind.com Notice: This document and the information provided are the property of Raven Industries, Inc. and may only be used as authorized by Raven Industries, Inc. All rights reserved under copyright laws.
