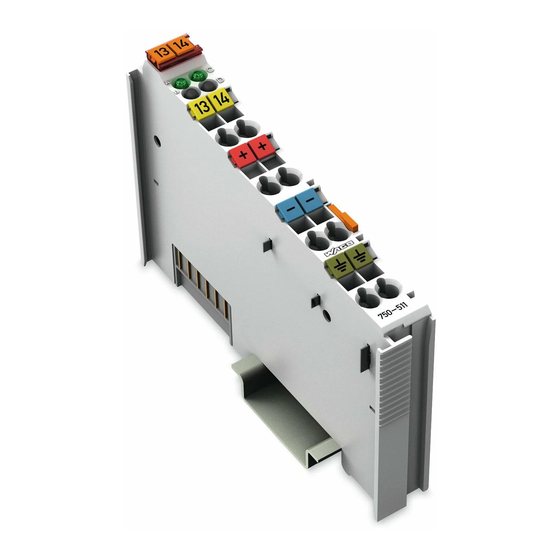

WAGO 750 Series Manual

Fieldbus independent i/o modules. pulse width output module
Hide thumbs Also See for 750 Series:
Table of Contents

Advertisement

Quick Links

Fieldbus Independent
I/O Modules
Pulse Width Output Module
750-511, (/xxx-xxx)
Manual
Version 1.0.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 750 Series and is the answer not in the manual?

Questions and answers

Related Manuals for WAGO 750 Series

Summary of Contents for WAGO 750 Series

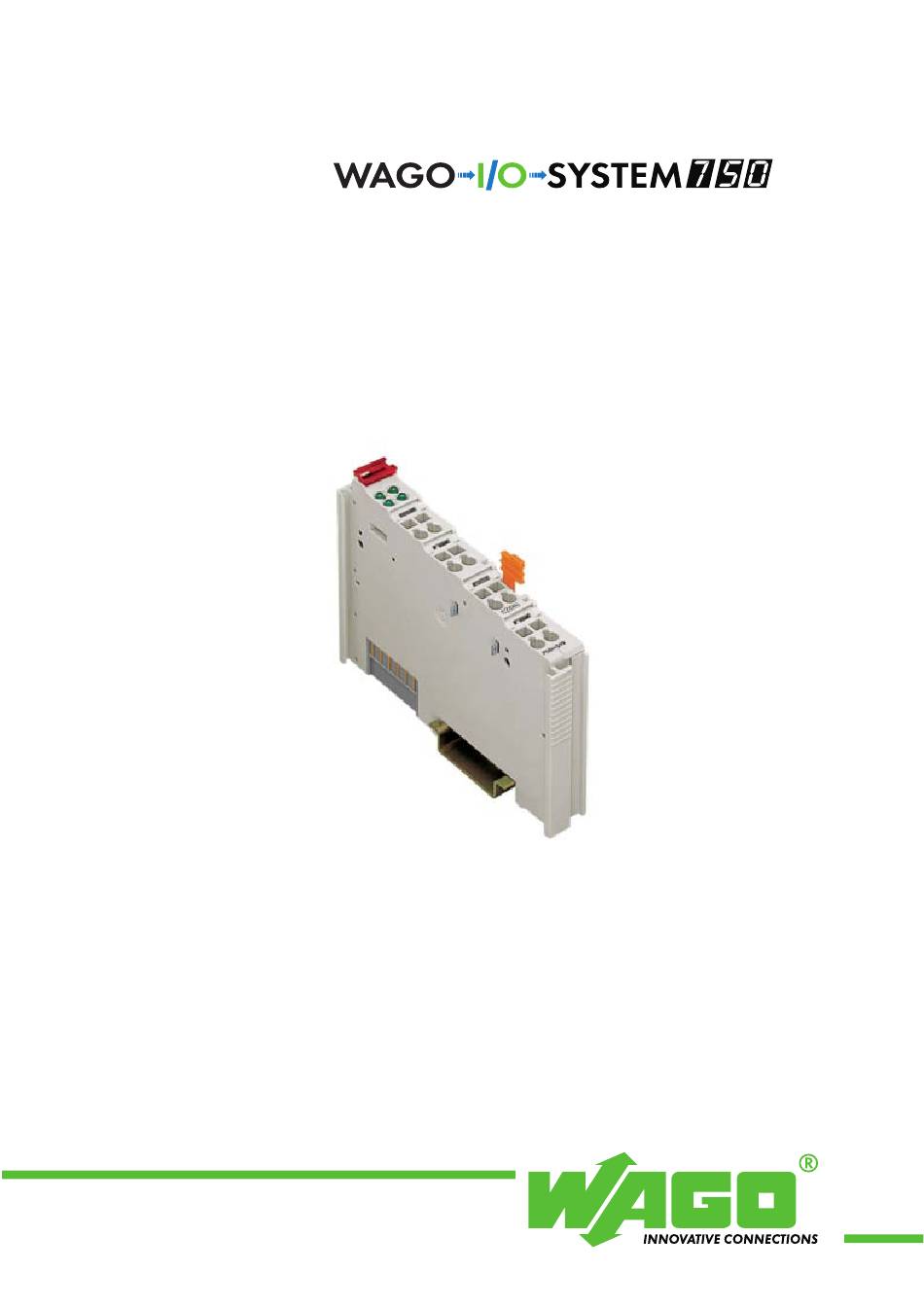

  • Page 1 Fieldbus Independent I/O Modules Pulse Width Output Module 750-511, (/xxx-xxx) Manual Version 1.0.2...
  • Page 2 • General Copyright © 2006 by WAGO Kontakttechnik GmbH & Co. KG All rights reserved. WAGO Kontakttechnik GmbH & Co. KG Hansastraße 27 D-32423 Minden Phone: +49 (0) 571/8 87 – 0 Fax: +49 (0) 571/8 87 – 1 69 E-Mail: info@wago.com...

  • Page 3: Table Of Contents

    Example 750-511/000-002............17 2.1.3 750-511/000-001 [2DO 24V DC 0,1A/Frequency/2kHz] ....19 2.1.3.1 View....................19 2.1.3.2 Description..................19 2.1.3.3 Display Elements ................20 2.1.3.4 Schematic Diagram............... 21 2.1.3.5 Technical Data ................22 2.1.3.6 Process Image ................23 WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 4: Important Comments

    WAGO Kontakttechnik GmbH & Co. KG declines all liability resulting from improper action and damage to WAGO products and third party products due to non-observance of the information contained in this manual.

  • Page 5: Symbols

    Routines or advice for efficient use of the device and software optimization. More information References on additional literature, manuals, data sheets and INTERNET pages 1.3 Number Notation Number Code Example Note Decimal normal notation Hexadecimal 0x64 C notation Binary '100' Within ', '0110.0100' Nibble separated with dots WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 6: Safety Notes

    Do not use any contact spray. The spray may impair the functioning of the contact area. The WAGO-I/O-SYSTEM 750 and its components are an open system. It must only be assembled in housings, cabinets or in electrical operation rooms. Access must only be given via a key or tool to authorized qualified personnel.

  • Page 7: O Modules

    50 %, adjustable, 0 ... 100 % fix preset 0 ... 100 % Channels 2 pulse width outputs 1 frequency output 2 pulse width outputs with same pulse 1 directional output with same pulse frequency frequency WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 8: 750-511, /000-002 [2Do 24V Dc 0.1A / Pulse Width]

    The basic frequency or the period can be parameterized for both channels of the module together. For the module 750-511 the initial pre-programmed base frequency is 250 Hz, for the module 750-511/000-002 it is 100 Hz. WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 9: Display Elements

    The specialty module 750-511 and its variations can be used with all couplers/controllers of the WAGO-I/O-SYSTEM 750 (except for the economy types 750-320, -323, -324 and -327). This description is valid for the XXXX3A04... hardware and software versions.

  • Page 10: Schematic Diagram

    10 • 750-511, /000-002 [2DO 24V DC 0.1A / Pulse Width] Schematic Diagram 2.1.2.5 Schematic Diagram DO 1 DO 2 Logic 270pF Function 10nF 10nF 10nF 750-511 Fig. 2.1.2-3: 2-Channel Pulse Width Output Module 750-511 g051101e WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 11: Technical Data

    II 3 G EEx nA II T4 Conformity Marking More Information Detailed references to the approvals are listed in the document "Overview Approvals WAGO-I/O-SYSTEM 750", which you can find on the CD ROM ELECTRONICC Tools and Docs (Item-No.: 0888-0412) or in the internet under: www.wago.com...

  • Page 12: Process Image

    The MSB will hold the sign and is preset to the null state. 750-511, 750-511/000-002 Pulse duty Units numerical value factor binary hex. dec. 100,0 1023 '0111.1111.111X.XXXX' 0x7FE0 32736 50,0 '0011.1111.111X.XXXX' 0x3FE0 16352 25,0 '0001.1111.111X.XXXX' 0x1FE0 8160 0,1955 '0000.0000.010X.XXXX' 0x0040 0,0977 '0000.0000.001X.XXXX' 0x0020 '0000.0000.000X.XXXX' 0x0000 WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 13: Example

    Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 This value is not evaluated. 2.1.2.8 Example The following illustration shows the output signal behavior with different On/Off time settings. 100% Fig. 2.1.2-4: On/Off time relationships g051102x WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 14: Parameterizing The Period / Pulse Frequency

    A0 = 1, A1 = 1: register 3 write/read access W/R = 0: read W/R = 1: write register communication REG = 0: process data communication REG = 1: register communication This constant must be set to zero. WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 15: Example 750-511

    You can reactivate the process data exchange if you erase bit 7. Control byte C0 Output byte D1 Output byte D0 '0XXX.XXXX' 'XXXX.XXXX' 'XXXX.XXXXX' Status byte S0 Input byte D1 Input byte D0 Remark '1000.0010' '0000.1111' '1010.0000' acknowledge '0XXX.XXXX' '0000.0000' '0000.0000' process data exchange WAGO-I/O-SYSTEM 750 I/O Modules...
  • Page 16 You can reactivate the process data exchange if you erase bit 7. Control byte C0 Output byte D1 Output byte D0 '0XXX.XXXX' 'XXXX.XXXX' 'XXXX.XXXX' Status byte S0 Input byte D1 Input byte D0 Remark '1000.0010' '0000.0000' '0000.0000' register- communication (acknowledge) '0XXX.XXXX' '0000.0000' '0000.0000' process data exchange WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 17: Example 750-511/000-002

    You can reactivate the process data exchange if you erase bit 7. Control byte C0 Output byte D1 Output byte D0 '0XXX.XXXX' 'XXXX.XXXX' 'XXXX.XXXXX' Status byte S0 Input byte D1 Input byte D0 Remark '1000.0010' '0000.0100' '1110.0010' acknowledge '0XXX.XXXX' '0000.0000' '0000.0000' process data exchange WAGO-I/O-SYSTEM 750 I/O Modules...
  • Page 18 You can reactivate the process data exchange if you erase bit 7. Control byte C0 Output byte D1 Output byte D0 '0XXX.XXXX' 'XXXX.XXXX' 'XXXX.XXXXX' Status byte S0 Input byte D1 Input byte D0 Remark '1000.0010' '0000.0000' '0000.0000' register communication (acknowledge) '0XXX.XXXX' '0000.0000' '0000.0000' process data exchange WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 19: 750-511/000-001 [2Do 24V Dc 0,1A/Frequency/2Khz]

    The outputs are short-circuit-protected. The operational readiness and the trouble-free internal data bus communication of the channels are indicated via a green function LED. An optocoupler is used for electrical isolation between the bus and the field side. WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 20: Display Elements

    Use an appropriate supply module (e.g. 750-602) if an electrically isolated voltage supply is required! The special module 750-511/000-001 can be used with all couplers/controllers of the WAGO-I/O-SYSTEM 750 (except for the economy types 750-320, - 323, -324 and -327). This description is valid for the XXXX3A04... hardware and software versions.

  • Page 21: Schematic Diagram

    750-511/000-001 [2DO 24V DC 0,1A/Frequency/2kHz] • 21 Schematic Diagram 2.1.3.4 Schematic Diagram DO 1 DO 2 Logic 270pF Function 10nF 10nF 10nF 750-511 /000-001 Fig. 2.1.3-3: 2-Channel Pulse Width Output Module 750-511/000-001 g051104e WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 22: Technical Data

    II 3 G EEx nA II T4 Conformity Marking More Information Detailed references to the approvals are listed in the document "Overview Approvals WAGO-I/O-SYSTEM 750", which you can find on the CD ROM ELECTRONICC Tools and Docs (Item-No.: 0888-0412) or in the internet under: www.wago.com...

  • Page 23: Process Image

    In the input process image (D0, D1) the PLC receives back the number of displayed impulses. The counter direction is set by the sign of the output data (signed integer). The second channel (DO2) indicates the sign. WAGO-I/O-SYSTEM 750 I/O Modules...
  • Page 24 Bit 2 Bit 1 Bit 0 This constant must be set to zero. Status byte 1 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 This value is not evaluated. WAGO-I/O-SYSTEM 750 I/O Modules...
  • Page 25 750-511/000-001 [2DO 24V DC 0,1A/Frequency/2kHz] • 25 Process Image WAGO-I/O-SYSTEM 750 I/O Modules...
  • Page 26 WAGO Kontakttechnik GmbH & Co. KG Postfach 2880 • D-32385 Minden Hansastraße 27 • D-32423 Minden Phone: 05 71/8 87 – 0 Fax: 05 71/8 87 – 1 69 E-Mail: info@wago.com Internet: http://www.wago.com...
