UNIT TAG NAME (A008)
M = MANUAL, L = LOCAL
STATUS INDICATORS
50 SEGMENT VERTICAL
AXIS LINE
SETPOINT
PROCESS VARIABLE BAR
SELECTION POINTER
(TOGGLED BY F3)
LEGENDS - CON AND VALUES
CHANGE WHEN SELECTION
POINTER IS MOVED TO NEXT
BAR GRAPH
CON-X = CONTROL
MODULE
SP = SETPOINT
PV = PROCESS VARIABLE
OUT = OUTPUT VALUE

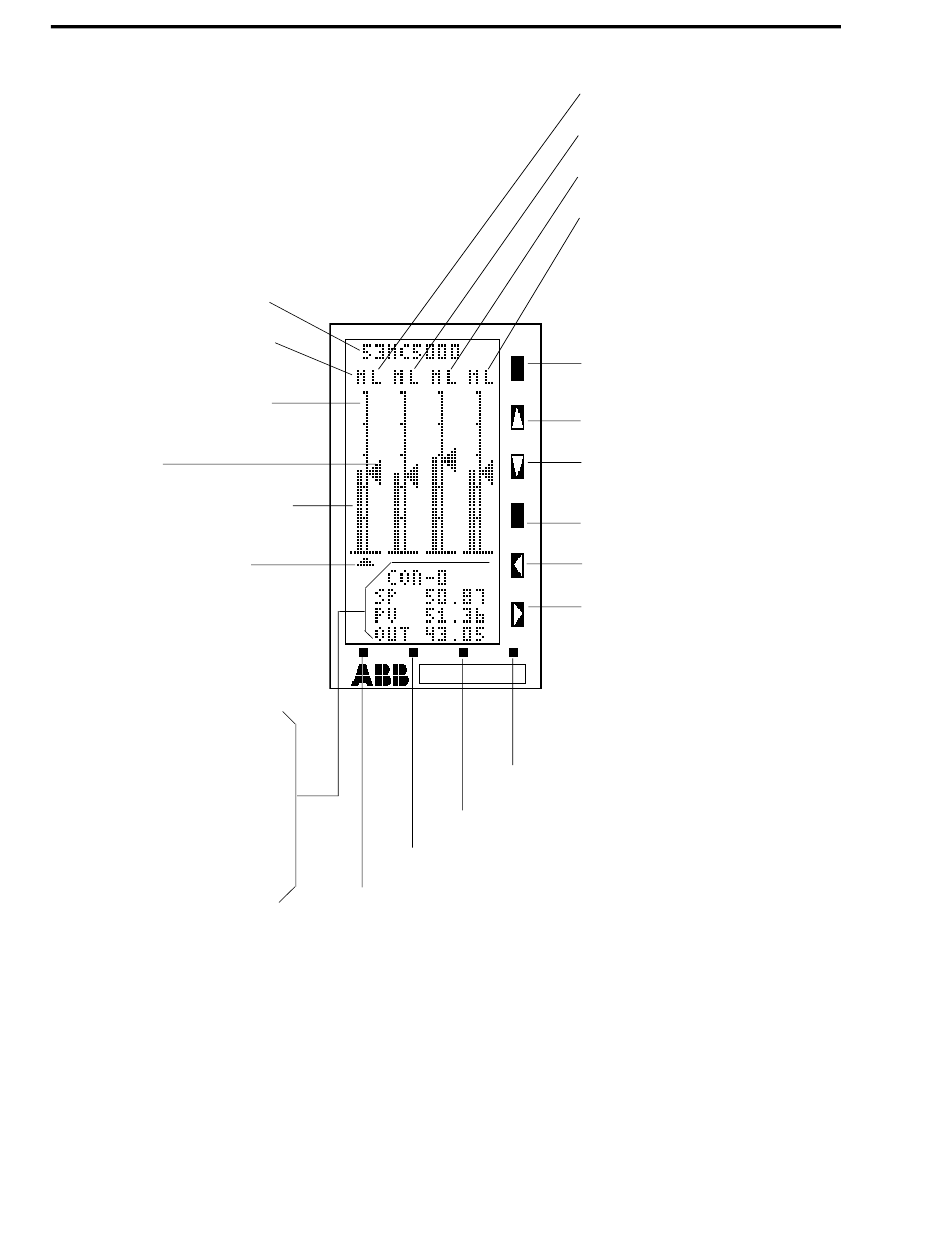

Figure 4-15. Point Display 32 - Four Loop Display (Sheet 2 of 2)
4-32
53MC5000 Process Control Station
F3 - CON SELECTION POINTER TOGGLE
F2 - PAGE IN LIST OR PAGE FORWARD
F1 - NEXT DISPLAY GROUP OR PAGE BACK
CON-0
CON-1
CON-2
CON-3
PUSH BUTTONS (PBs)
AFFECT ONLY THE
SELECTED CON BAR
GRAPH
R/L = REMOTE/LOCAL
SETPOINT CONTROL PB
L = SETPOINT UP ARROW PB
L = SETPOINT DOWN ARROW
PB
AUTO/MANUAL OUTPUT
SELECTOR PB
M = DECREASE OUTPUT PB
M = INCREASE OUTPUT PB
MODE - ALARM RESET
