EXPANSION BOARD OPTION SLOT CONTENTS
(DATAPOINTS ARE: SLT1 - B095, SLT2 - B096,
SLT3 - B097, SLT4 - B098, SLT5 - B099.) INDEX
VALUES ENTERED IN THESE OPTION SLOT
DATAPOINTS CAN BE AS FOLLOWS:
128 = MICROLINK CARD OCCUPIES SLOT,
129 = AUXILIARY PROCESSOR BOARD IN SLOT,
1 = 6 DIGITAL INPUT/4 DIGITAL OUTPUT CARD, 2
= SINGLE CHANNEL ANALOG INPUT [AI8]
CARD OCCUPIES THE SLOT,
3 = MULTICHANNEL ANALOG I/O CARD IN SLOT,
4 = 16 DIGITAL INPUT/ DIGITAL OUTPUT CARD,
5 = HART MODEM OPTION CARD IN SLOT.
(ADDITIONAL CARD ID'S ARE IDENTIFIED IN THE
DOCUMENTATION RELEASED WITH THE
OPTION.)
M i c r o L i n k N E T W O R K M O D E ( B 4 4 8 ) ( 0 - 2
MBIT/SEC, 1 - 1 MBIT/SEC, 2 - 0.5 MBIT/SEC, AND
3 - 0.25 MBIT/SEC.)
MicroLink NETWORK STATUS (CAN BE AB, A, B,
OR BLANK. AB - INDICATES EITHER MicroLink
NETWORKS A OR B CAN COMPLETE ALL OF THE
EXTERNAL I/O TABLE TASKS.
ONLY NETWORK A CAN COMPLETE ALL OF THE
EXTERNAL I/O TABLE TASKS.
B - INDICATES ONLY NETWORK B CAN
COMPLETE ALL OF THE EXTERNAL I/O TABLE
TASKS. A BLANK FIELD INDICATES BOTH, A
AND B, ARE REQUIRED TO COMPLETE ALL OF
THE NETWORK TASKS; THEREFORE, PSTAT CAN
STILL BE OK BECAUSE THE TASKS ARE BEING
COMPLETED, BUT BY BOTH NETWORKS.)
PSTAT (OK - INDICATES ALL OF THE
CONFIGURED TASKS IN THE EXTERNAL I/O TA-
BLE ARE BEING COMPLETED.)
HOURS:MINUTES:SECONDS (B259, B258, B257)
DAY MONTH YEAR
HORN OVERLAY - (CONTENTS OF A009 ARE
'wALARMx', L065 = 1, AND L063 = 0 TO ALLOW
CONTENTS OF A009 TO BE SUPERIMPOSED
OVER DISPLAY. IF 'ALARM' IS ENTERED IN A009
W ITHO UT THE ' w' A ND 'x ', THEN B RACK ET
POINTS DO NOT APPEAR IN OVERLAY.)

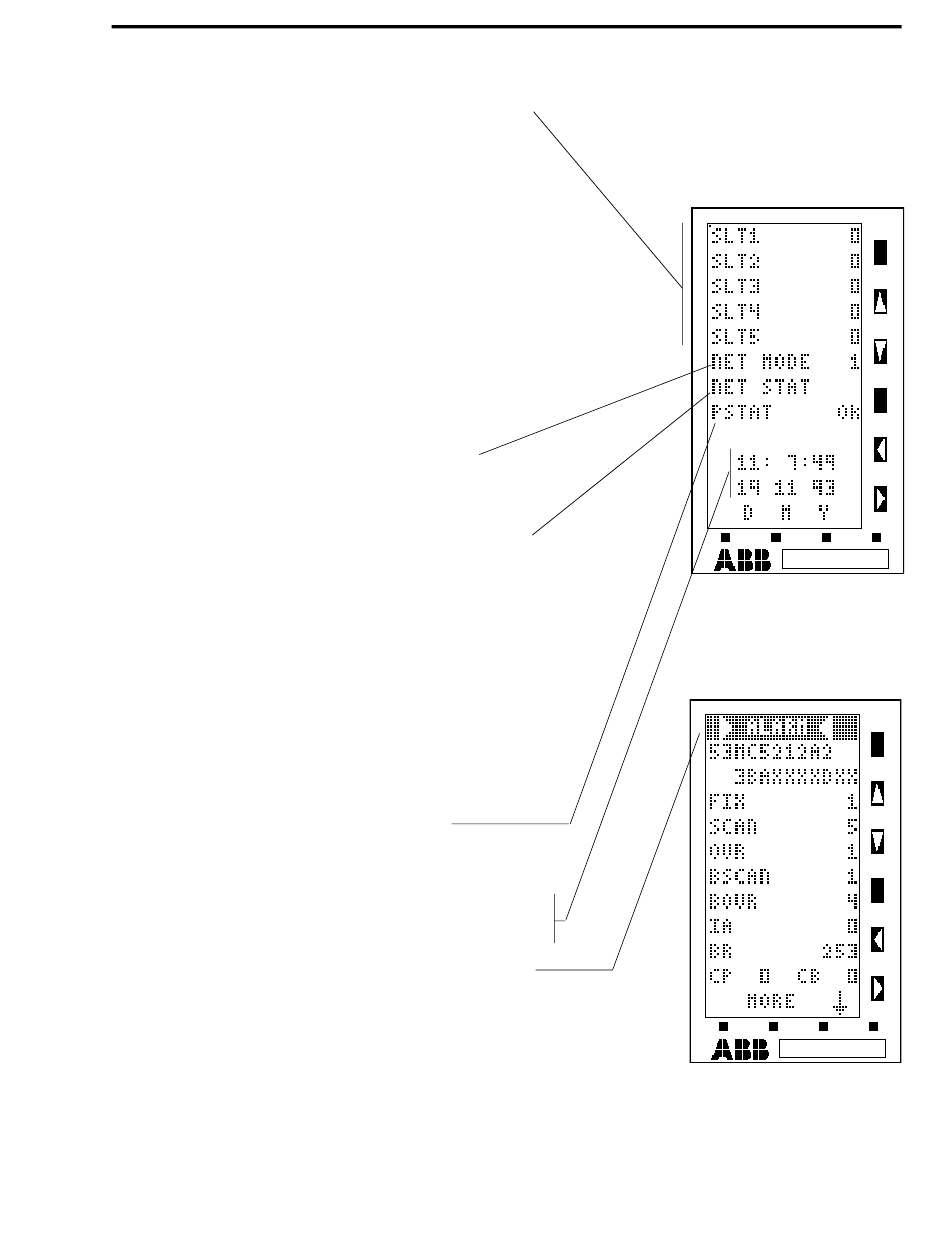

Figure 4-2. Display 2 - System Status (Sheet 2 of 2)
