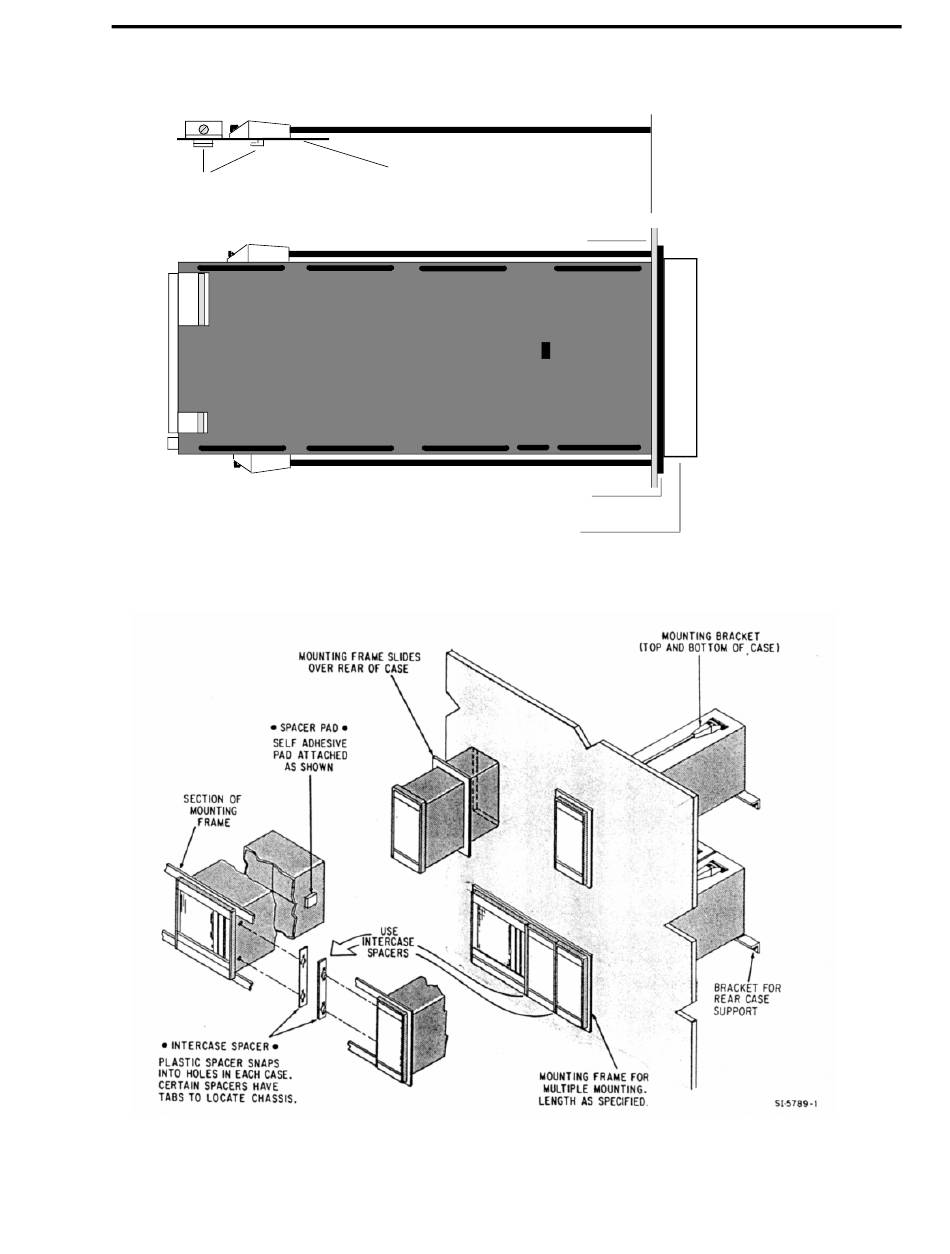

Figure 2-4. Bracket Rods; Figure 2-5. Intercase Spacing - ABB ControlIT 53MC5000 Instruction Manual

FOOT EXTENDS
THROUGH NOTCH

Figure 2-5. Intercase Spacing

Section 2. Installation
MOUNTING BRACKET ROD
TOP OR BOTTOM
OF CONTROLLER
SITE MOUNTING PANEL
TRIM COLLAR (SUPPLIED
WITH CONTROLLER)
CONTROLLER BEZEL

Figure 2-4. Bracket Rods

1. SLIDE TRIM
COLLAR FROM
REAR OF
CONTROLLER
TOWARD FRONT
BEZEL.
2. SLIDE
CONTROLLER
THROUGH SITE
PANEL CUT-OUT.
3. INSERT UPPER
MOUNTING
BRACKET FOOT
INTO NOTCH.
4. POSITION CASE
AND TURN ROD
WITH SCREW-
DRIVER UNTIL IT
MEETS PANEL.
5. FOR LOWER
MOUNT-
2-5
