Overview
The CoBox-Micro integrate into products quickly and easily. Serial interfacing is
accomplished via a TTL connector, and for Ethernet access, an optional RJ45 (10BASE-T)
connector is available. The orientation of its interface pins can be specified to fit your
product. It requires 5 volts DC of regulated power with maximum current of 200mA.
The CoBox-Micro's well-developed IP firmware supports protocols such as ARP, UDP,
TCP, Telnet, BOOTP, ICMP, SNMP, DHCP, TFTP, and HTTP, as well as other custom
protocols. The CoBox-Micro also supports a variety of user-configurable options such as
buffer control and packetization, which make it easy to use in most applications.

Board Layout

.100
.620
1.370
.724
Use this hole for chassis ground
.100
.100
Notes
1. This also represents the highest component on
the board.

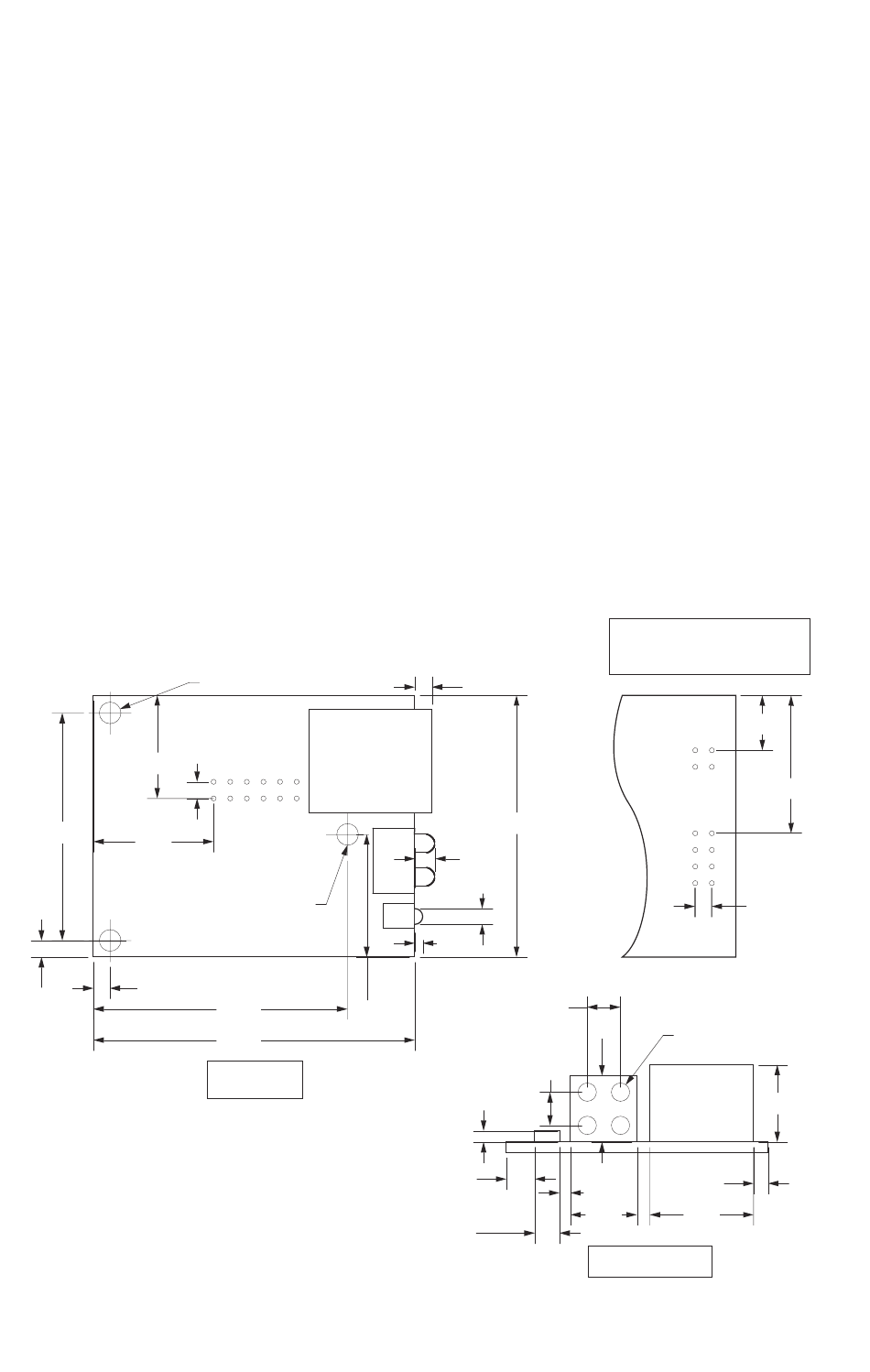

Figure 2-1: CoBox-Micro Board Layout
Ø.130 3 places
1.530
.739
1.935
Board Top
.100
1.575
.120
.095
.050
.200
.400
.200
.068
.170
.065
.400
.150
Connector End
Alternate construction,
without LED/RJ45 Connector
.330
.830
.100
Ø.115
.465 (Note 1
.087
.625
