Board Layout
Board Layout
3.0 [0.118] 4x
2.5
[0.098]
Connectors
The CoBox-Mini has four connectors:
1
TTL serial port (CON1)
2
AUI connector (CON2)
3
UTP connector (CON3)
4
TTL serial port 2 and full handshaking signals (CON4)
At the time of ordering, each connector can be specified with the following pin
configurations:
! Not present
!
Top mounted, length of 5.46 mm or 6.76 mm
!
Bottom mounted, length of 5.46 mm or 6.76 mm
3-2

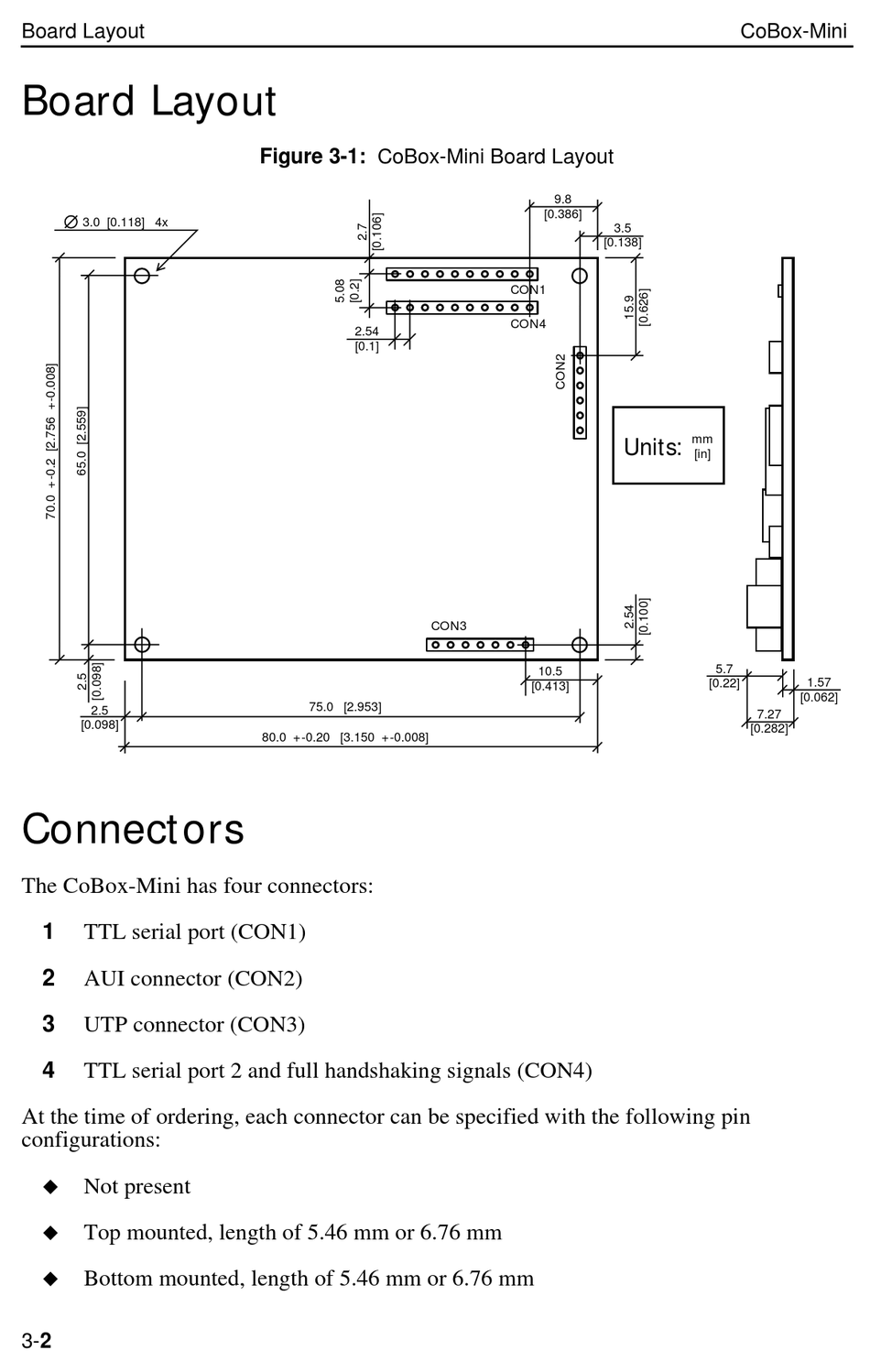

Figure 3-1: CoBox-Mini Board Layout
2.54
[0.1]
75.0 [2.953]
80.0 +-0.20 [3.150 +-0.008]
9.8
[0.386]
CON1
CON4
CON3
10.5
[0.413]
CoBox-Mini
3.5
[0.138]
mm
Units:
[in]
5.7
[0.22]
7.27
[0.282]
1.57
[0.062]
