Connectors
Connectors
The CoBox-Micro has four connectors: a TTL serial port (CON1), a 10BASE-T RJ45
Connector (CON2), and/or pins instead of the RJ45 connector (CON3) and LEDs (CON4).
At the time of ordering, each connector can be specified as follows:
!
Pins (5.46mm) on/off the board and top/bottom
!
LEDs on/off the board
! RJ45 on/off the board
Contact Lantronix for information about ordering Device Servers with customized
connector configurations.
The Embedded Integration Kit (part number Micro-Kit) includes the CoBox-Micro
embedded Device Server. Refer to the following table for a listing of its pinouts.
2-2

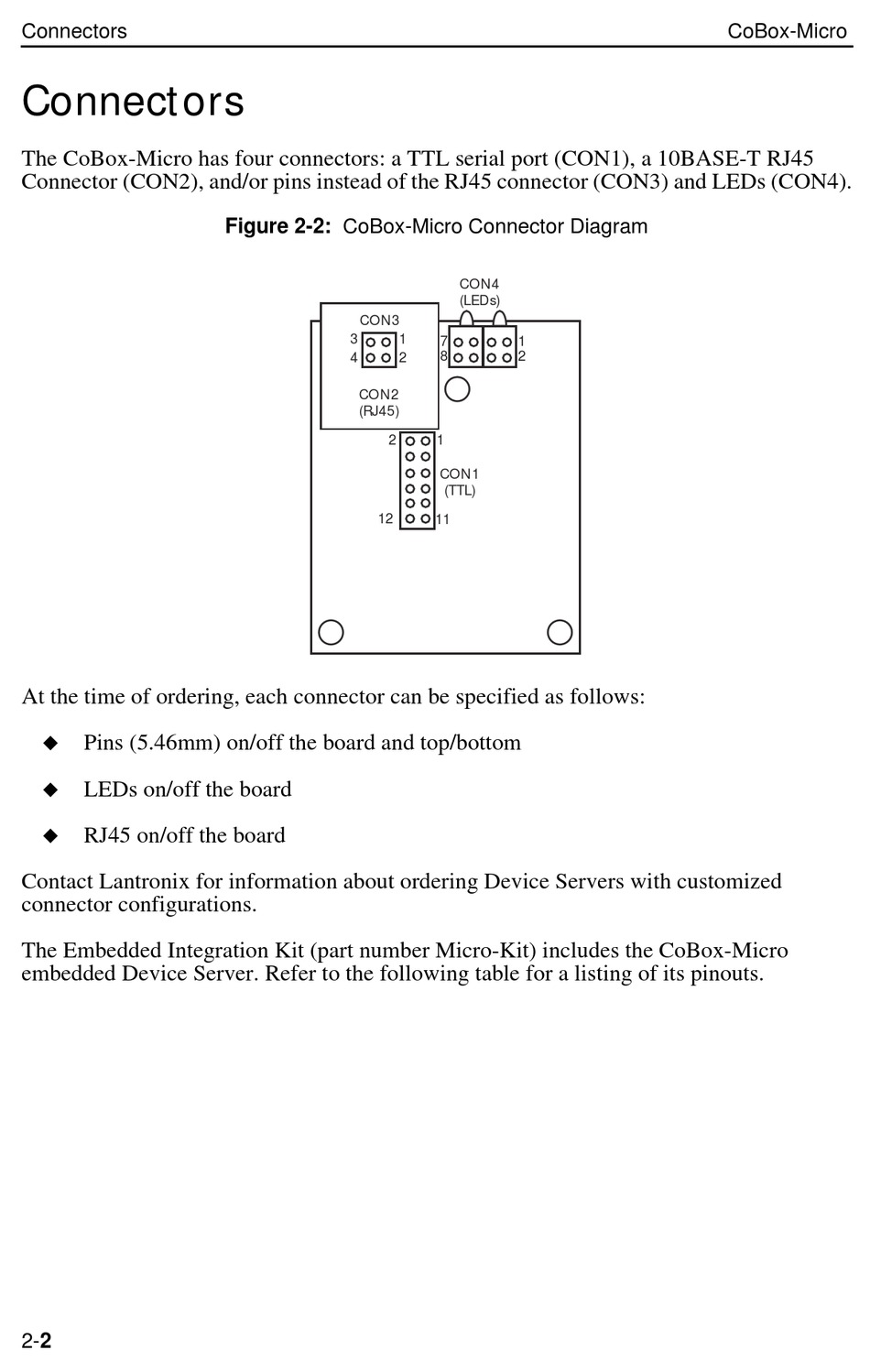

Figure 2-2: CoBox-Micro Connector Diagram
CON3
3
4
CON2
(RJ45)
2
12
CON4
(LEDs)
1
7 1
8 2
2
1
CON1
(TTL)
11
CoBox-Micro
