Stopping the IBERT Demonstration
To stop the IBERT demonstration:
1.
2.
3.
SP623 IBERT Getting Started Guide
UG752 (v1.0.1) January 26, 2011
Note that there are no bit errors as indicated by the RX Bit Error Count as shown in
Figure 17.

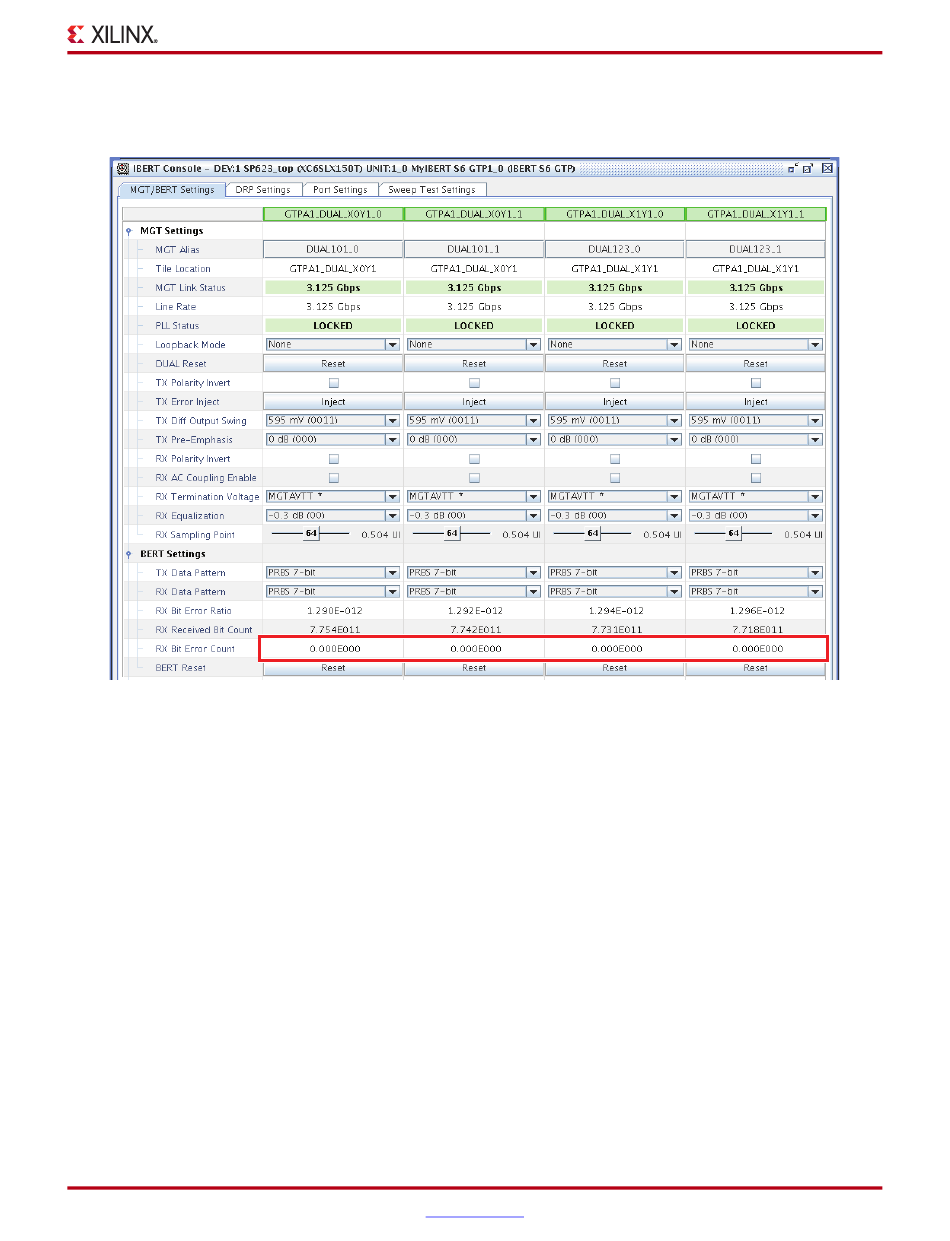

Figure 17: RX Bit Error Count
Close the ChipScope Pro Analyzer tool.
Note:
Do not save changes to the project.
Remove power to the SP623 board by placing SW1 in the OFF position.
Remove the SMA cables from the SP623 board.
