X-Ref Target - Figure 5
4.

Setting Up the ChipScope Pro Analyzer Tool

1.
2.
X-Ref Target - Figure 6
SP623 IBERT Getting Started Guide
UG752 (v1.0.1) January 26, 2011
Configuation Address for Dual 101 and Dual 123 (000)

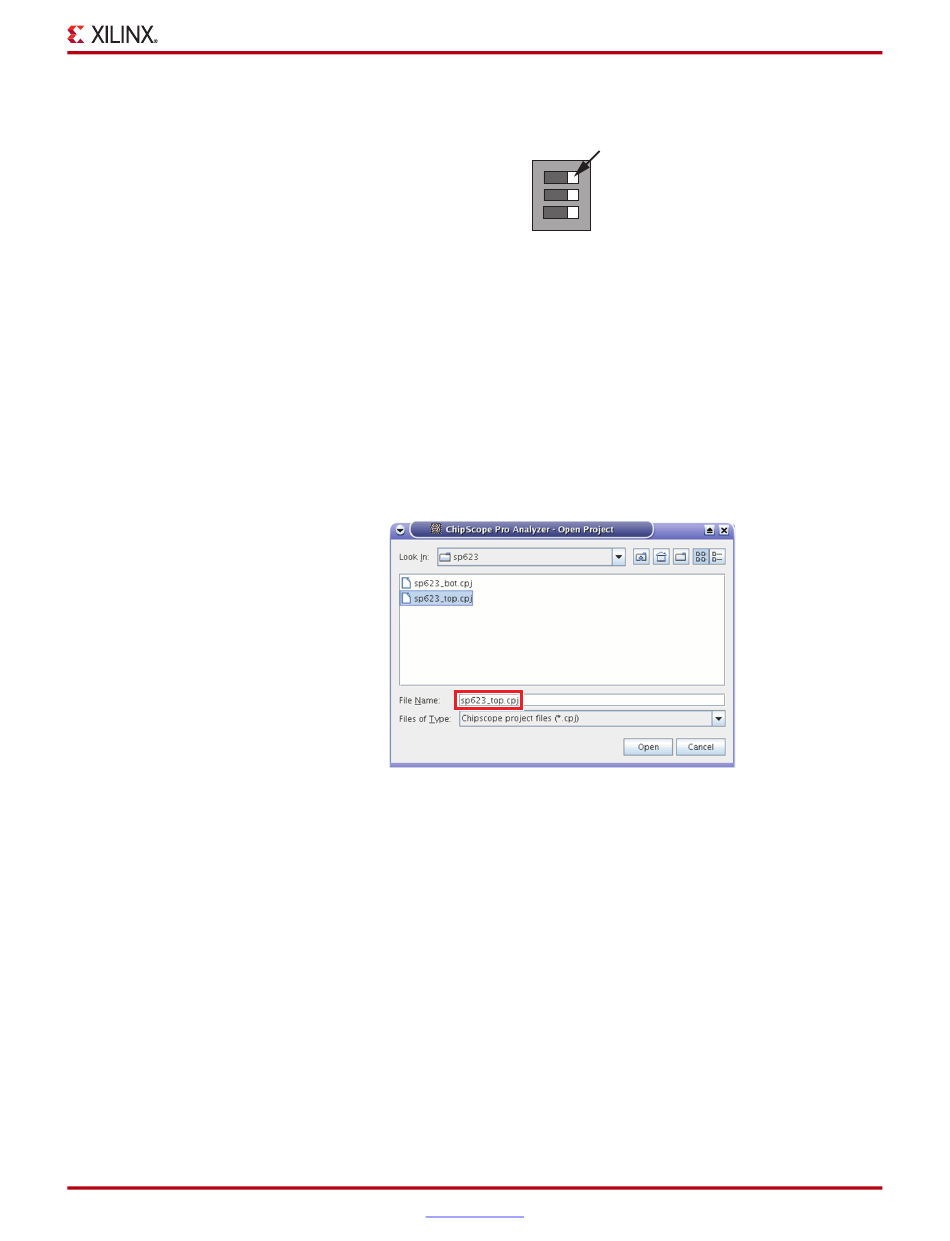

Figure 5: Configuration Address DIP Switch (SW3) Settings
Apply power to the board by placing SW1 in the ON position. After a few seconds, the
FPGA is configured and the Done LED (DS6) lights.
Open the ChipScope Pro Analyzer tool and select File → Open Project.
When the Open Project window appears, navigate to the location on the host PC where
the .cpj project files were extracted, select sp623_top.cpj and click Open
(Figure 6).
Figure 6: Open Project Window
Note:
The .cpj file loads pre-saved project settings for the demonstration including MGT/
IBERT and clock module control parameters. For more information regarding MGT/IBERT
settings, refer to UG029, ChipScope Pro Software and Cores User Guide.
www.xilinx.com
Off Position = 0
SW3
ADR0
ADR1
ADR2
CFG
ADDRESS
UG752_05_052510
UG752_06_060110
Procedure
