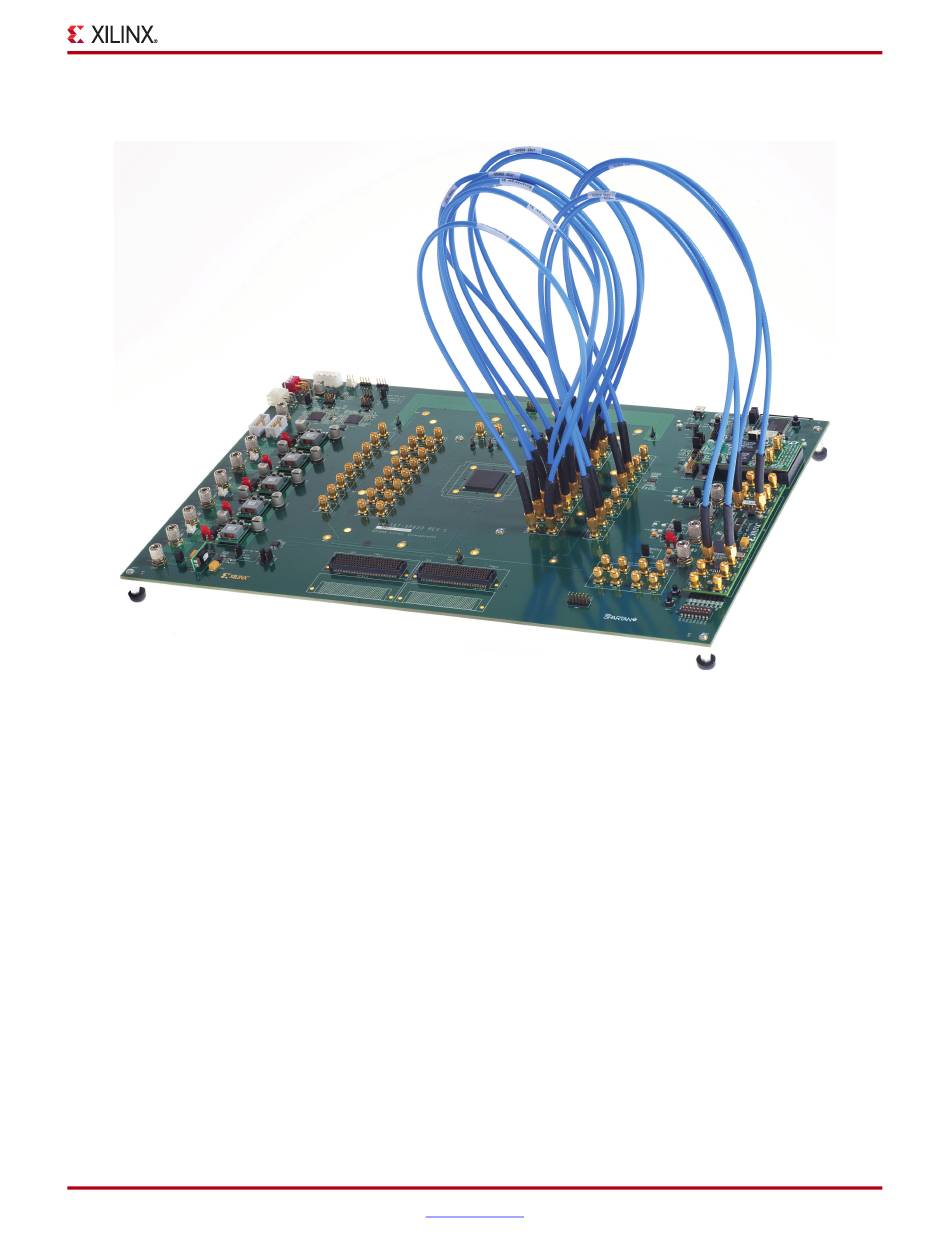

The final SMA cable connections for Duals 245 and 267 are shown in
X-Ref Target - Figure 18
Figure 18: SMA Cable Connections for Dual 245 and 267 Transceivers and Clocks

Configuring the FPGA

1.
2.
3.
SP623 IBERT Getting Started Guide
UG752 (v1.0.1) January 26, 2011
Plug the 12V output from the power supply into connector J122.
Connect the SP623 board to the Host PC. Either of these cables may be used for this
connection:
• Platform Cable USB-II (DLC10)
• Parallel IV Cable (PC4)
Connect one end of the cable to the host PC. Connect the other end to the download
cable connector (J1) on the SP623 board.
To run the IBERT demonstration on Duals 245 and 267, set the System Ace Controller
Configuration Address switch SW3 to 001 as shown in
determines which of the two bitstreams stored in the CompactFlash card configures
the FPGA.
www.xilinx.com
Procedure
Figure 4.
UG752_18_052710
Figure 19. The setting on SW3
19
