An always-on Si570 crystal oscillator and an Si5368 jitter-attenuating clock multiplier. The
IBERT demonstration uses the output from the Si5368 device to clock the GTP transceivers.
1.
X-Ref Target - Figure 10
2.
X-Ref Target - Figure 11
SP623 IBERT Getting Started Guide
UG752 (v1.0.1) January 26, 2011

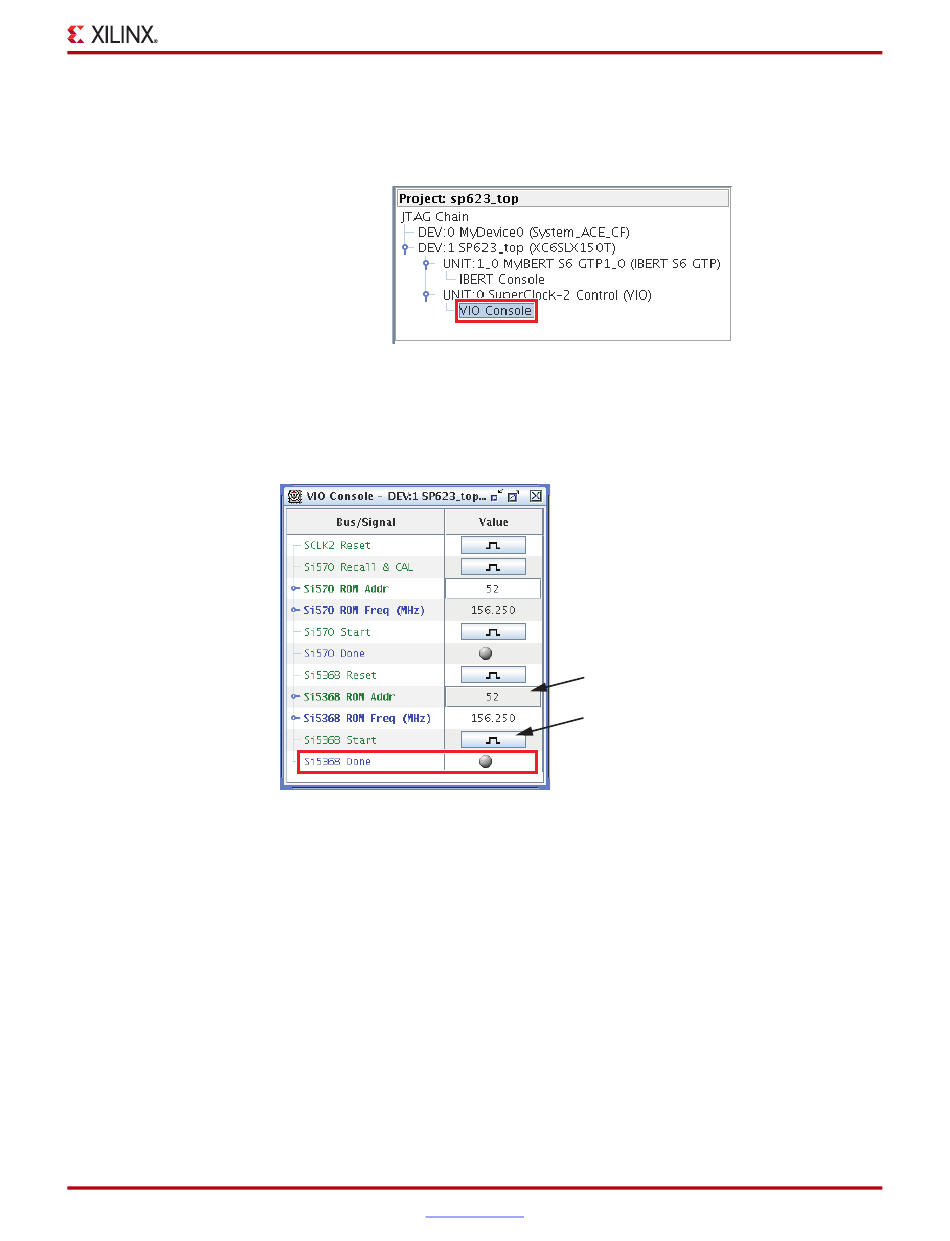

In the project panel, double-click VIO Console
Figure 10: VIO Console Selection
Having selected the VIO Console, click the Si5368 Start button
transition arrow flashes ON/OFF to the right of Si5368 Done when the command is
complete.
Note:
The ROM address value for the Si5368 is preset to 52 to produce an output frequency of
156.25 MHz. Typing in a different address changes the frequency of the GTP transceiver
reference clocks. A complete list of frequency options and their associated ROM addresses is
provided in Table 5, page 27.
www.xilinx.com
(Figure
The ROM Address value for the Si5368 clock
multiplier is preset to 52.
Si5358 start button
UG752_11_052510
Figure 11: VIO Console
Procedure
10).
UG752_10_052510
(Figure 11). A
