Changes To Figure 6; Evaluation Board Schematic - Analog Devices AD8338-EVALZ User Manual

UG-559

EVALUATION BOARD SCHEMATIC

Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
GND
GND
GND
GND
GND

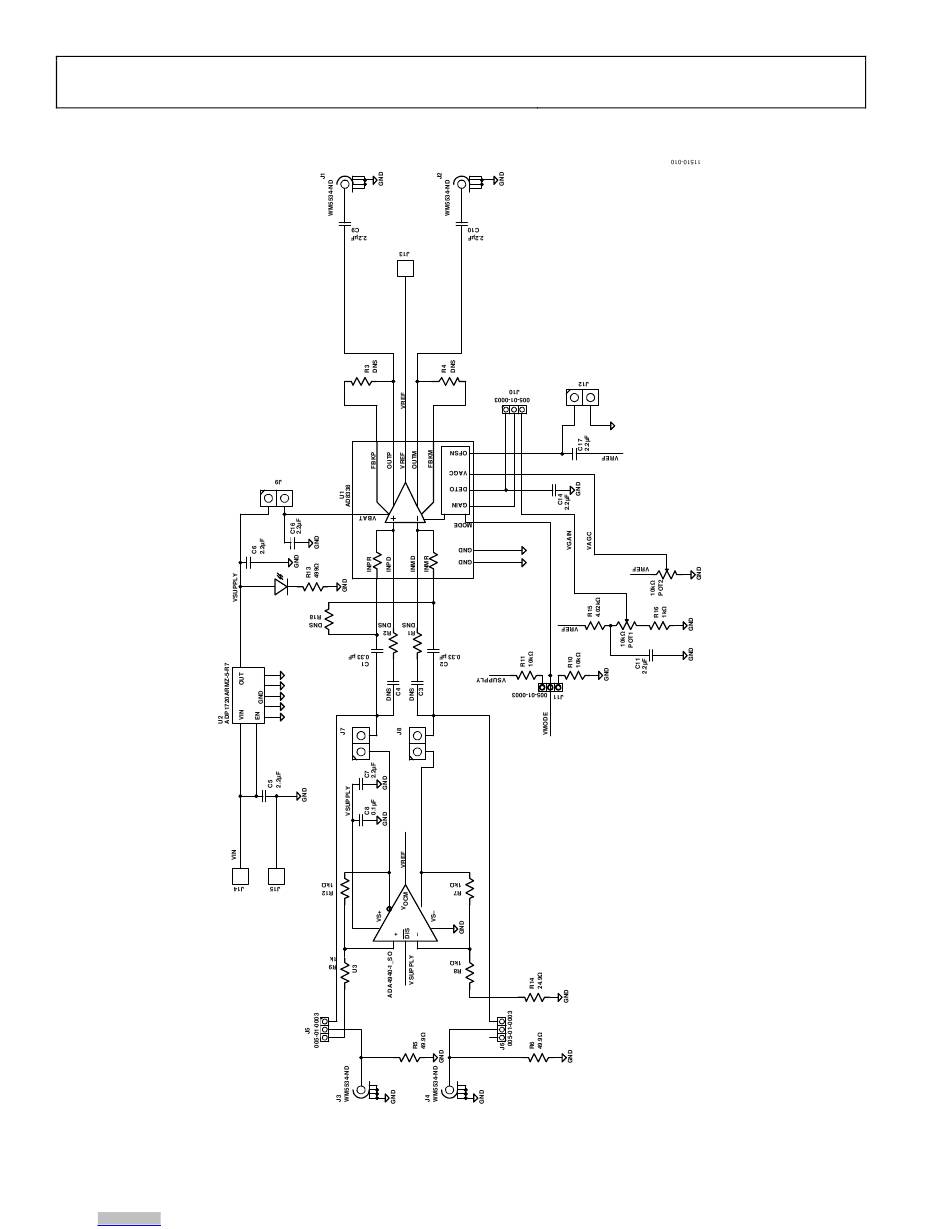

Figure 7. Schematic
Rev. B | Page 6 of 8
Evaluation Board User Guide
