Features
•
Enables easy evaluation of the AD8460
• Easy connection to any controller board
• Robust thermal management
Applications
• Automatic test equipment (ATE)
• Display panel formation and testing
• Piezo drivers
• Programmable power supplies
Evaluation Kit Contents
• EVAL-AD8460SDZ evaluation board
• Aluminum heat sink
• Tubeaxial fan
Hardware and Software Required
• SDP-H1 or SDP-B controller board, must be
purchased separately
• ACE software
• EVAL-AD8460SDZ ACE plugin
General Description
This user guide describes the EVAL-AD8460SDZ board,
which evaluates the AD8460 offered in a 12 mm × 12 mm,
80-lead thin quad flat package (TQFP) with an exposed
pad at the top for a mountable heat sink. The evaluation
board provides a platform for quick and easy evaluation of
the AD8460 for various user-defined configurations.
The AD8460 is ideally suited for demanding applications
such as high-speed arbitrary waveform generation,
programmable power supplies, and LCD/OLED panel
formation.
The evaluation board hardware and software enable full
operation of the AD8460 analog pattern generation (APG)
and arbitrary waveform generation (AWG) modes. The
AD8460 data sheet provides the full specifications of the
AD8460 and details on the device operation. Consult it in
conjunction with the user guide.
Rev.0
O n e A n a l o g Wa y , W i lm i ng t o n, M A 0 1 8 8 7 - 2 3 5 6 , U . S . A .
Arrow.com.
Downloaded from
Evaluating the AD8460 High Power, High Speed Arbitrary Waveform Driver
Evaluation Board User Guide

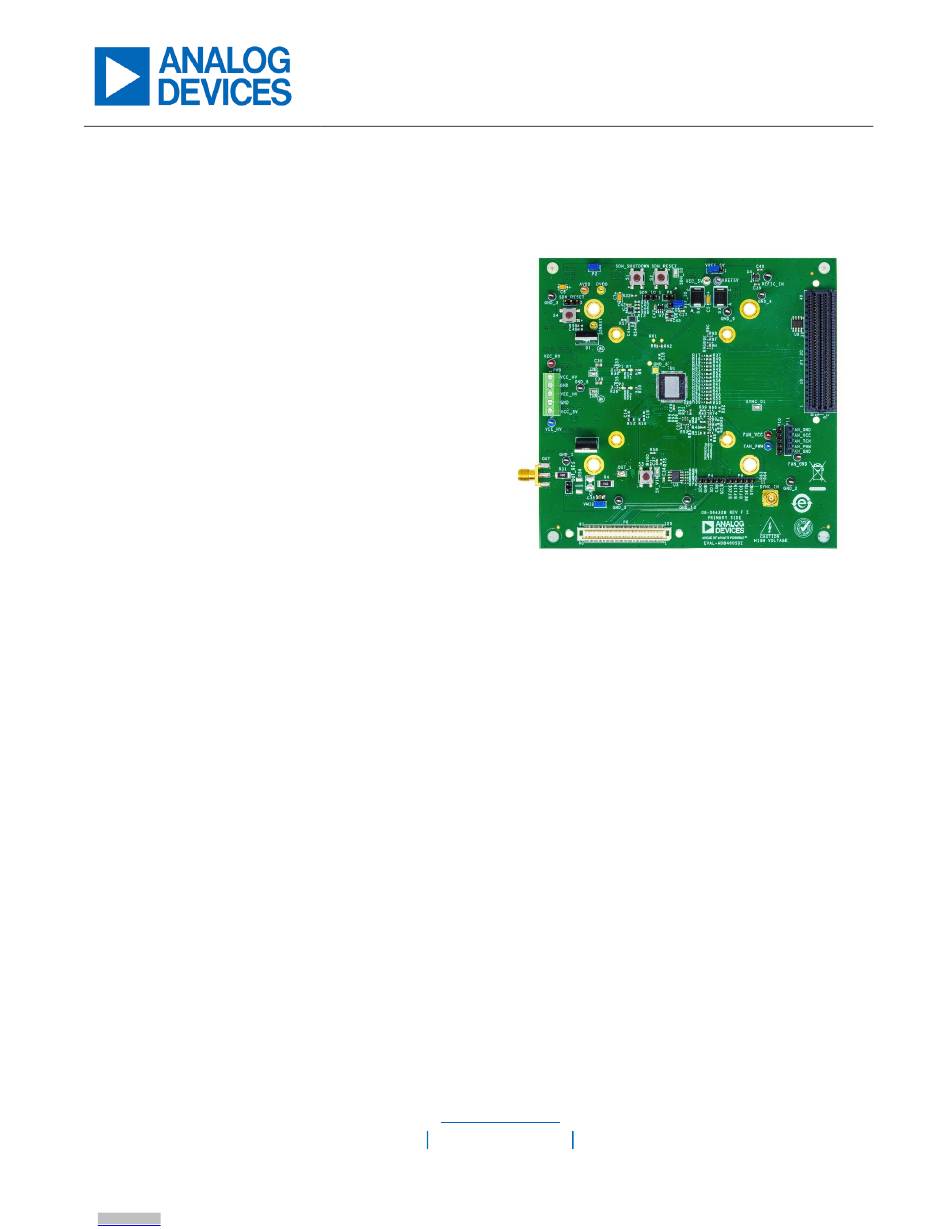

Evaluation Board Photographs

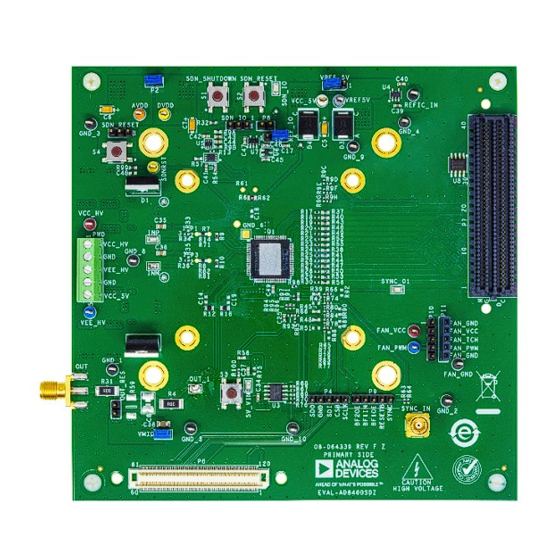

Figure 1. Front of AD8460 Evaluation Board
Warning: This high voltage evaluation board contains
exposed metal carrying lethal voltages when under power.
Take all necessary steps to protect users during operation.
For full precautions when using this high voltage
evaluation board, see the
section.
DOCUMENT FEEDBACK
T e l : 7 8 1 . 3 2 9 . 4 7 0 0
© 2 0 2 3 A n a l o g D e v i c e s , In c . A l l r i g h t s r e s e r v e d .
AD8460
High Voltage Evaluation Board
TECHNICAL SUPPORT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD8460 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analog Devices AD8460

Summary of Contents for Analog Devices AD8460

  • Page 1 This user guide describes the EVAL-AD8460SDZ board, Take all necessary steps to protect users during operation. which evaluates the AD8460 offered in a 12 mm × 12 mm, For full precautions when using this high voltage 80-lead thin quad flat package (TQFP) with an exposed...

  • Page 2: Initial Setup

    The AD8460 evaluation board communicates with Microsoft Windows 10 and ACE software through the SDP board. The AD8460 evaluation board and SDP controller boards are ordered separately. There are two types of SDP boards that can interface with the AD8460 evaluation board: SDP-B and SDP-H1.

  • Page 3: Evaluation Board Software Installation

    Figure 4. Plugin Available Through ACE Plugin Manager Updating Installed Plugins If an earlier version of the AD8460 plugin is already installed, update to the newest version by following these steps. 1. Go to Plugin Manager and select Available Updates.
  • Page 4 Evaluation Board User Guide Figure 5. AD8460 Evaluation Board Factory Default Jumper Position Spread a thin layer of low-impedance thermal compound about 1 ml thick on top of the AD8460. Apply Kapton tape to the edges of the heatsink, as seen in Figure 6, to not touch the AD8460.
  • Page 5 Figure 7. AD8460 Evaluation Board with Heat Sink Secure the four fan standoffs (PN 2114-440-AL) onto the board with four screws (PN 9900) from the bottom of the board, as seen in Figure Figure 8. AD8460 Evaluation Board with Fan Standoffs Attached analog.com Rev.0 5 of 31 Arrow.com.
  • Page 6 FAN_VCC of the female connector P11. See Figure FAN CONNECTION Figure 9. AD8460 Evaluation Board with Fan Attached Secure the four plastic standoffs (PN 1902C) to the back of the board with four plastic screws (PN NY PMS 440 0025 PH), as seen in Figure Figure 10.
  • Page 7 Turn off the supplies. Mate the SDP-H1 board to the AD8460 board through P6, the 120- pin connector at the bottom side of the AD8460 board, if using APG mode only. For a more secure connection, screw the boards together through the connectors’ mounting holes.
  • Page 8 High Z. Run the ACE application. The AD8460 Board plugin for P6-connected board or the AD8460 FMC Eval Board plugin for P- 7 connected board appears in the attached hardware section of the Start tab. Refer to item 1 in the Known Issues section if the board does not appear under the attached hardware section.
  • Page 9 Figure 16. Successful Connection Indicator for FMC Connected Board The AD8460 main functions are labeled in the Block Diagram View or Chip View. This view can be accessed by double- clicking the AD8460 symbol in the board view. This view provides a basic representation of the board’s functionality.

  • Page 10: Block Diagram And Description

    This button and LED indicator light up green in normal operation and red when the part goes into shutdown. Shutdown Reset After a shutdown event due to a fault condition, reset the shutdown feature to turn the AD8460 back on. This button resets the shutdown feature by writing a 1 and then a 0 to bit[7] of 0x00.
  • Page 11 Note that by clicking Read All, all software changes not applied to the device are removed. Memory Map Side-By-Side: Shows the memory map of the AD8460 side by side with the chip plugin. This can be useful in seeing what changes to the plugin bind with which hardware register.

  • Page 12: Quick Start

    AD8460 Evaluation Board User Guide Play: Playback the recorded commands. Edit Script: Make changes, skip commands, set up break points, and make notes for future use to a recorded macro. Save/Save As: Save the macro for future use. Open: Close an open macro. Open multiple macros and play with them as needed.
  • Page 13 To create a square wave of 60 Vp-p, set the Output Voltage Level box 1 to ‘30’, and Box 2 to ‘−30’. The corresponding hexadecimal DAC code values automatically reflect this change. 4. To protect the AD8460 from overheating, do the following in the temperature column of the Protection Panel: a. Check the Enable Protection box.
  • Page 14 2. Plugin steps: a. Use the Input Mode Switch to select the AWG mode. b. Wake the AD8460 HVDAC by unticking the HV DAC SLEEP box. Click Apply Changes. d. Click on Proceed to AWG TX o advance to the vector transmission tab.
  • Page 15 AD8460 Evaluation Board User Guide 3. Generating a 5 kHz 8 Vpp Sine Wave a. Enter the values for Desired Frequency and Attenuation (Figure 25) of the sine wave. The vector DefaultSingleTone shows the values for 8 Vpp sinewave at 5 kHz. Amplitude is 80 Vpp for 0 dB attenuation, 40 Vpp for 6 dB, 20 Vpp signal for 12 dB, 8 Vpp for 20 dB, etc.
  • Page 16 AD8460 Evaluation Board User Guide b. Select the desired vector from the Channel0 Data dropdown. Click Preview to double check the selected vector. Figure 27. Vector Selection and Default Preview d. Click Zoom to Fit in the waveforms tab so the preview looks like Figure Figure 28.
  • Page 17 SDN_IO pin on the AD8460 to logic high or logic low, respectively. When SDN_IO is pulled high, the AD8460’s supply current is reduced to ~100 µA and the internal high voltage driver is disabled. The S4 switch button toggles the SDN_RESET pin on the AD8460 high. This is an alternative way of exiting a state of shutdown.
  • Page 18 AD8460 Evaluation Board User Guide Figure 29. Front of AD8460 Evaluation Board with Highlighted Hardware Features Figure 30. Back of AD8460 Evaluation Board, TMP Monitor is Highlighted analog.com Rev.0 18 of 31 Arrow.com. Downloaded from...

  • Page 19: Troubleshooting Errors

    Evaluation Board User Guide Troubleshooting Errors 1. AD8460 board does not appear in the attached hardware section: a. Check for a firm connection between the SDP board and evaluation board. b. Check the power of the SDP board and reconnect the USB.

  • Page 20: Ordering Information

    Ordering Information Bill of Materials Item Qty. Reference Designator Part Description Manufacturer, Part No. IC, high-voltage, high- Analog Devices, AD8460BSVZ current amplifier C1, C2, C3, C4, C30, C31, Capacitor, ceramic, 1.2 Kemet, C2225C125KARACTU C32, C33 μF, 250 V, 10%, X7R, 2225 C10, C11, C20, C21, C26, Capacitor, ceramic, 0.1...
  • Page 21 AD8460 Evaluation Board User Guide P4, P9, P10 Connector-PCB, 5 Samtec, TSW-105-08-G-S position header Connector-PCB, 5 Samtec, SSQ-105-03-G-S position female header, 10 mm solder tail Connector-PCB, board Hirose Electric, FX8-120S-SV(21) to board connector Connector-PCB, 160 Samtec, ASP-134604-01 position connector array...
  • Page 22 On Semiconductor, NL27WZ125USG state outputs IC, 32 kb serial Microchip Technology, 24LC32A/SN electrically erasable programmable read- only memory (EEPROM) IC, low power, low noise Analog Devices, ADR365BUJZ with sink/source capability IC-ADI, rail-to-rail, fast, Analog Devices, ADCMP608BKSZ low power transistor- transistor (TTL)/componentized metal-oxide...
  • Page 23 AD8460 Evaluation Board User Guide EEPROM, 1.8 V to 5.5 VCC_5V Connector-PCB test Components Corporation, TP-104-01-09 point white VREF_5V Connector-PCB test Components Corporation, TP104-01-08 point grey C14, C19 Capacitor, ceramic, 2 MURATA, GQM1875C2E2R0BB12 pF 250 V, 0.1 pF, C0G 0603...
  • Page 24 AD8460 Evaluation Board User Guide R68, R69 Resistor, surface-mount Yageo, RC0402JR-070RL device (SMD), 0 Ω, jumper 1/16 W, 0402 R71, R81 Resistor, through hole, Vishay, Y006250R0000T9L 50 Ω 0.01%, 3/5 W, 7.62 mm x 2.67 mm x 8.53 mm x 3.81 mm,...
  • Page 25 AD8460 Evaluation Board User Guide AD8460 Evaluation Board Schematic AD8460 TQFP AGND SDN_RESET SDN_RESET IOUTP IOUTP IOUTN IOUTN SPARE PIN SPARE PIN SPARE PIN SPARE PIN AD8460_V2 SPARE PIN SPARE PIN SPARE PIN SPARE PIN SPARE PIN SPARE PIN SPARE PIN...
  • Page 26 AD8460 Evaluation Board User Guide Figure 32. AD8460 Evaluation Board Connections analog.com Rev.0 26 of 31 Arrow.com. Downloaded from...
  • Page 27 AD8460 Evaluation Board User Guide SDN_IO READ/WRITE VCC_5V SDN_IO DVDD_3P3V B3S-1000 SDN_IO AGND BUFF1_OE AGND SDN2 SDN_IO OE1_N B3S-1000 BUFF1_IN BUFF2_OE AGND OE2_N SDN_IO_1 VCC_5V NL27WZ125USG AGND VREF_5V TSW-103-08-G-S AGND R100 RESETB_2 VCC_5V AGND B3S-1000 AD8468WBKSZ AGND SDNRST AGND DVDD_3P3V...
  • Page 28 AD8460 Evaluation Board User Guide BYPASS CAPS & ESD PROTECTION VCC_HV VEE_HV VMID VMID 0.1UF 250V TSW-102-09-G-S 1.2UF 0.1UF 0.1UF 0.1UF 0.1UF 1.2UF 1.2UF 1.2UF 1.2UF 0.1UF 0.1UF 0.1UF 0.1UF 1.2UF 1.2UF 1.2UF 250V 250V 250V 250V 250V 250V 250V...
  • Page 29 AD8460 Evaluation Board User Guide SYNC_IN 120-PIN SDP CONNECTOR SYNC_SMB SYNC VCC_1 VCC_1 VCC_1 142134 RESET_IN_N BMODE1 UART_RX UART_TX AGND RESET_OUT_N SLEEP_N EEPROM_A0 WAKE_N AGND SYNC_SDP1 SYNC_SDP SYNC_SMB CLKOUT TMR_C TMR_D 24LC32A/SN TMR_A TMR_B GPIO6 GPIO7 SYNC_FMC BF2OE_SDP AGND BF1OE_FMC...

  • Page 30: High Voltage Evaluation Board

    Consult the evaluation board user guide prior to connecting any load to the evaluation board output. If there is unceramictainty as to the load specification, contact an Analog Devices representative. During normal operation, some circuit components may generate significant heat, which may cause fire, melting, or burns. When placing measurement probes near these devices during normal operation, be aware that these devices may be hot.
  • Page 31 Evaluation Board User Guide ASSUMED BY ANALOG DEVICES FOR ITS USE, NOR FOR ANY INFRINGEMENTS OF PATENTS OR OTHER RIGHTS OF THIRD PARTIES THAT MAY RESULT FROM ITS USE. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. NO LICENCE, EITHER EXPRESSED OR...
