Connecting and switching on the system

3.

3.1 Connection

For operation, the plusoptiX R09 must be connected to a monitor and keyboard with a
mouse. The monitor must fulfill the following system requirements:
Resolution: 1024 x 768 pixels
Interface: VGA
Four (4) USB ports of type A are available on the plusoptiX R09 for connecting e.g.
keyboard, mouse or USB-sticks.
Where a monitor is already available at a workstation, a switch (Monitor Switch TK 207
by "Trendnet") can be used to connect this monitor to the plusoptiX R09. This allows
you to save space by using the monitor for the plusoptiX R09.
Connect the VGA cable from the monitor to the plusoptiX R09. The keyboard and
mouse can be connected to the plusoptiX R09 by means of a USB cable or a wireless
USB adapter. Attach the 12V DC connector to the plusoptiX R09 and the medical
power unit to a 110 – 220 V AC (50 – 60 Hz) power plug. Ensure that the power plug is
switched off after close of business. This is a precaution in case a short-circuit occurs
during night-time which may cause a fire.

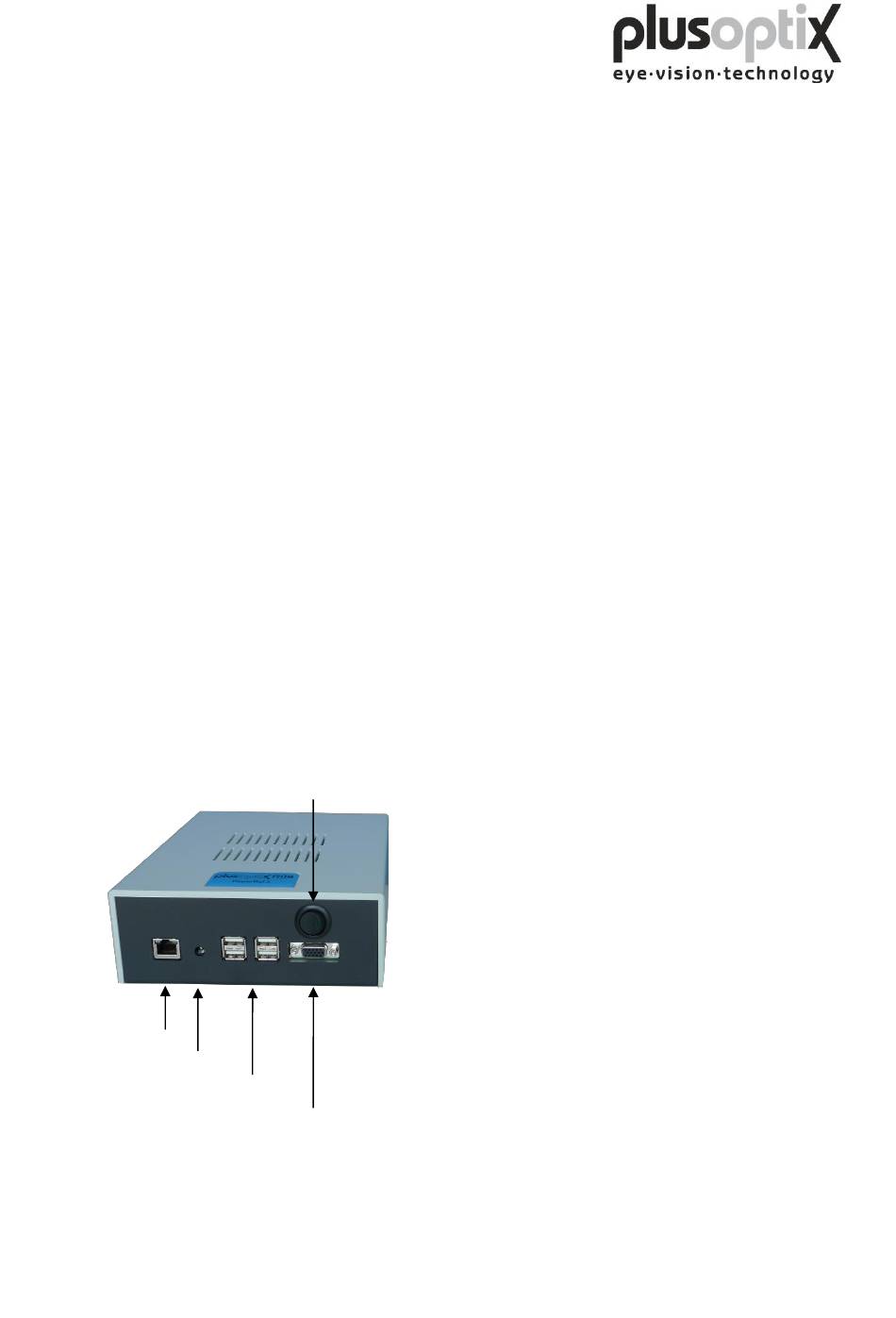

Fig. 1: Location of the connectors on the plusoptiX R09
RJ-45
12VDC
4 x USB
on/off switch
VGA
Page 8 of 34
