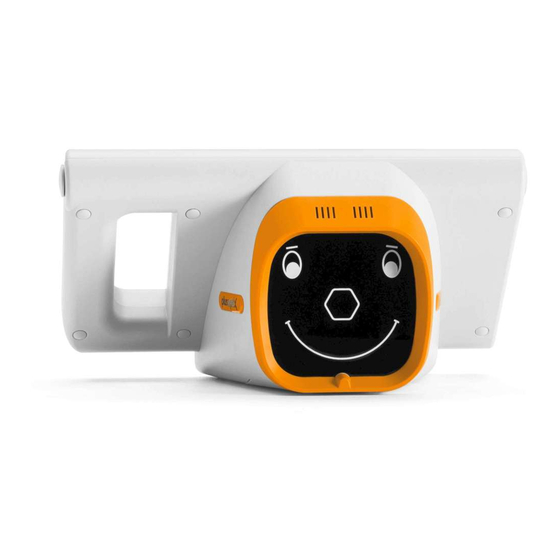

PLUSOPTIX S12C Short Manual
Vision screener.
documenting measurement results on paper
Hide thumbs
Also See for S12C:
- User manual (25 pages) ,
- Short manual (11 pages) ,
- Software update (2 pages)
Related Manuals for PLUSOPTIX S12C
Summary of Contents for PLUSOPTIX S12C

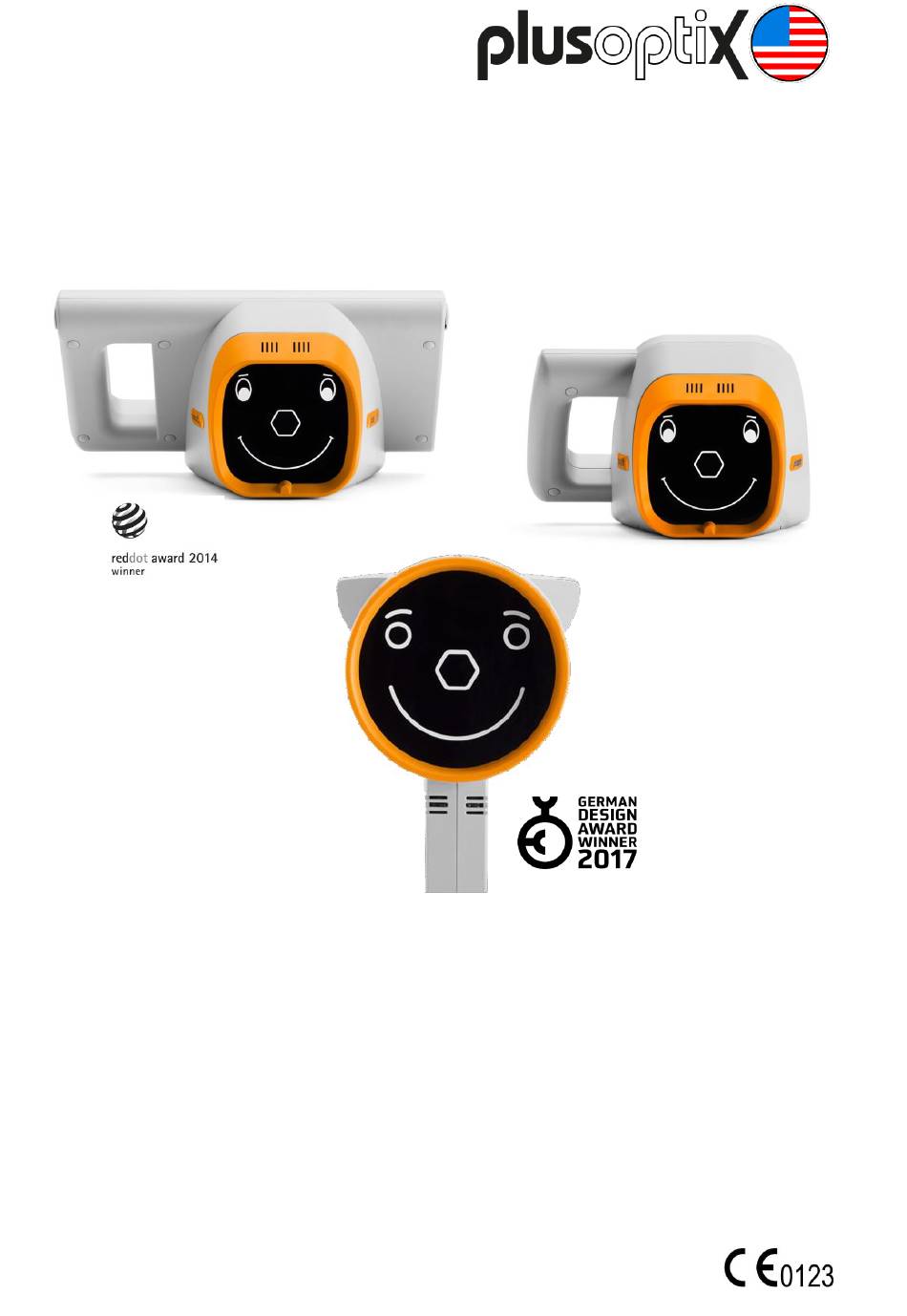

- Page 1 Vision Screener Short Manual 6 “Documenting measurement results on paper” Plusoptix GmbH Neumeyerstrasse 48 90411 Nuremberg Germany www.plusoptix.com Edition: 10/18/2018...
-
Page 2: Table Of Contents
Adding an individual infographic ................. 5 Printing screening reports on a network printer ............6 Printing screening reports on a mobile USB printer (only plusoptiX S12) ....9 Printing self-adhesive label with “plusoptiX P12” (optional accessory) ......10 List of figures Figure 1: Example of a screening report (Letter-sized or DinA4) ........... -
Page 3: Documenting The Measurement Results - An Overview
More information about entering or retrieving patient data can be found in supplementary short manual 4. As an alternative to manual entry of the patient data, the plusoptiX S12C and S16 can also be connected for a full integration with your EMR system (see supplementary short manual 5 “Documenting measurement results electronically”). -
Page 4: Printing Screening Reports
If the patient data has already been entered or retrieved before the measurement in the plusoptiX S12C or S16 model, the screening report is automatically saved to a SD card as a PDF file at the end of every successful measurement. If you see the status message “Try again”, the screening report must be saved manually. -
Page 5: Adding An Individual Infographic
PDF file name: Last name_FirstName-YYYYMMDD-HHMMSS-refer.pdf Note: If a patient ID has been entered in the Plusoptix Vision Screener instead of or as well as the patient name, this patient ID will be visible in the file name instead of the patient name... -
Page 6: Printing Screening Reports On A Network Printer
Manual connection of the SD card or USB stick to a workplace computer Connect the SD card (plusoptiX S12) or USB stick (plusoptiX S16) to a workplace computer. The storage will be displayed as “removable medium” in your Windows Explorer or Apple Finder. -
Page 7: Figure 3: Manual Network Access
“plusoptiXconnect” is a freeware programme for automated connection and printing of screening reports. The plusoptiX S12C (WLAN) or S16 (LAN and WLAN) must be connected to the network via LAN or WLAN, too. The screening reports stored on the SD card or USB stick can now be portrayed and printed automatically on your workplace computer. -
Page 8: Figure 5: Manual Connection Via Hotspot On Your Smartphone
Figure 5: Manual connection via hotspot on your smartphone - Set up a hotspot on your smartphone - Check the network name and password of the hotspot - Connect the Plusoptix device with the established hotspot by selecting the network name and entering the password Device name Figure 6: Choose "hotspot"... -
Page 9: Printing Screening Reports On A Mobile Usb Printer (Only Plusoptix S12)
To print a measurement report on the mobile USB printer “HP OfficeJet 200”, the mobile printer must be connected to the “plusoptiX S12” device via a USB cable. As soon as a measurement report is saved on the SD card, a print job is sent to the mobile USB printer “HP OfficeJet 200”... -
Page 10: Printing Self-Adhesive Label With "Plusoptix P12" (Optional Accessory)
(plusoptiX S12) or USB stick (plusoptiX S16) at the same time. To print a self-adhesive label, you just need to hold the camera towards the “plusoptiX P12” label printer to print a self-adhesive label. The “plusoptiX P12” prints self-adhesive labels on heat-sensitive paper (i.e.
