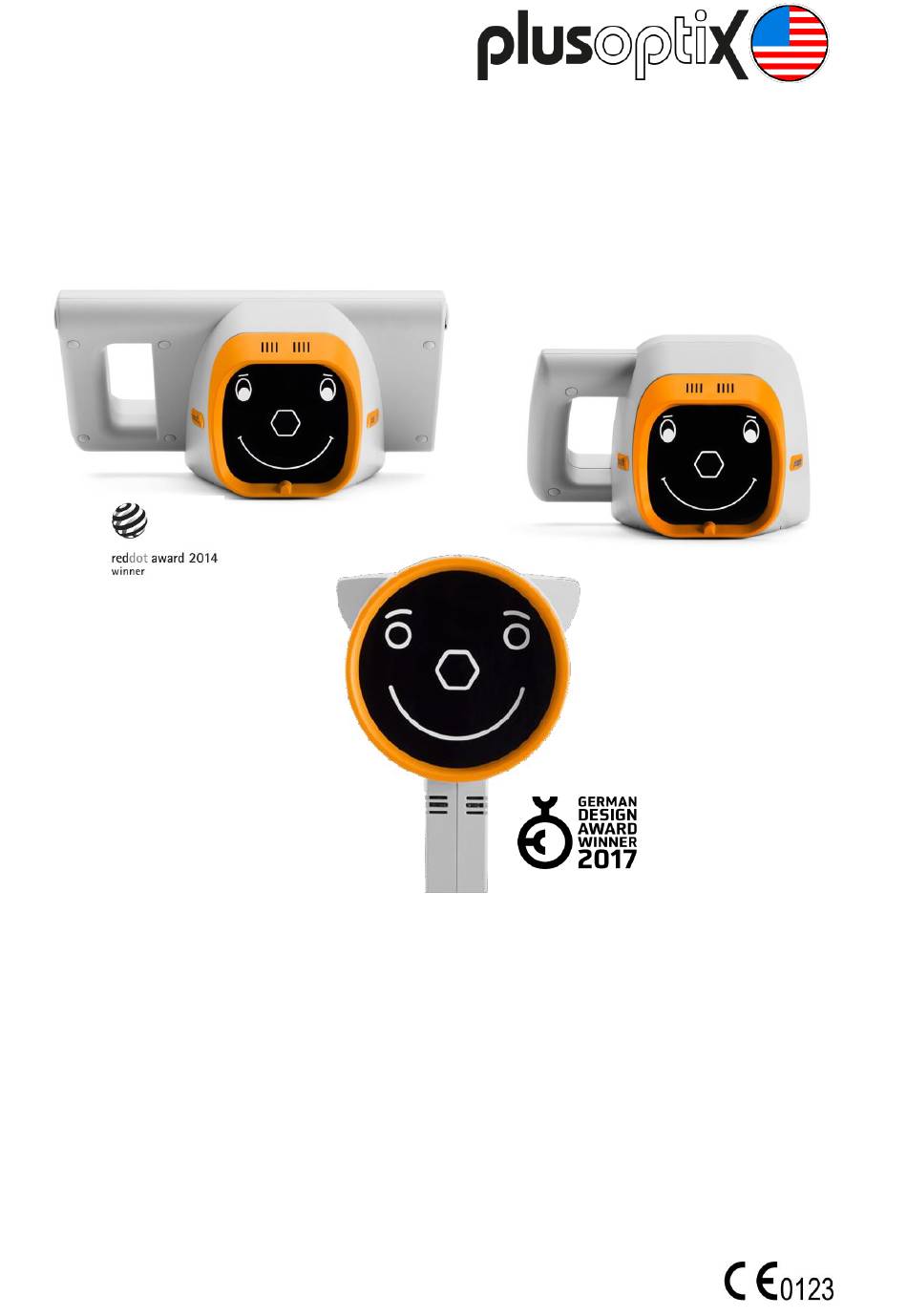

- Page 1 Vision Screener Short Manual 3 “Viewing the measurement results” Plusoptix GmbH Neumeyerstrasse 48 90411 Nuremberg Germany www.plusoptix.com Edition: 09/17/2018...
-
Page 2: Table Of Contents
Viewing the measurement results ..................3 “Camera image” results page ..................4 “Measurement values” results page ................. 5 “Database” results page (only plusoptiX S12C and S16) ..........6 Performing the next measurement ................... 7 List of figures Figure 1: Overview of the results pages ................3 Figure 2: “Camera image”... -
Page 3: Viewing The Measurement Results
As space on the screen is limited, the measurement results are spread across a total of two (plusoptiX S12R), or three screens (plusoptiX S12C and S16) respectively. After the measurement, you will first see the “camera image” results page. By touching the appropriate button in the middle of the navigation bar, you can access each of the three results pages. -
Page 4: Camera Image" Results
2 “Camera image” results page Checking the last camera image means you can detect media opacities, which do not lead to a measurement interruption. In addition to the measurement values, a screening result is displayed: The measurement has been successfully completed and the “Refer” or “Pass”... -
Page 5: Measurement Values" Results
A measurement is then not possible and it will be interrupted inconclusively. The Plusoptix Vision Screener compares the lines of vision of both eyes and calculates the asymmetry of the lines of vision (ASY). An asymmetry of 0° is equivalent to perfect symmetry. -
Page 6: Database" Results Page (Only Plusoptix S12C And S16)
SD card (plusoptiX 12) / USB stick (plusoptiX 16). For more information about the documentation of measurement results, please see supplementary short manual 5 and 6. -
Page 7: Performing The Next Measurement
5 Performing the next measurement Attention: Following an anonymous measurement, a screening report is not saved automatically. As soon as you return to the home page without previously saving, the screening report can no longer be saved and / or printed. The measurement values, on the other hand, are saved under a consecutive number when you take an anonymous measurement.
