EVALUATION BOARD HARDWARE

Figure 1 shows the ADAR1000-EVALZ, with 13 high frequency
connectors for the four transmit outputs, four receive inputs,
four detector inputs, and a common RF input and output. Four
on-board banana jacks provide power supply connections and a
connector for an SDP adapter board that interfaces with the
USB on a Windows-based PC. Dual row, square pin headers allow
connections to four transmit and receive modules, as well as the
daisy-chaining of up to four ADAR1000-EVALZ boards together.
The ADAR1000-EVALZ requires an
board to program the device. The ADAR1000-EVALZ evaluation
software and the examples provided in this user guide both make
use of this SDP connection. The SDP adapters are not included
with the ADAR1000-EVALZ, but these adapters are available
through local Analog Devices distributors, as well as on the
product page.
The interface signals on the ADAR1000
digital interface circuitry, are made available on the ADAR1000-
EVALZ, as shown in Figure 2.

POWER SUPPLY REQUIREMENTS

The ADAR1000-EVALZ is powered via two external supplies
(see Table 1). Connections to the ADAR1000-EVALZ are
described in the Quick Test Procedure section. Note that the
−3.3 V banana jack has no function and therefore is not populated.
RX2
RF_IO
DET3
User Guide
SDP-S or SDP-B adapter
SDP
core chip, plus additional
DET2 RX1
TX2
TX3
RX3 DET4

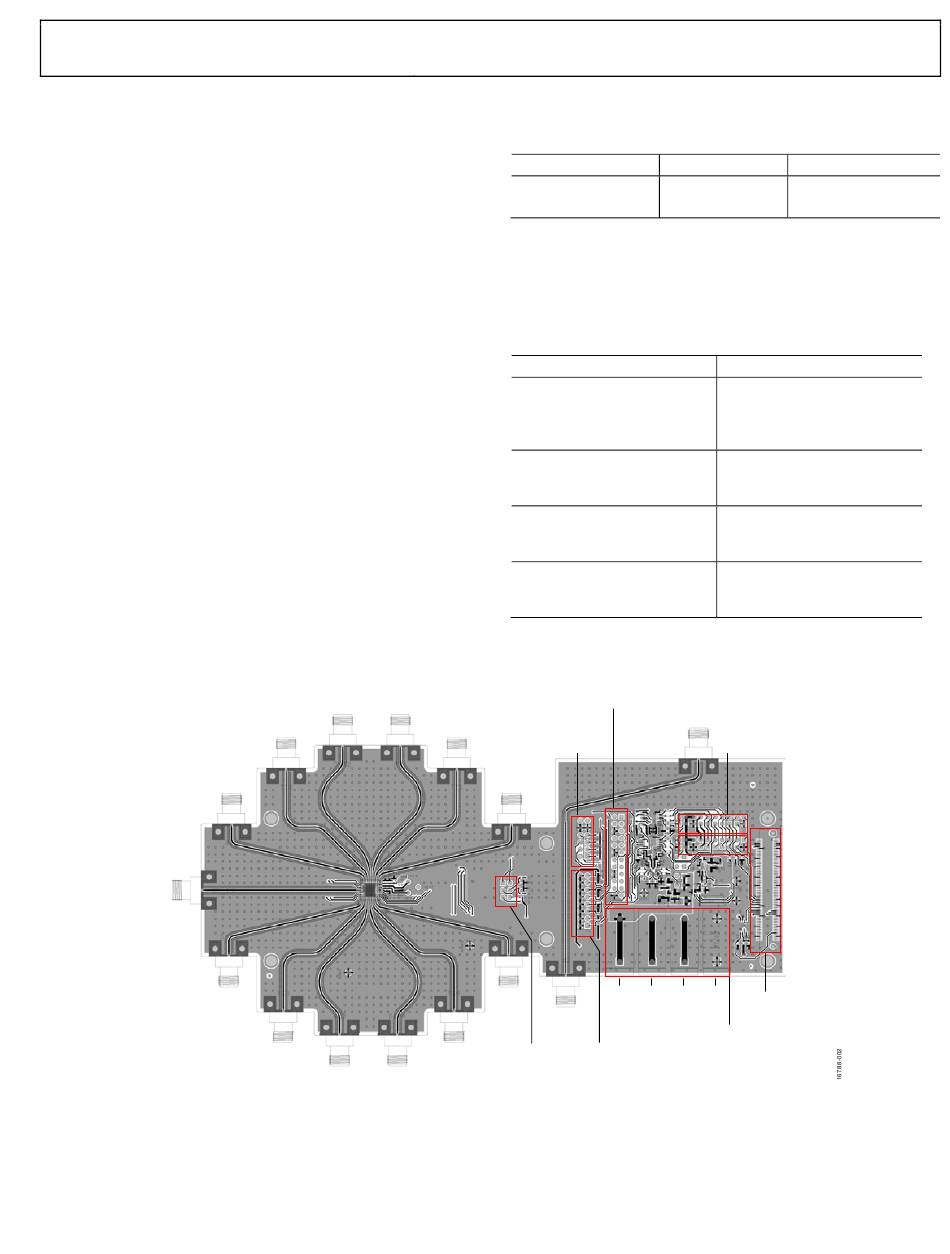

Figure 2. ADAR1000-EVALZ Evaluation Board Connections
Table 1. External Supply Details
Pin Supply
AVDD3
AVDD1

RADIO FREQUENCY INPUT AND OUTPUT SIGNALS

The ADAR1000-EVALZ has 13 edge mounted SMA connectors
for RF inputs and outputs (see Table 2).
Table 2. SMA Connectors
Connector
RF_IO
RX1 to RX4
TX1 to TX4
DET1 to DET4
P9
TRANSMIT AND RECEIVE
MODULE INTERFACE
TX1
P3 PMOD
INTERFACE
DET1
+3.3V –5V
RX4
J2
THROUGH
LINE
TX4 P10 ADDRESS P6 1.8V
SELECTION DIGITAL
INTERFACE
