UG-1283

MANUAL REGISTER WRITE TAB

The Manual Register Write tab (see Figure 37) allows manual
writes to the ADAR1000 registers, either individually (Values to
write) or grouped (Load and Write). In the Load and Write
section, click Choose Input File to load a list of register writes
from a file or paste one into the field directly. Click Write All to
send the list to the ADAR1000-EVALZ.
When the device is initially powered up, enter 00099 into the
Values to write section. Entering 00099 performs a full register
reset and enables the 4-wire SPI SDO function.

READBACK TAB

The ReadBack tab allows direct writing and reading of the
content of a register (see Figure 38).
Click Manual Write to write a string of hexadecimal digits
containing the address and data of a register into the register.
Enter the register address in the Register field and click Manual
Read for the content of the register to display in the Data field.

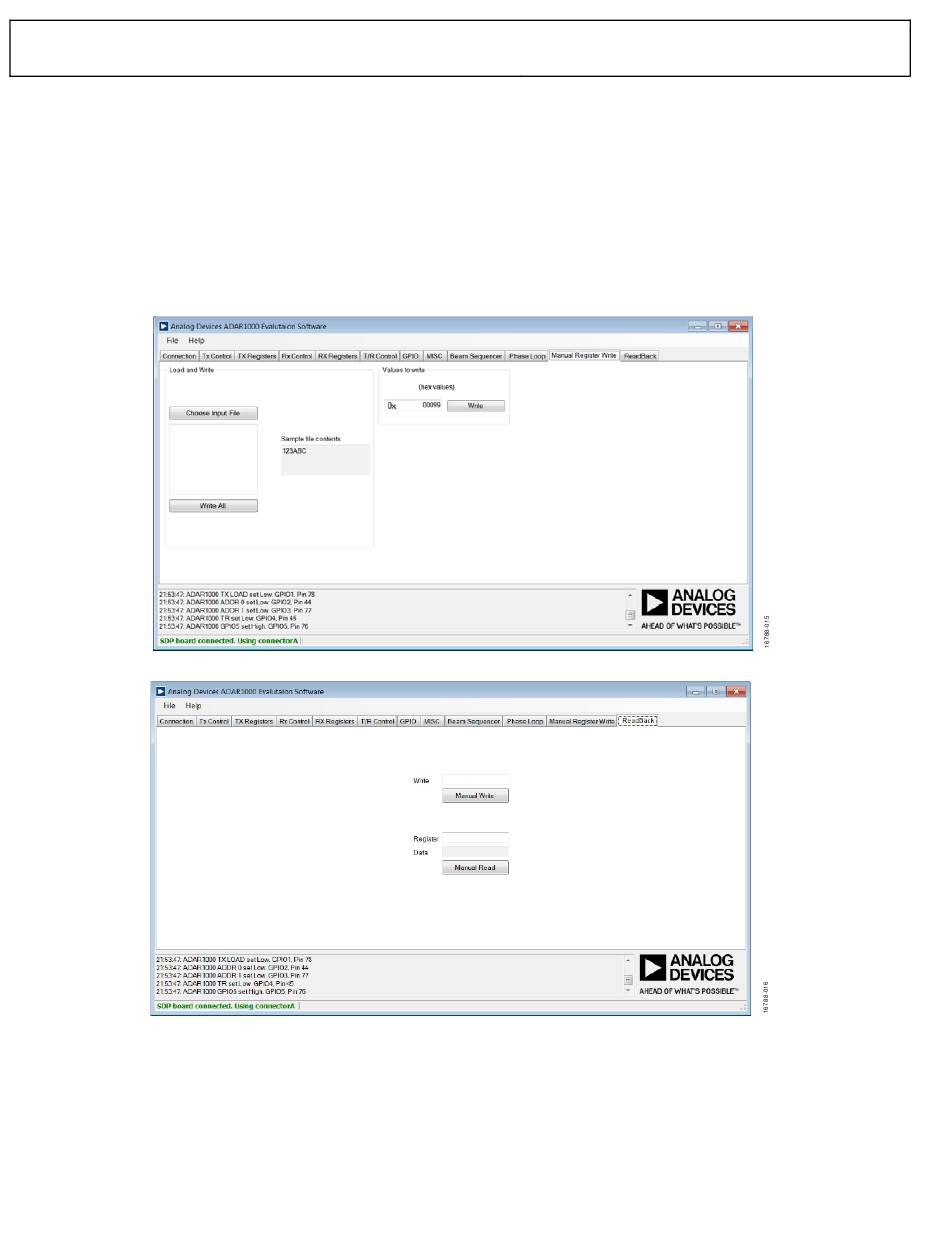

Figure 37. Manual Register Write Tab
Figure 38. ReadBack Tab
