UG-1283
To perform several writes that are stored in a .txt file, take the
following steps:
1. Click the Manual Register Write tab (see Figure 21).
2. Click Choose Input File.
3. Navigate to where the settings files are located (see Figure 22).
4. Open the desired file (Tx1_MaxG_45.txt, for example).
5. The values in the file appear in the larger text box on the
left side of the window, as shown in Figure 23.
6. Click Write All to load all values via the SPI.

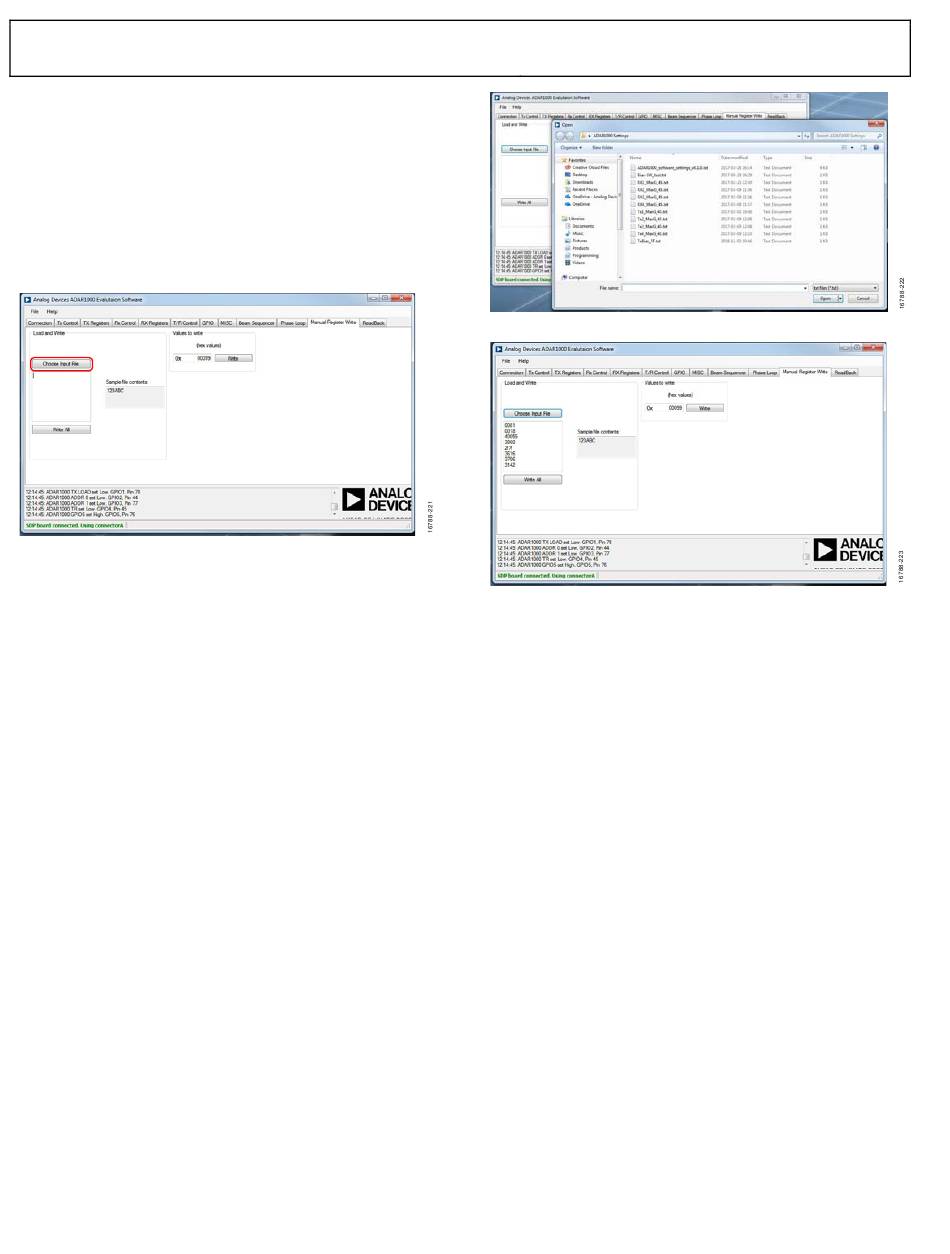

Figure 21. Manual Register Write Tab
Rev. A | Page 12 of 24
ADAR1000-EVALZ
Figure 22. Choose Settings File
Figure 23. Values to Write
User Guide
