Digit Recognition (AI) Demo Design

4 Digit Recognition (AI) Demo Design
The following figure shows the top-level AI digit recognition demo design in Libero.

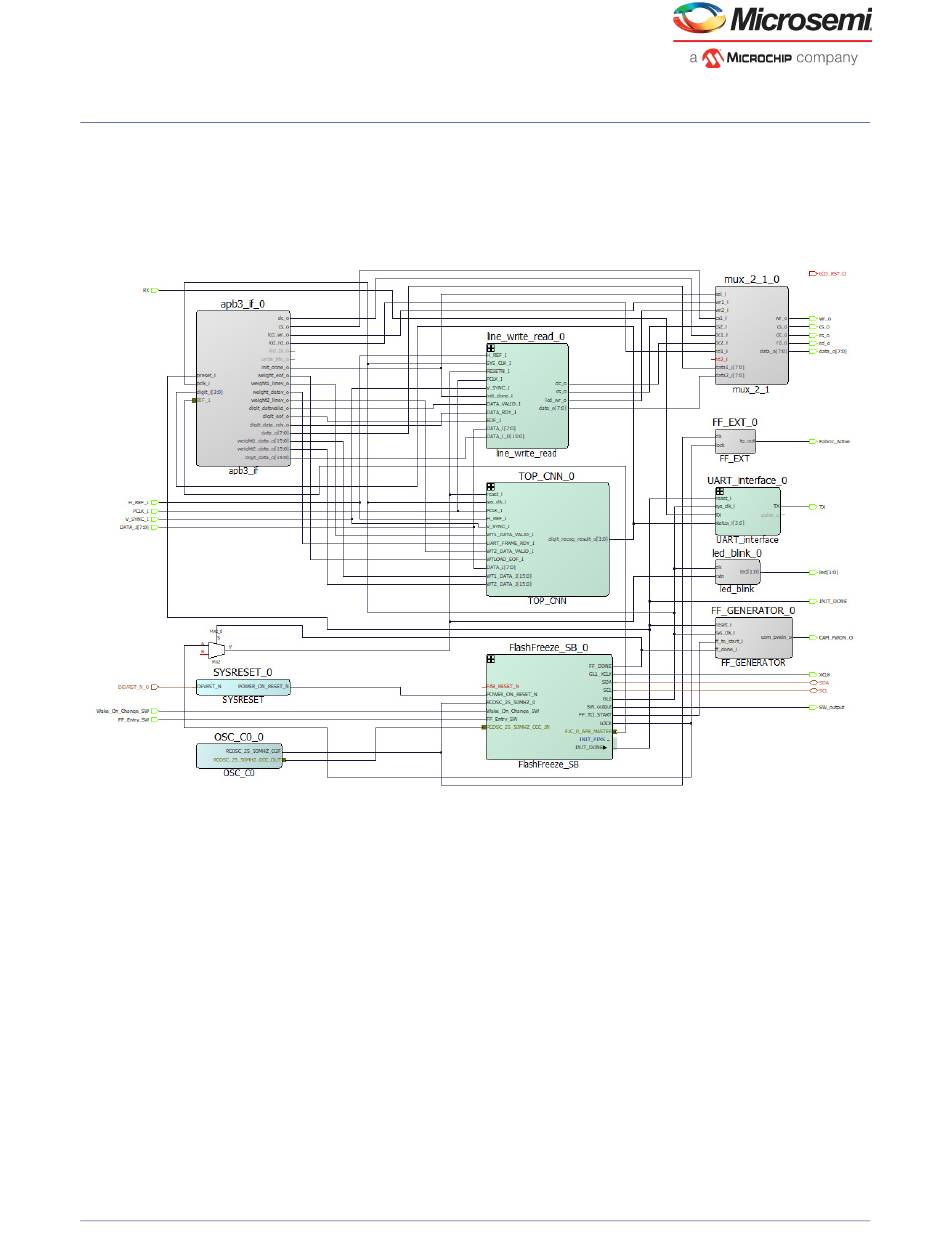

Figure 16 • Top-Level Hardware Implementation (AI Digit Recognition)
AI Digit Recognition libero project aims to show Artificial Intelligence (AI) application. The Libero design
for AI digit recognition is similar to the Video Demo Libero project with below additional modules.
• FlashFreeze SmartDesign,
• Apb3_if (APB slave),
• Line_write_read SmartDesign,
• TOP CNN,
page 14
page 15
page 16
page 16
Microsemi Proprietary UG0891 Revision 1.0 13
