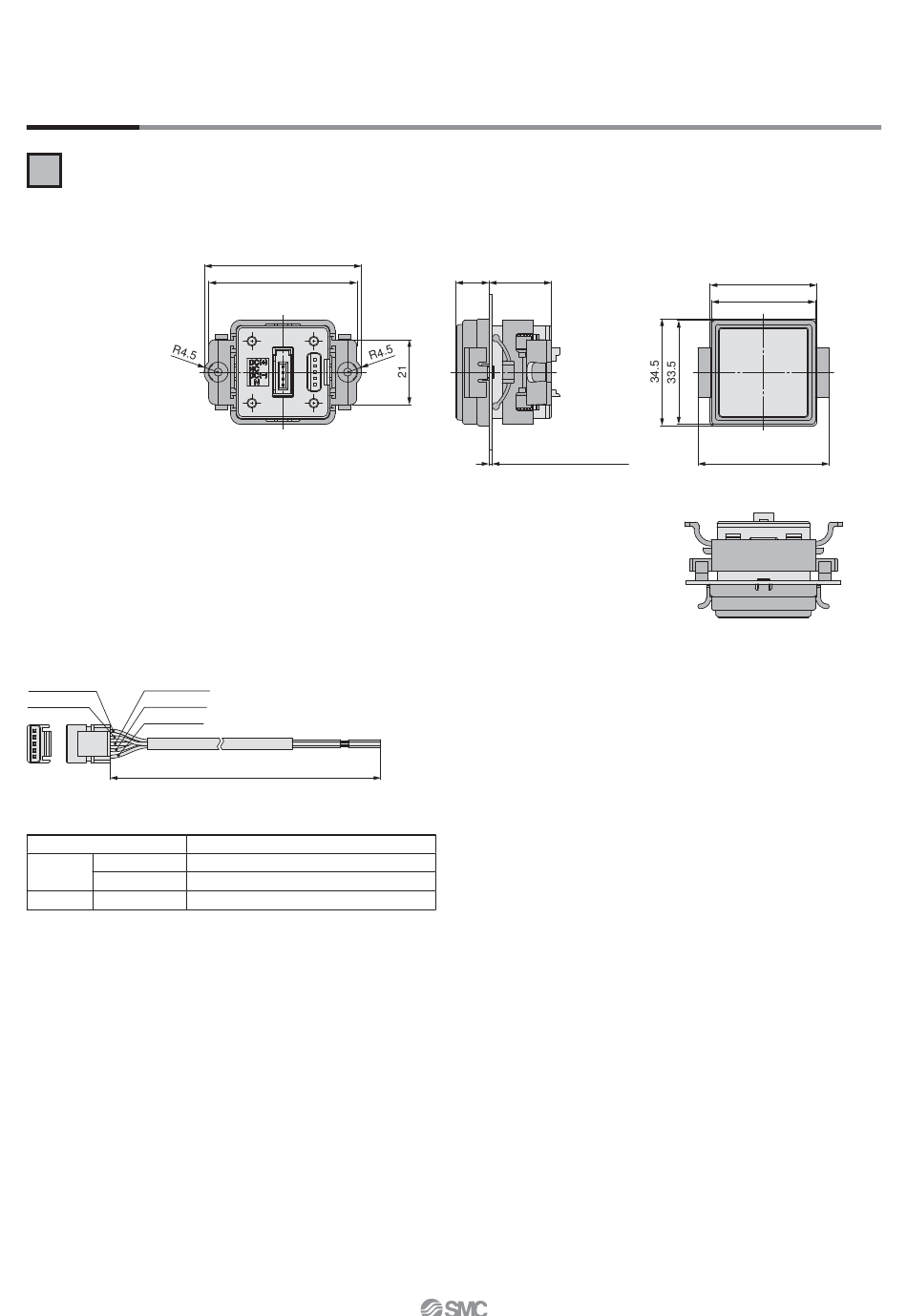

Dimensions
D
Panel mount adapter + Front protection cover
(Part no.: ZS-46-D)
Lead wire with connector
(Part no.: ZS-46-5L)
Brown DC(+) White OUT2
Black OUT1 Grey FUNC
Blue DC(−)
Cable Specifications
Conductor area
O.D.
Insulator
Colour
Sheath Finished O.D.
3-Screen Display Sensor Monitor
50.8
47.8
(2000)
2
0.15 mm (AWG26)
1.0 mm
Brown, Blue, Black, White, Grey (5-core)
Ø 3.5
PSE300A
11 20.2
Panel thickness: 0.5 to 7
Series
34.5
33.5
42.4
8
