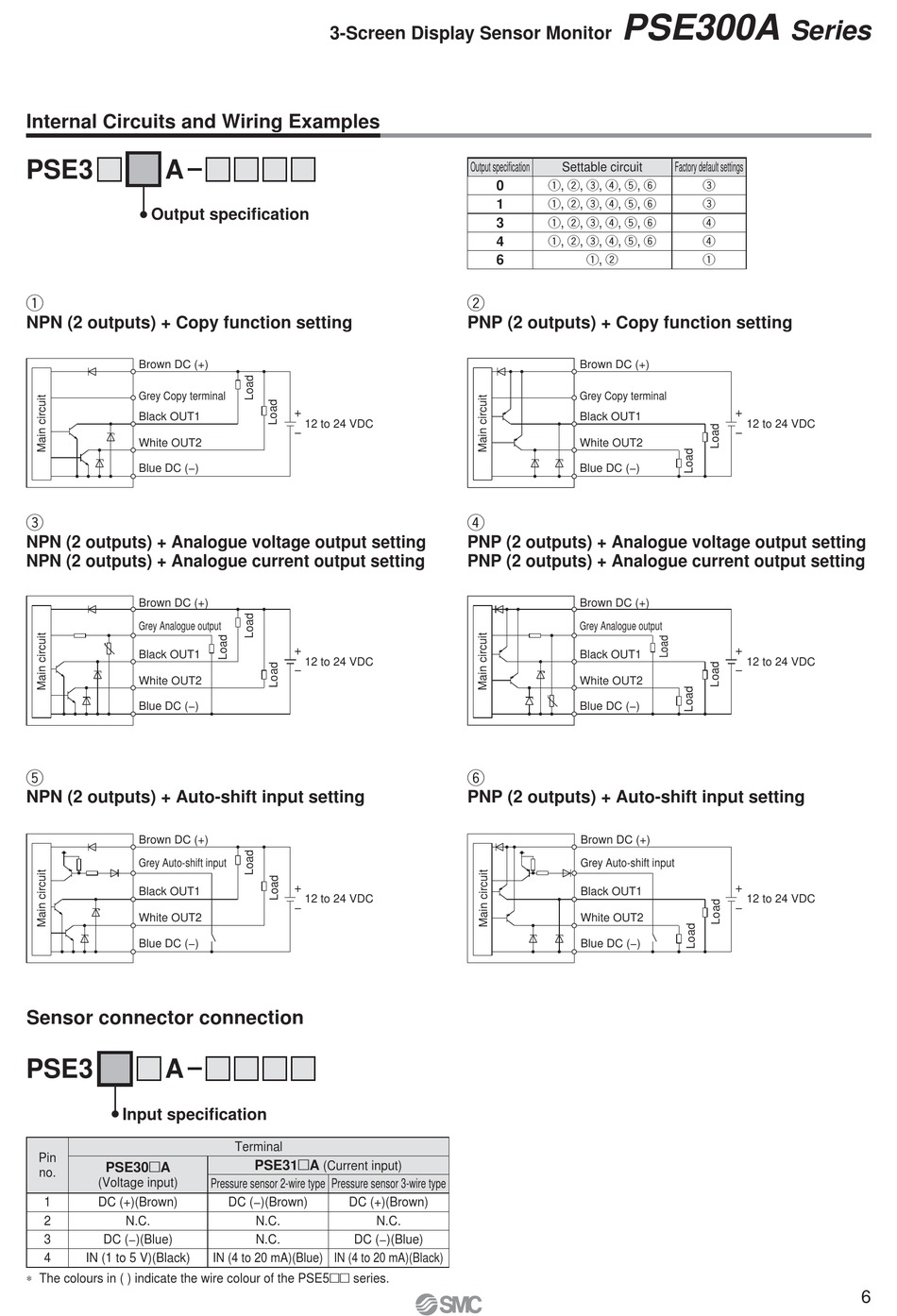

Internal Circuits and Wiring Examples
PSE3 A
Output specifi cation
q
NPN (2 outputs) + Copy function setting
Brown DC (+)
Grey Copy terminal
Black OUT1
White OUT2
Blue DC (−)
e
NPN (2 outputs) + Analogue voltage output setting
NPN (2 outputs) + Analogue current output setting
Brown DC (+)
Grey Analogue output
Black OUT1
White OUT2
Blue DC (−)
t
NPN (2 outputs) + Auto-shift input setting
Brown DC (+)
Grey Auto-shift input
Black OUT1
White OUT2
Blue DC (−)
Sensor connector connection
PSE3 A
Input specifi cation
Pin
PSE30 A
no.
(Voltage input)
1 DC (+)(Brown)
2 N.C.
3 DC (−)(Blue)
4 IN (1 to 5 V)(Black)
∗ The colours in ( ) indicate the wire colour of the PSE5
3-Screen Display Sensor Monitor
+
12 to 24 VDC
−
+
12 to 24 VDC
−
+
12 to 24 VDC
−
Terminal
PSE31 A
(Current input)
Pressure sensor 2-wire type Pressure sensor 3-wire type
DC (−)(Brown) DC (+)(Brown)
N.C. N.C.
N.C. DC (−)(Blue)
IN (4 to 20 mA)(Blue) IN (4 to 20 mA)(Black)
series.
PSE300A
Output specifi cation Settable circuit
q, w, e, r, t, y
0
q, w, e, r, t, y
1
3 q, w, e, r, t, y
q, w, e, r, t, y
4
q, w
6
w
PNP (2 outputs) + Copy function setting
Brown DC (+)
Grey Copy terminal
Black OUT1
White OUT2
Blue DC (−)
r
PNP (2 outputs) + Analogue voltage output setting
PNP (2 outputs) + Analogue current output setting
Brown DC (+)
Grey Analogue output
Black OUT1
White OUT2
Blue DC (−)
y
PNP (2 outputs) + Auto-shift input setting
Brown DC (+)
Grey Auto-shift input
Black OUT1
White OUT2
Blue DC (−)
Series
Factory default settings
e
e
r
r
q
+
12 to 24 VDC
−
+
12 to 24 VDC
−
+
12 to 24 VDC
−
6
