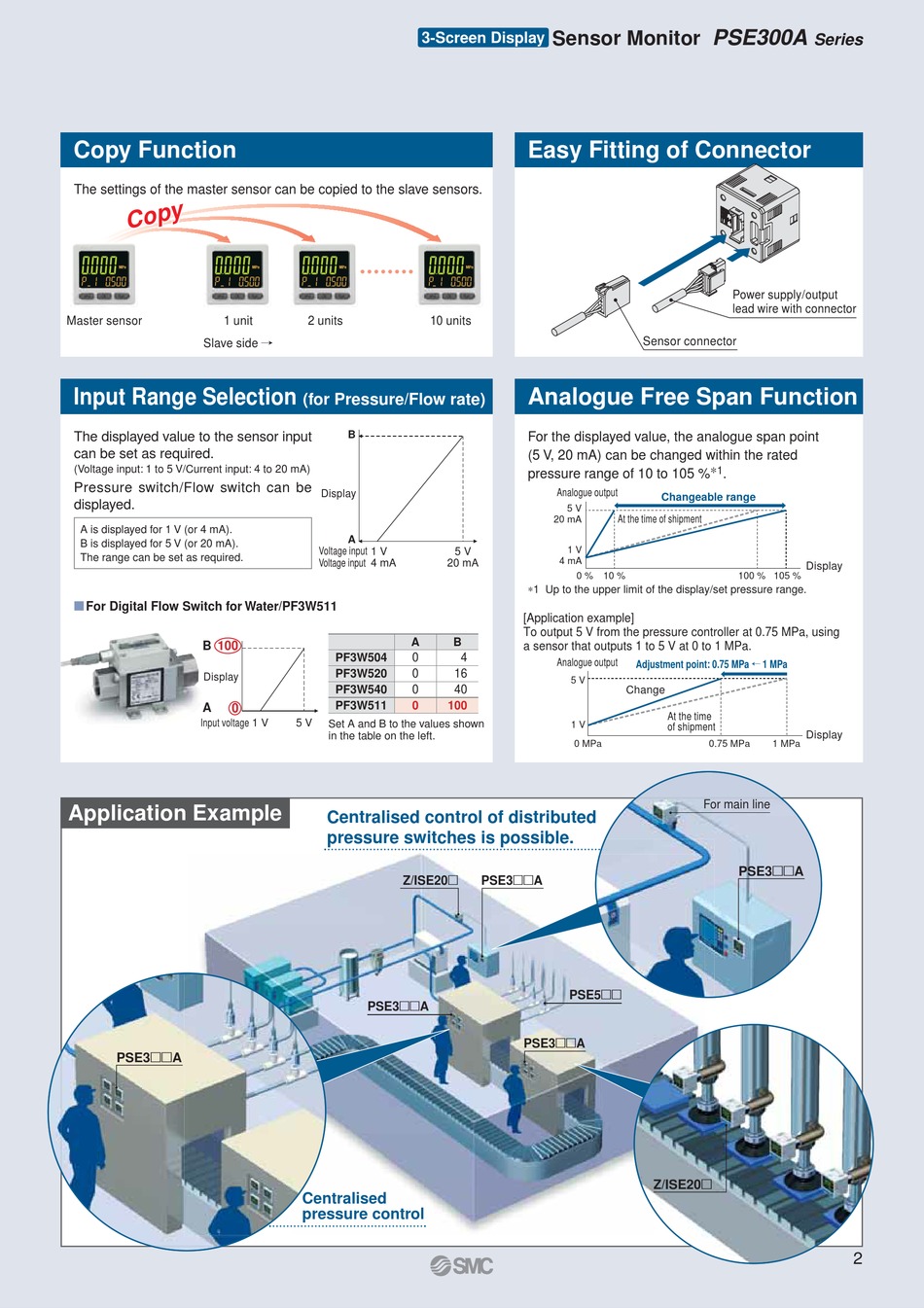

Copy Function; Input Range Selection; Application Example - SMC Networks PSE300A Series Manual

Copy Function

The settings of the master sensor can be copied to the slave sensors.
C o p y C o p y
Master sensor 1 unit
Slave side /

Input Range Selection

The displayed value to the sensor input
can be set as required.
(Voltage input: 1 to 5 V/Current input: 4 to 20 mA)
Pressure switch/Flow switch can be
displayed.
A is displayed for 1 V (or 4 mA).
B is displayed for 5 V (or 20 mA).
The range can be set as required.
For Digital Flow Switch for Water/PF3W511
B 100
Display
A 0
Input voltage

Application Example

PSE3 A
3-Screen Display
2 units
(for Pressure/Flow rate)
B
Display
A
Voltage input
1 V
Voltage input 4 mA
A
PF3W504 0
PF3W520 0
PF3W540 0
PF3W511 0
1 V 5 V
Set A and B to the values shown
in the table on the left.
Centralised control of distributed
pressure switches is possible.
Z/ISE20
PSE3 A
Centralised
pressure control
Sensor Monitor
Easy Fitting of Connector
10 units
Analogue Free Span Function
For the displayed value, the analogue span point
(5 V, 20 mA) can be changed within the rated
pressure range of 10 to 105 % ∗
Analogue output
5 V
20 mA
1 V
5 V
4 mA
20 mA
0 % 10 %
∗1 Up to the upper limit of the display/set pressure range.
[Application example]
To output 5 V from the pressure controller at 0.75 MPa, using
B
a sensor that outputs 1 to 5 V at 0 to 1 MPa.
4
Analogue output
16
5 V
40
100
1 V
0 MPa
PSE3 A
PSE5
PSE3 A
PSE300A
Power supply/output
lead wire with connector
Sensor connector
1
.
Changeable range
At the time of shipment
100 % 105 %
Adjustment point: 0.75 MPa , 1 MPa
Change
At the time
of shipment
0.75 MPa 1 MPa
For main line
PSE3
Z/ISE20
