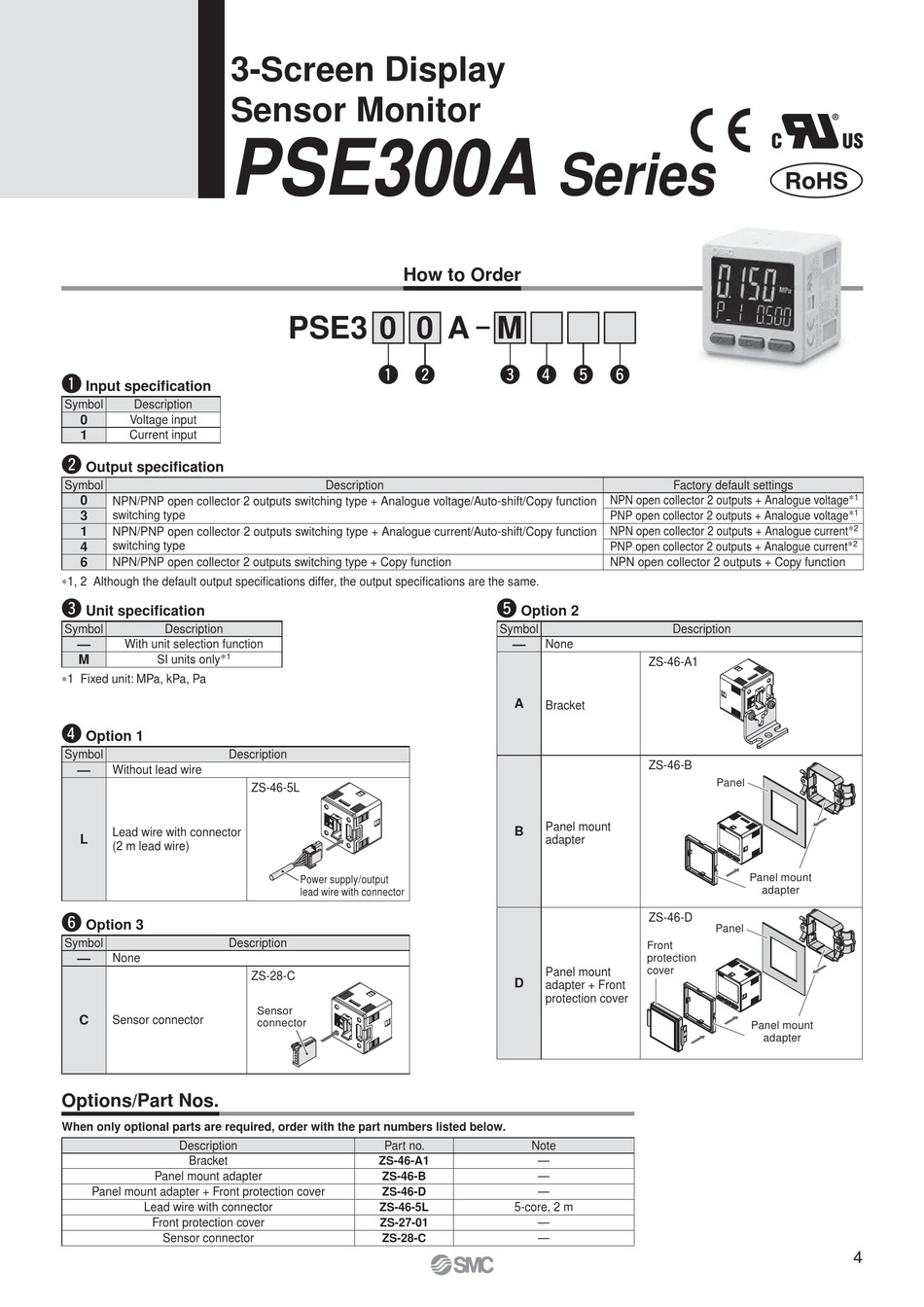

SMC Networks PSE300A Series Manual page 5

3-Screen Display
Sensor Monitor
PSE300A
q
Input specifi cation
Symbol Description
0
Voltage input
1 Current input
w
Output specifi cation
Symbol
0
NPN/PNP open collector 2 outputs switching type + Analogue voltage/Auto-shift/Copy function
3 switching type
1
NPN/PNP open collector 2 outputs switching type + Analogue current/Auto-shift/Copy function
switching type
4
6
NPN/PNP open collector 2 outputs switching type + Copy function
∗1, 2 Although the default output specifi cations differ, the output specifi cations are the same.
e
Unit specifi cation
Symbol Description
— With unit selection function
SI units only ∗
1
M
∗1 Fixed unit: MPa, kPa, Pa
r
Option 1
Symbol Description
— Without lead wire
Lead wire with connector
L
(2 m lead wire)
y
Option 3
Symbol Description
— None
C
Sensor connector
Options/Part Nos.
When only optional parts are required, order with the part numbers listed below.
Description
Bracket
Panel mount adapter
Panel mount adapter + Front protection cover
Lead wire with connector
Front protection cover
Sensor connector
How to Order
PSE3 0 0
q w
Description
ZS-46-5L
Power supply/output
lead wire with connector
ZS-28-C
Sensor
connector
Part no.
ZS-46-A1
ZS-46-B
ZS-46-D
ZS-46-5L
ZS-27-01
ZS-28-C
Series
A M
e r t y
NPN open collector 2 outputs + Analogue voltage ∗
PNP open collector 2 outputs + Analogue voltage ∗
NPN open collector 2 outputs + Analogue current ∗
PNP open collector 2 outputs + Analogue current ∗
NPN open collector 2 outputs + Copy function
t
Option 2
Symbol
— None
A
Bracket
Panel mount
B
adapter
Panel mount
D
adapter + Front
protection cover
Note
—
—
—
5-core, 2 m
—
—
Factory default settings
Description
ZS-46-A1
ZS-46-B
Panel
Panel mount
adapter
ZS-46-D
Panel
Front
protection
cover
Panel mount
adapter
1
1
2
2
4
