PSE300A
Series

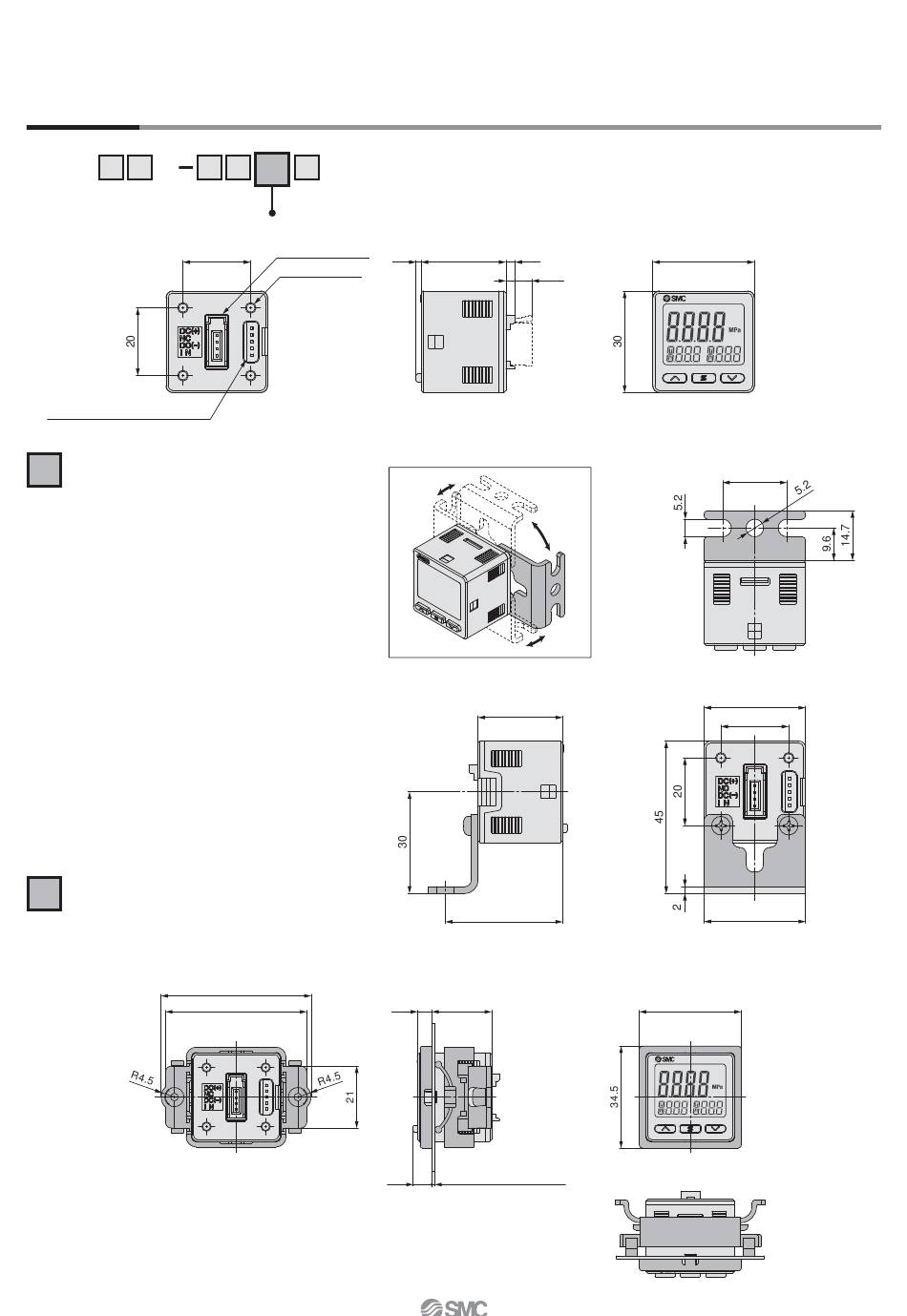

Dimensions
PSE3 A
Power supply/Output connector
A
Bracket
(Part no.: ZS-46-A1)
B
Panel mount adapter
(Part no.: ZS-46-B)
7
Option 2
Sensor connector
20
4 x Ø 2.6
Depth: 7 or less
50.8
47.8
1.5 25 2.7
(7.7)
* The bracket confi guration allows for
mounting in four orientations.
25
34.6
4.8 20.2
6.3 Panel thickness: 0.5 to 7
30
19
30
20
30
34.5
