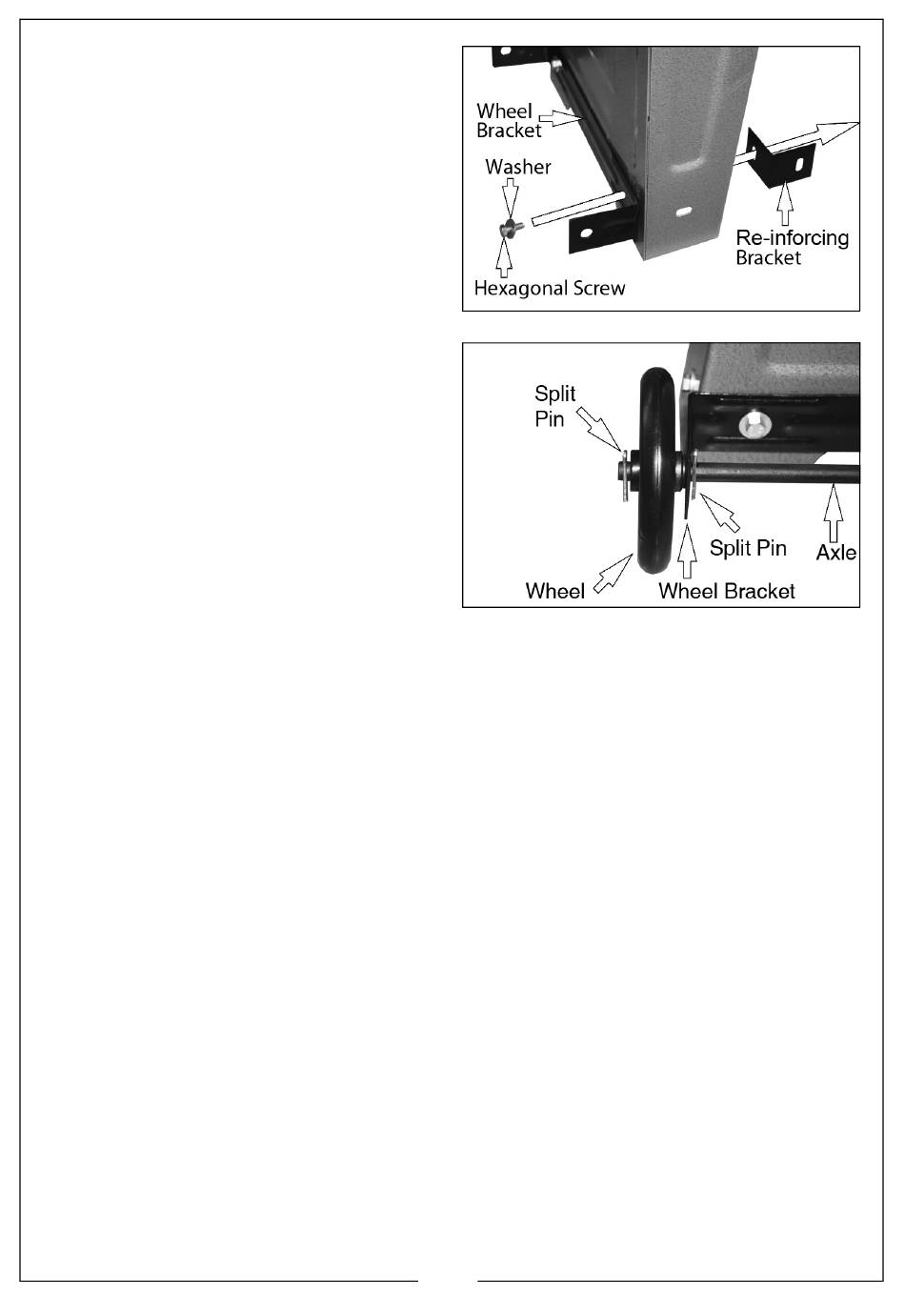

2. Attach the wheel bracket to the
base of the left leg using the nuts,
bolts and washers, together with a
pair of re-inforcing brackets fitted
inside the leg.
3. Pass the axle through the holes at
the ends of the bracket, and insert
the split pins into the holes in the
axle nearest the frame.
4. Fit the wheels to the axle and
secure with the remaining split
pins.
5. Add the two remainiing re-
inforcing brackets to the bottom
of the other legs.
6. Finally, carry out a thorough
check to ensure that all parts are
secure and correctly assembled.
When the machine is lifted using the
handle it will automatically pivot on the wheels, allowing the machine to be
maneuvered around the workshop.
