Chapter 7 – XVME-978/2 PCI Ethernet/SCSI Controller Module
Installation

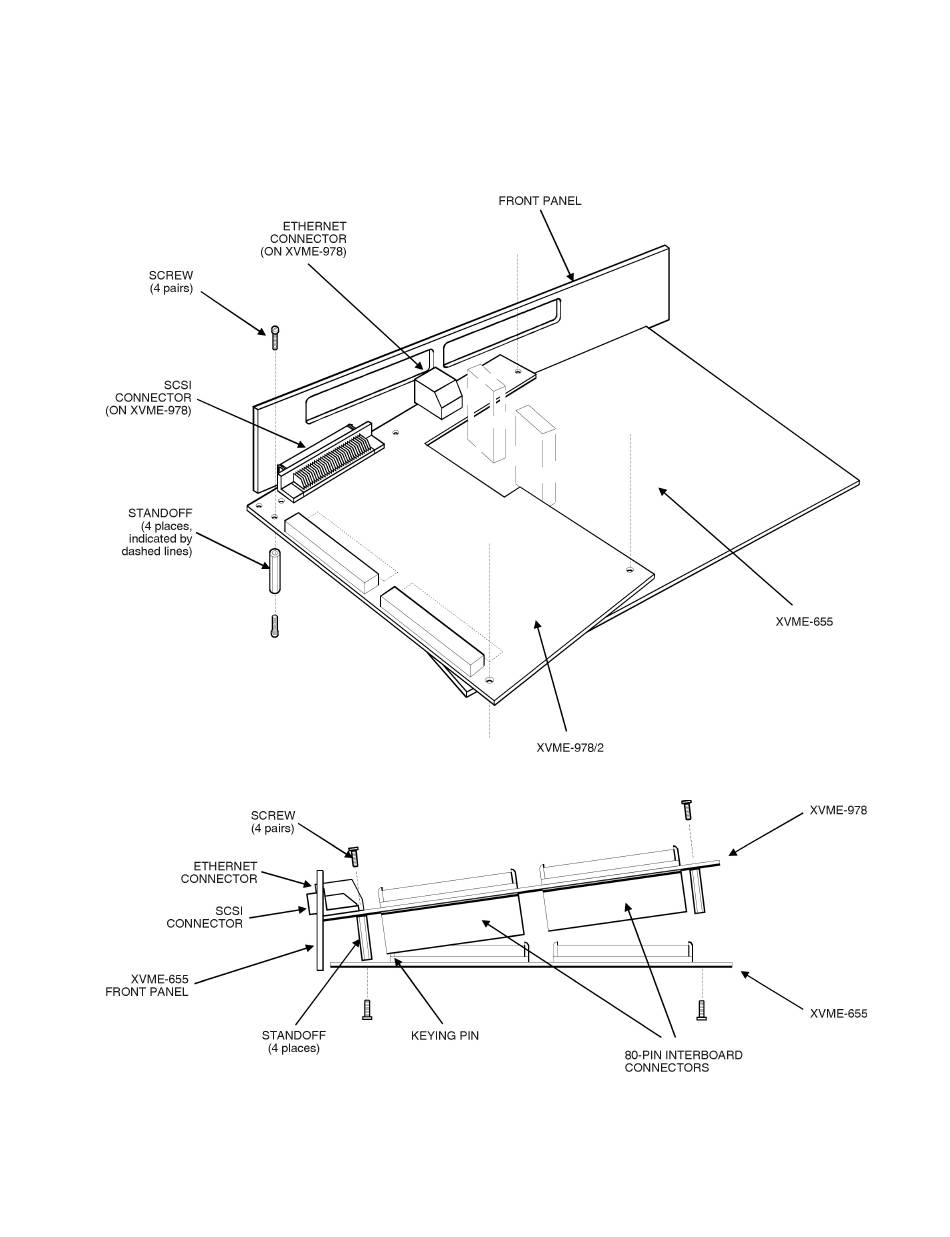

Figure Chapter 7 -2 illustrates how the XVME-978/2 module connects to the XVME-655
processor module.
Figure Chapter 7 -2. XVME-978/2 Installation
7-2
