Option Description
Slave Memory Size Determines the amount of dual-access memory that is available to external
VMEbus maters when the Slave Address Space option is set to "Extended." If
the Slave Address Space option is set to "Standard," the slave memory size is
fixed at 4 Mbytes. The slave memory size cannot be more than the total memory
size. The default is 4 Mbytes.
Slave Address Sets the VMEbus address of the XVME-655 dual-access RAM. When the Slave
Address Space option is set to VMEbus Standard (A24), the dual-access
memory must be located on a 4-Mbyte boundary and the upper two hexadecimal
digits of the slave address are ignored. When the Slave Address Space option is
set to VMEbus Extended (A32), the slave address must be a multiple of the
slave memory size. The default is "AA4."

Interrupt Signals Submenu

Use this submenu configure the processor board's VMEbus interrupt signals.
PhoenixBIOS Setup–Copyright 1985-95 Phoenix Technologies Ltd.
Interrupt Signals
VMEbus ACFAIL ANMI:
VMEbus SYSFAIL ANMI:
VMEbus BERR ANMI:
VMEbus IRQ1:
VMEbus IRQ2:
VMEbus IRQ3:
VMEbus IRQ4:
VMEbus IRQ5:
VMEbus IRQ6:
VMEbus IRQ7:
­¯
F1 Help Select Item
¬ ®
ESC Exit Select Menu
Option
VMEbus ACFAIL ANMI
VMEbus SYSFAIL ANMI
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
-/+ Change Values
Enter Select } Sub-Menu

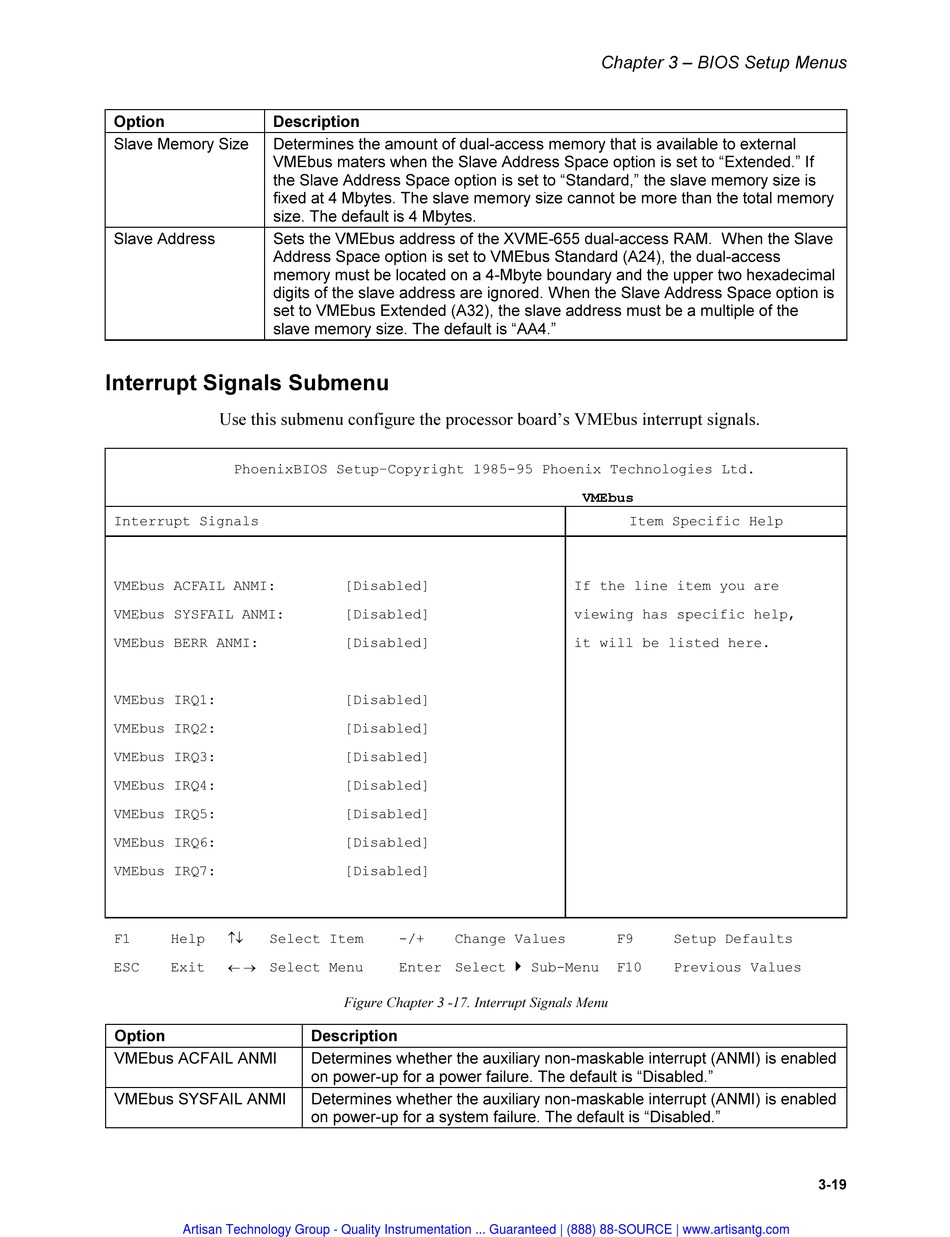

Figure Chapter 3 -17. Interrupt Signals Menu
Description
Determines whether the auxiliary non-maskable interrupt (ANMI) is enabled
on power-up for a power failure. The default is "Disabled."
Determines whether the auxiliary non-maskable interrupt (ANMI) is enabled
on power-up for a system failure. The default is "Disabled."
Chapter 3 – BIOS Setup Menus
VMEbus
Item Specific Help
If the line item you are
viewing has specific help,
it will be listed here.
F9 Setup Defaults
F10 Previous Values
3-19
