VMEbus Setup Menu

Use this menu and its submenus to configure the XVME-655's VMEbus master and
slave interfaces, auxiliary NMIs, and VMEbus interrupt handler.
You can configure the following items:
·
System controller
·
Master interface
·
Slave interface
·
Interrupt signals
PhoenixBIOS Setup–Copyright 1985-95 Phoenix Technologies Ltd.
Main Advanced
}System Controller:
}Master Interface:
Slave Interface:
Slave 1 & 2 Operational
Mode:
}Slave 1:
}Slave 2:
}Slave 2:
}Slave 4:
}Interrupt Signals
­¯
F1 Help Select Item
¨ Select Menu
ESC Exit
Option
Slave 1 & 2 Operational Mode
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Security VMEbus
[Off]
[Programmable]
[Off]
[Off]
[Off]
[Off]
-/+ Change Values
Select } Sub-Menu
Enter

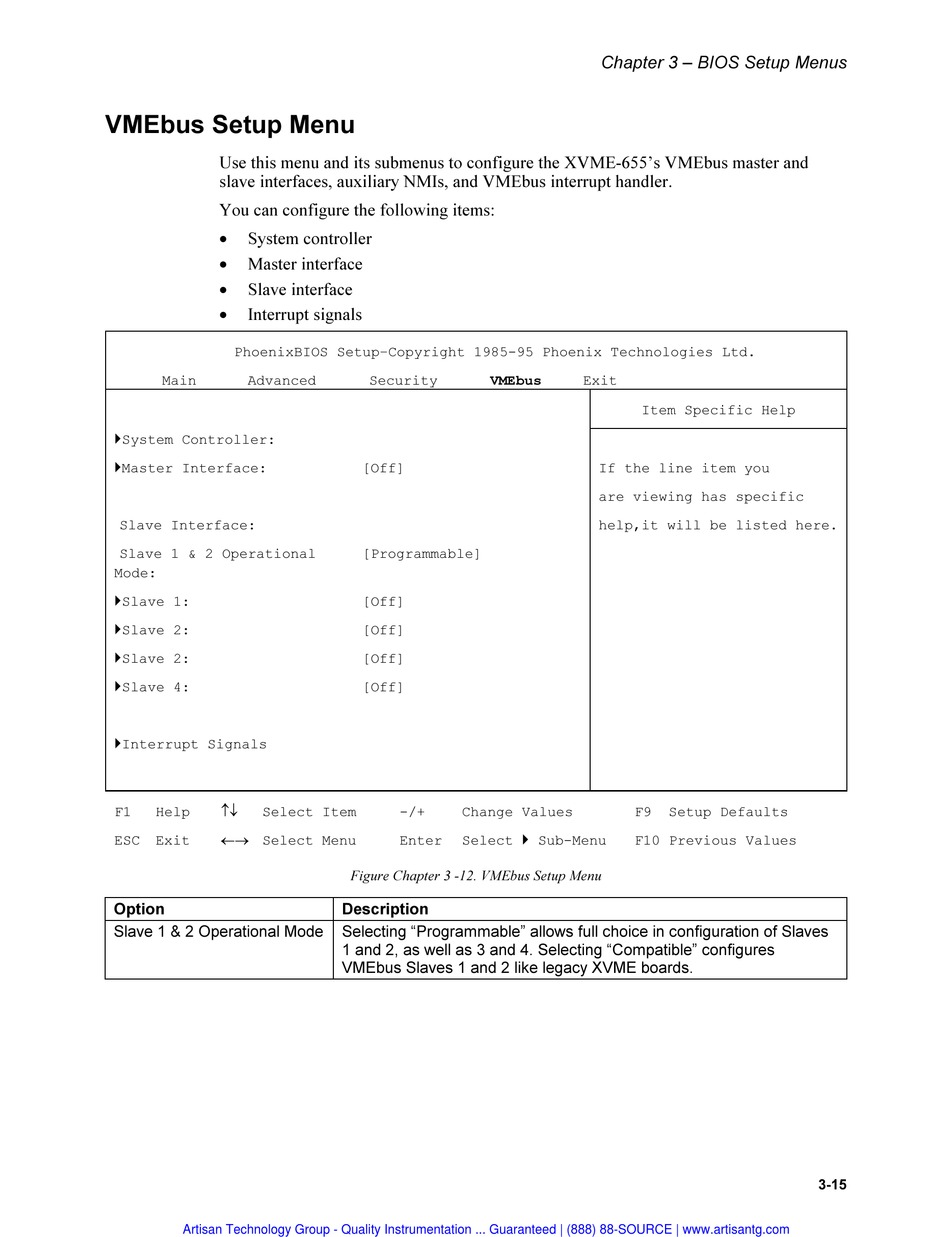

Figure Chapter 3 -12. VMEbus Setup Menu
