System Controller Submenu

The XVME-655 automatically detects if the board is in the system controller position
(the left-most slot of the VMEbus chassis). This condition controls whether system
resources will be provided by the XVME-655 or another VMEbus processor. System
resources are VMEbus Arbiter, BERR timeout, SYSCLK, and IACK daisy chain driver.
These resources must be provided by the module installed in the system controller slot.
You cannot change the field that reports the status of the XVME-655's system resources.
PhoenixBIOS Setup–Copyright 1985-95 Phoenix Technologies Ltd.
System Controller
System Resources:
BERR Timeout:
­¯
F1 Help Select Item
¨ Select Menu
ESC Exit
Option Description
System Resources Enables or disables system resources. This field is not user configurable; it is
automatically detected by the board.
BERR Timeout
Sets the VMEbus error timeout. Choices are 16ms, 32ms, 64ms, 128ms, 256ms,
512ms, 1024ms, and Disabled. The default is 64ms.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Note
The BERR timeout is the VMEbus error time
Disabled
[64µs]
-/+ Change Values
Enter Select } Sub-Menu

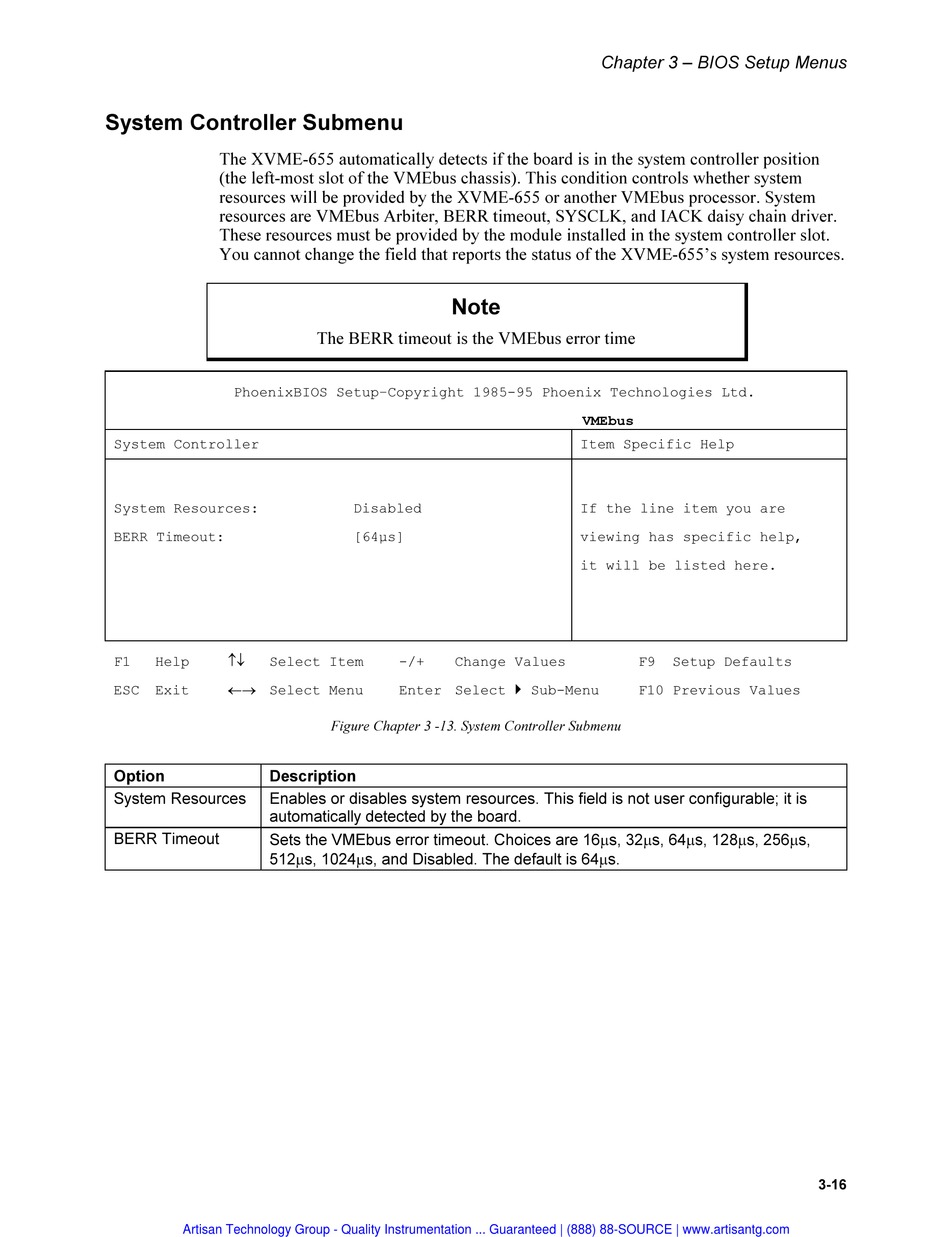

Figure Chapter 3 -13. System Controller Submenu
