4.5 Buttons, Switches and Jumpers

See "cPCI-6525 Front Panel" on page 21 and "Board Layout -

Front" on page 19 for switch locations.

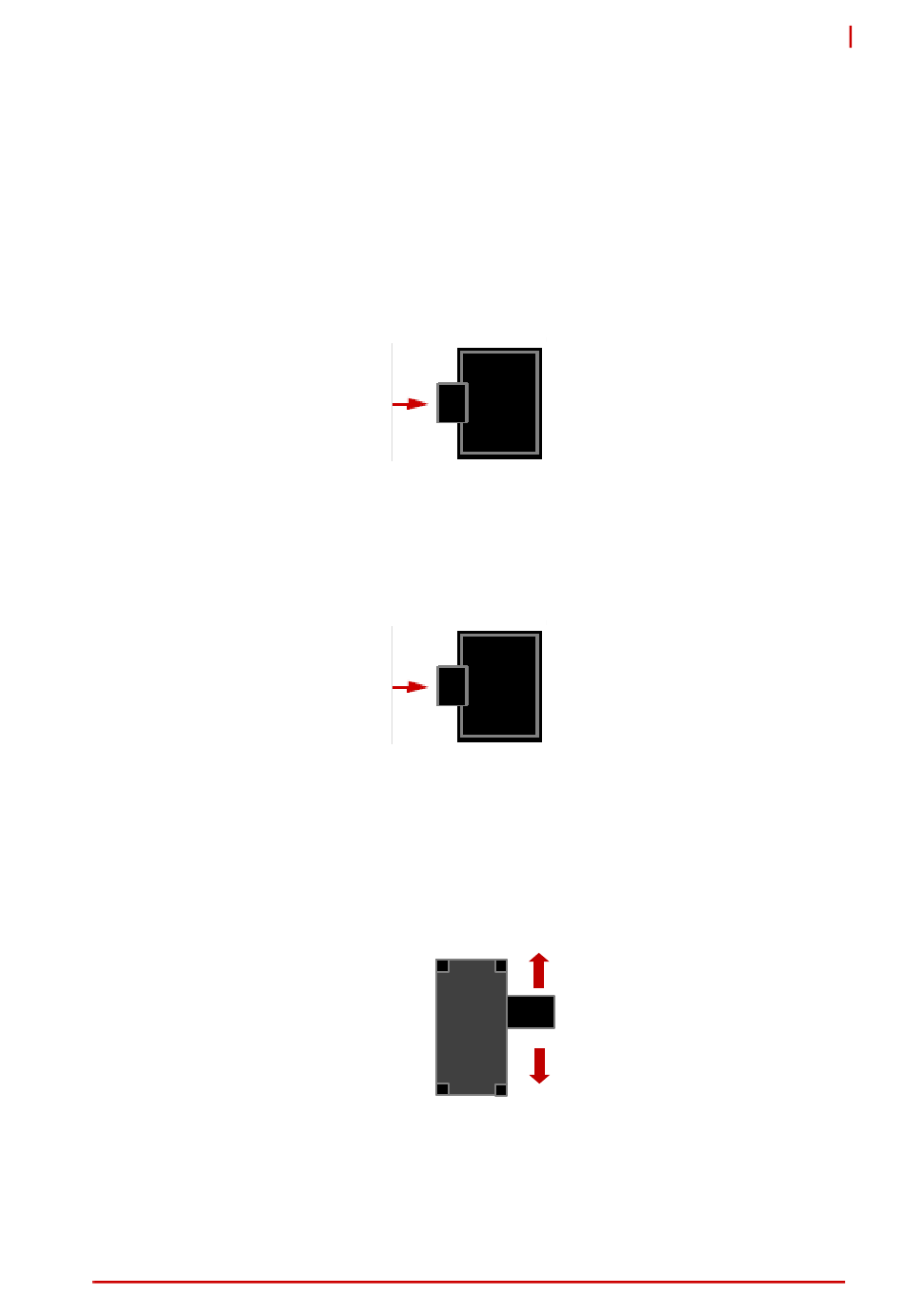

System Reset Button

The cPCI-6525 has a system reset button on the front panel.

See "cPCI-6525 Front Panel" on page 21 for the button location.

Load BIOS Default Button (SW1)

Press switch SW1 to load the default BIOS settings.

PCIe x16/x8 Selection Jumper (SW9)

Switch SW9 sets the PCI Express signals on J4 to PCIe x16 (UP,

default) or 2x PCIe x8 (DOWN).
