Vesda Filter - HP Performance Optimized Datacenter 20c Maintenance And Service Manual

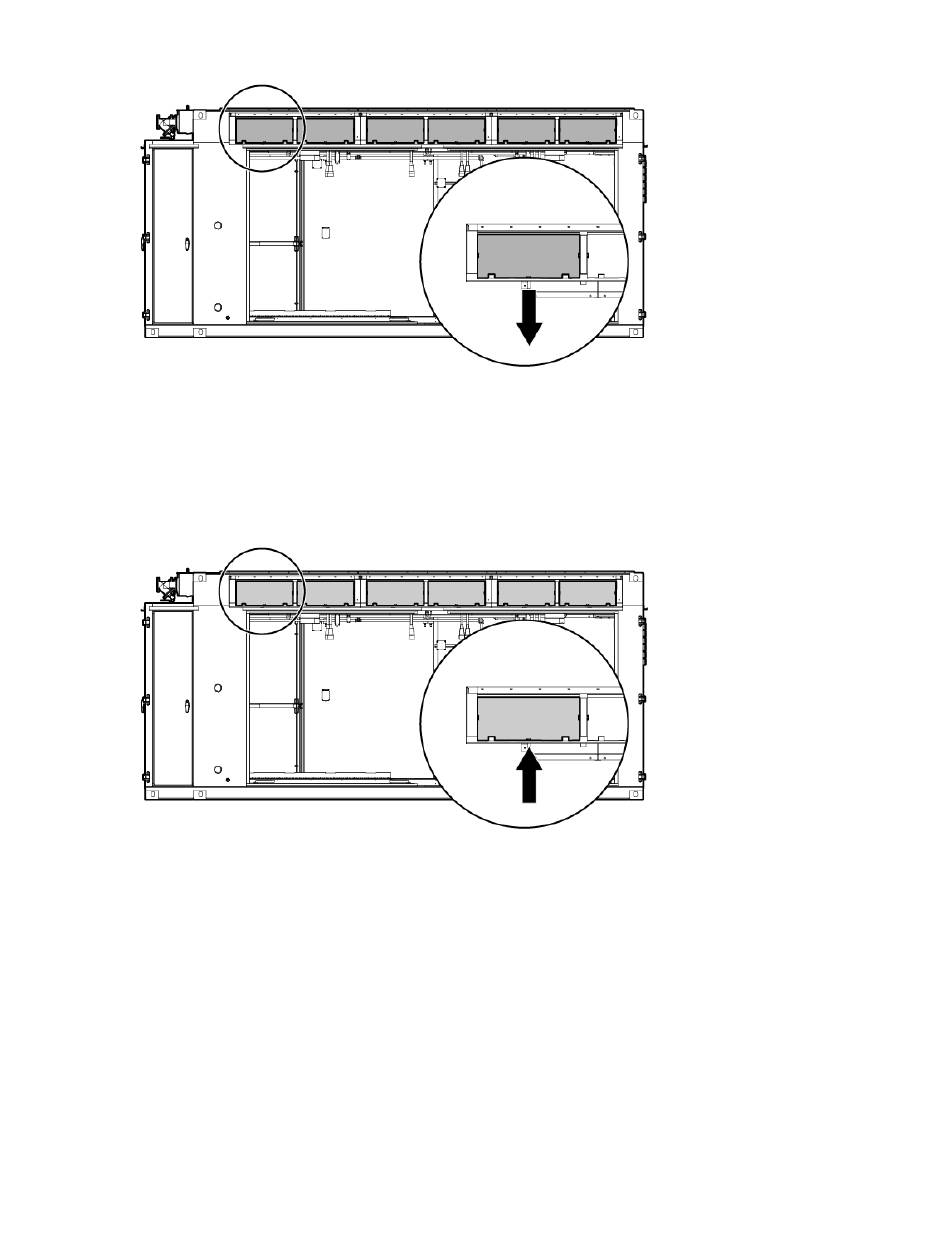

Pull the filter down through the frame channels to remove it.
2.
Replacing the heat exchanger air filter
Angle the filter to position the top corners in the frame channels, and then push the filter up to the top of
1.
the frame.
Push in the bottom corners of the filter until the locking tabs engage and the filter clicks into place.
2.

VESDA filter

The VESDA filter sensor notifies you through the ECS when a filter must be changed. HP recommends
periodically inspecting and changing each VESDA filter. A VESDA filter can be replaced during normal HP
POD 20c operation.
You need a Phillips-head screwdriver for installation.
Removal and replacement procedures 36
