Replacing the cold aisle temperature sensor
Reconnect the wires to the cold-aisle temperature sensor.
1.
Reconnect the wires.
2.
Re-attach the cold-aisle temperature sensor housing to the wall using the two retaining screws.
3.

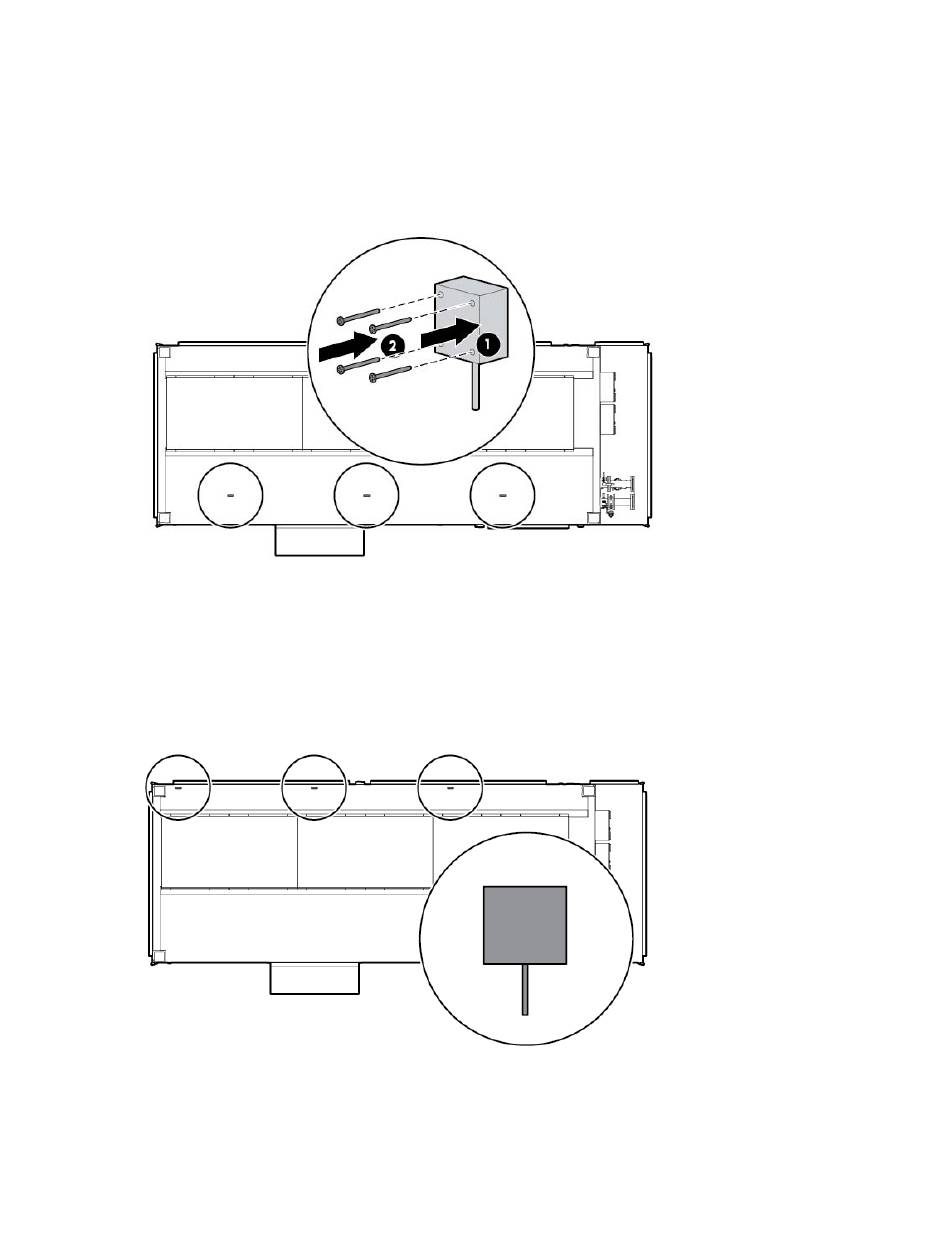

Replace the cold-aisle temperature sensor cover (1).
4.
Replace the four screws that secure the cold-aisle temperature sensor cover (2).
5.

Temperature sensors (hot aisle)

The HP POD 20c contains three temperature sensors in the hot aisle.
You need a screwdriver to remove and replace the hot aisle temperature sensors.
