Temperature sensors (cold aisle)

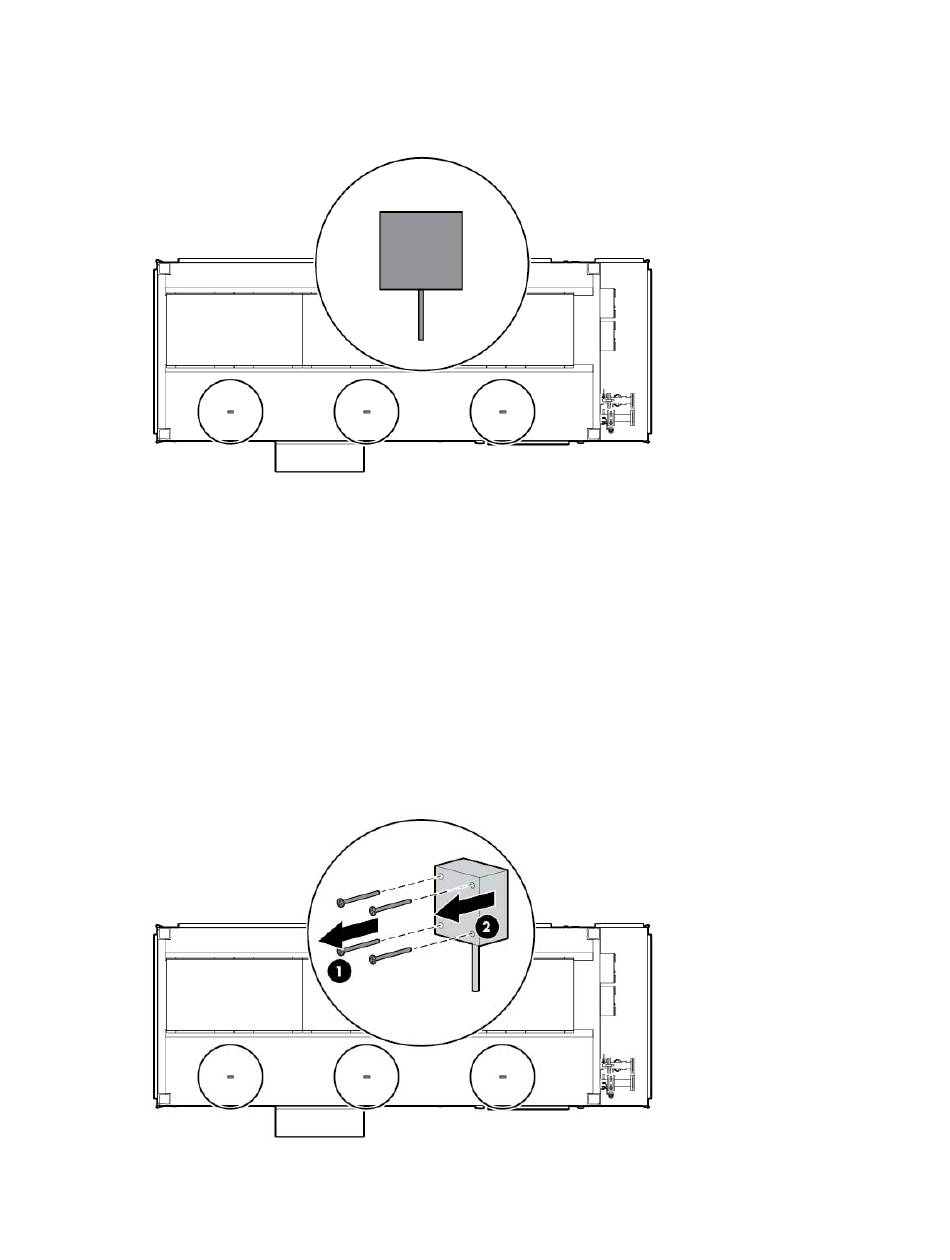

The HP POD 20c contains three temperature sensors in the cold aisle. The temperature sensors are bolted to
the wall.
You need a Phillips-head screwdriver for installation.
Removing the cold aisle temperature sensor
Remove the four screws (1) that secure the cold-aisle temperature sensor cover, and then remove the
1.
cover (2).
Label the cold-aisle temperature sensor wires or take a picture to remember which wires to reconnect
2.
later.
Disconnect the wires.
3.
Remove the two retaining screws, and then remove the cold-aisle temperature sensor housing from the
4.
wall.
