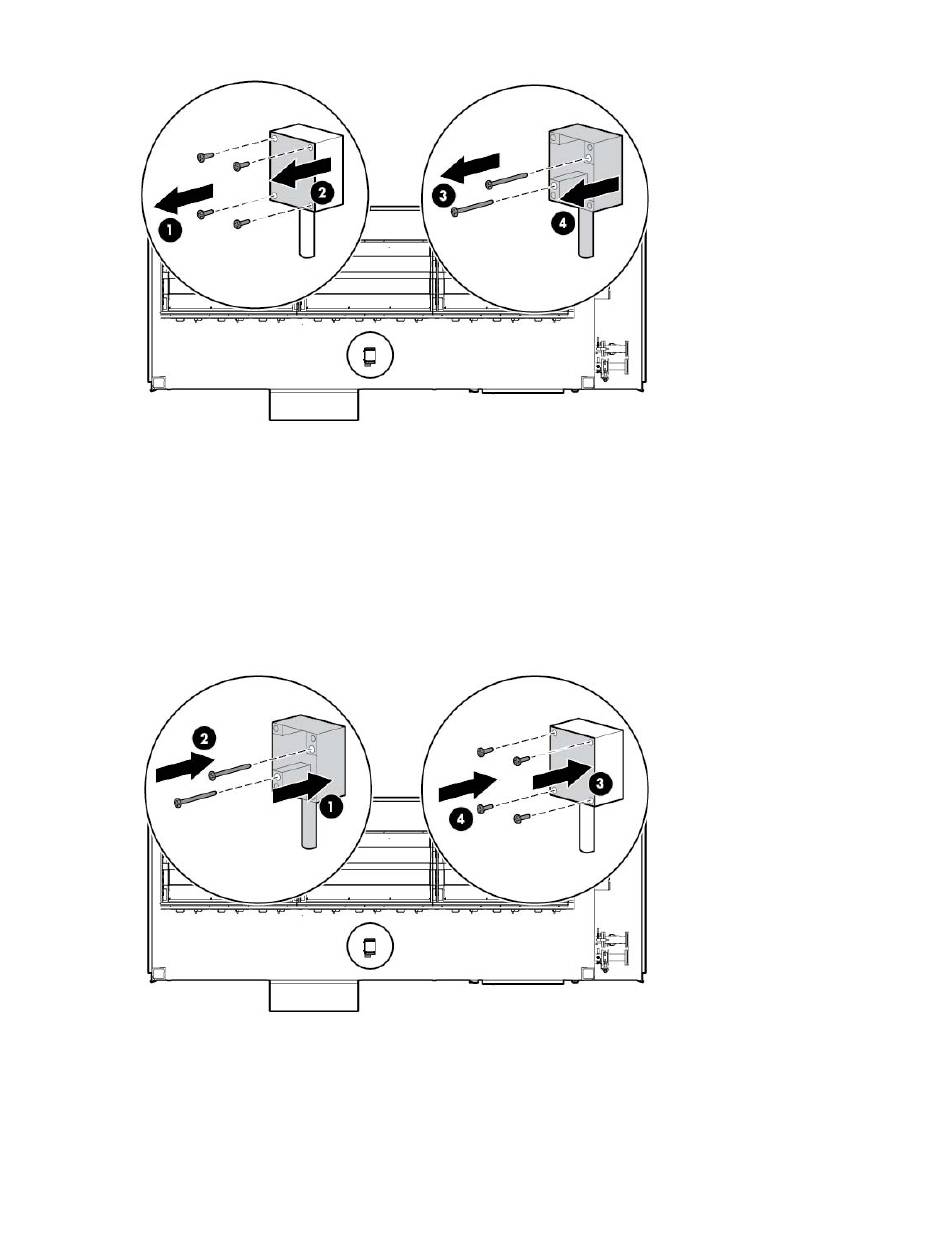

Remove the two retaining screws, and then remove the humidity sensor housing from the wall (4).
5.
Replacing the humidity sensor
Re-attach the humidity sensor housing to the wall (1).
1.
Replace the two self-tapping screws (2).
2.
Reconnect the wires to the hot-aisle humidity sensor.
3.
Replace the sensor cover (3).
4.
Replace the four screws that secure the sensor cover (4).
5.
Removal and replacement procedures 63
