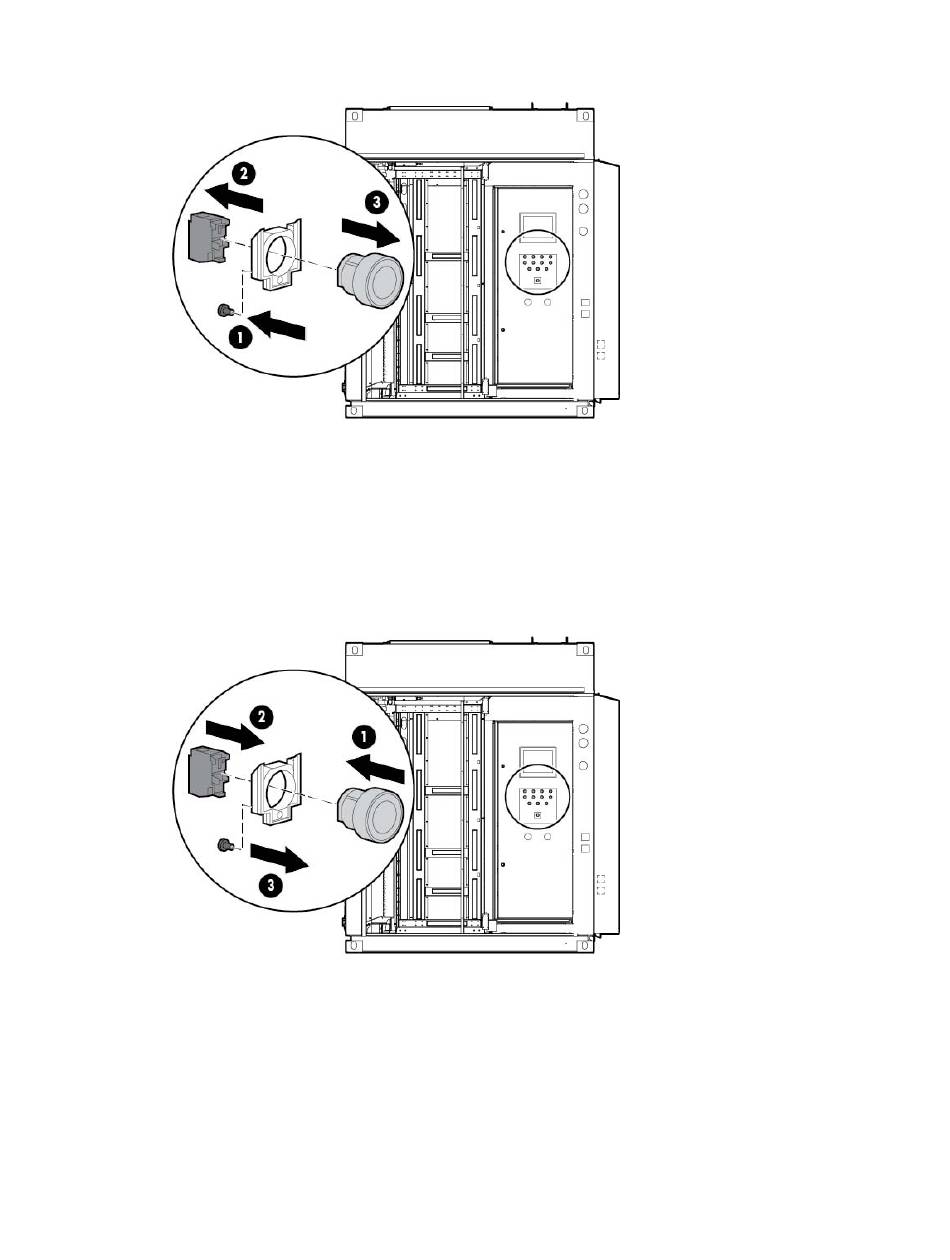

Pull the ECS push button, selector switch, or LED light out of the mounting base (3).
3.
Replacing the ECS EPO LED indicators
Insert the ECS push button, selector switch, or LED light into the mounting base (1).
1.
Attach the contact block to the mounting base (2).
2.
Attach the screw to the mounting base (3).
3.

Fluid system components

The removal of any HP POD 20c installed chilled water fluid system components that compose or penetrate
the physical integrity of the fluid system requires the following:
•
Complete shutdown of the HP POD 20c
•
Isolation of the HP POD 20c from the site chilled water system
Removal and replacement procedures 44
